Spectrophotometers
A spectrophotometer is a piece of equipment used to measure the absorbance of a sample, as a function of the wavelength of electromagnetic radiation. There are several types of spectrophotometers. These are grouped according to the type of sample analyzed; There are atomic absorption and molecular absorption (commonly known as a UV-VIS spectrophotometer).
Spectrophotometers are used in laboratories to determine what the beam of electromagnetic radiation or light is and thus identify, qualify and quantify what its intensity is like. In the same way, it allows determining its efficiency, sensitivity, resolution and spectral range. Which will depend on the variabilities of the design and the choice of the optical components it contains.
Types of laboratory spectrophotometers a Laboratory may need
Benchtop Spectrophotometer
Benchtop color haze meter is developed by Kalstein independently with proprietary intellectual property. This machine adopts transmittance optical geometry d/0 (diffused illumination, 0-degree viewing angle) which confirms to CIE 15 standard. It can also realized the the optical geometry 0/0 (parallel illumination, 0-degree viewing angle).
Color haze meter uses 360~780nm composite full spectrum LED light source (which is closed to the spectrum of D65), and it can realize intervals 10nm spectrum by precision concave grating and 256 Image Element CMOS Sensor. Accordance with industry-standard, YR053409 will give the accuracy result for the measurement of haze, transmittance, chromaticity, color difference, WI, YI, Pt-Co Index and Gardner index etc. It is wildly used in the field of glass processing, plastic processing, film manufacturing, display screen processing and packaging industry, liquid pharmaceutical analysis, laboratory etc.
Portable Benchtop Spectrophotometer
In Kalstein you can find the ideal spectrophotometers for your Laboratory
Grating Spectrophotometer with 20mm Aperture YR05503
Kalstein launched new product YR05503 45/0 Grating Spectrophotometer with 20mm Aperture for Traffic Signs...
Double beam UV / VIS spectrophotometer c- YR01863 // YR01865
YR01863//YR01865 series are wide screen double beam spectrophotometer...
Ultraviolet Visible UV / VIS Spectrophotometer
The instrument uses a lead screw structure so that the instrument wavelength accuracy and wavelength resolution can be greatly improved...
Double Beam UV / Vis Spectrophotometer
Dual optical path, dual beam optical system, dual detector, with imported high performance grating, lower stray light, higher stability...
Our Best Selling Spectrophotometer
Kalstein launched new product YR05503 45/0 Grating Spectrophotometer with 20mm Aperture for Traffic Signs. It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually.
Kalstein new model YR05503 is special design with 20mm aperture for traffic signs, and contains GB 2893 and GB/T 18833 standard color, good to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It is used for accurate analysis and transmission of laboratory color, also for Fluorescence sample color measurement .
Model | YR05503 |
Illumination/Observation system | 45/0(45 ring-shaped illumination, vertical viewing); |
Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893、GB/T 18833 | |
Features | 20mm aperture special design for traffic signs , It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually. |
It is used for accurate analysis and transmission of laboratory color, also for Fluorescence sample color measurement . | |
Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control. | |
Integrating Sphere Size | Φ48mm |
Light Source | Combined LED Light, UV Light |
Spectral separation device | Concave Grating |
Detector | 256 Image Element Double Array CMOS Image Sensor |
Wavelength Range | 400~700nm |
Wavelength Pitch | 10nm |
Half Bandwidth | 10nm |
Reflectance Range | 0~200% |
Measuring Aperture | Φ20mm |
Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy |
Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter) |
Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter), |
YI(ASTM D1925,ASTM 313), | |
MI (Metamerism Index), | |
Staining Fastness, Color Fastness, Color Strength, Opacity,Supporting Colorimetric Polygon Tolerance | |
Observer Angle | 2°/10° |
Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
Display Data | Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset |
Measurement Time | About 1.5s |
Repeatability | Spectral reflectance: Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%) |
Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
Inter-instrument Error | Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
Measurement mode | Single Measurement, Average Measurement(2-99) |
Size(L*W*H) | 184*77*105mm |
Weight | About 600g |
Power source | Li-ion battery. 5000 measurements within 8 hours |
Illuminant Life Span | 5 years, more than 3 million times measurements |
Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
Interface | USB, Bluetooth 4.0 |
Data memory | Standard 1000 Pcs, Sample 30000 Pcs |
Language | Chinese,English |
Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m |
Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation)) |
Standard Accessory | Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover. |
Optional Accessory | Micro Printer, Powder Test Box, Universal test components, Locating Plate |
Notes: The specifications are subject to change without notice. |
Analysis of the best Spectrophotometers for your Laboratory
How does a spectrophotometer work?
The spectrophotometer is a piece of equipment frequently used in laboratories...
The spectrophotometer
A spectrophotometer is an instrument that measures how much light a substance absorbs. Measures the amount of photon...
When to calibrate my spectrophotometer?
The spectrophotometer is a piece of equipment used in the laboratory in order to...
What are the uses of a spectrophotometer?
Spectrophotometry quantifies the concentration of a specific substance...
Catalog of models of Spectrophotometers on offer
-
Plus 45/0 8mm Spectrophotometer YR05505
-

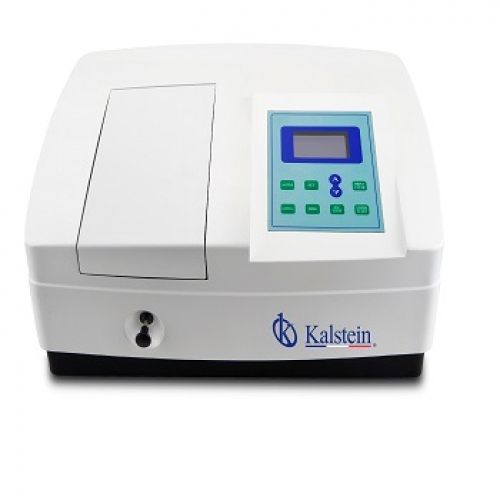

UV / VIS Spectrophotometer – YR01859 – YR01860 – YR01861
Select options -
Portable Desktop Spectrophotometer YR05485
-

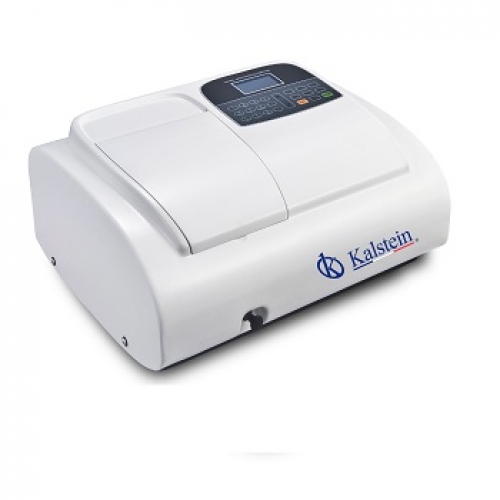

Visible Spectrophotometer – YR01846
-
Grating Spectrophotometer with 20mm Aperture YR05503
-
Grating Spectrophotometer YR05494
-
Pulsed Xenon lamp Benchtop Spectrophotometer YR05475
-
Portable desktop spectrophotometer YR05486
Guides to becoming an expert in Spectrophotometers
How to keep your Spectrophotometer in good condition?
The spectrophotometer is one of the main diagnostic and research instruments developed by humans. It is used in the laboratory in order...
What is a Spectrophotometer? - Laboratory
A spectrophotometer is a device that is used in laboratories to determine what the beam of electromagnetic radiation or light is and...
What technology uses a Spectrophotometer?
A spectrophotometer is a laboratory equipment used to measure the absorbance of a sample, as a function of the wavelength...
Advantages of Spectrophotometer for detecting impurities in food
Food that reaches the consumer has already gone through a journey from the producer, packaging, distribution and placing on the shelf. During this process, food is exposed to foreign agents. These impurities are called contaminants, which...
Videos of Spectrophotometers in operation
In this section you can find, our Spectrophotometer in operation, packaged, receiving service, etc...
Spectrophotometer operating
Kalstein launched new products YR053429 // YR053431 45/0 grid spectrophotometer with 20 mm aperture for traffic signals. It is used to measure the brightness factor and color coordinates of traffic signals, markings and reflective films. s. Contains the standard colors GB 2893 and GB/T 18833. You can customize the rectangular tolerance of polygons manually.
Kalstein's new model YR053429 // YR053431 is a special design with 20mm aperture for traffic signals and contains GB 2893 and GB/T 18833 standard colors, good for measuring the brightness factor and color coordinates of traffic signals, markings and reflective films. It is used for accurate laboratory color analysis and transmission, also for fluorescence sample color measurement.
