Hotplates and Hotplate Stirrers
The multi-position heating plate is a desktop and portable laboratory instrument that adapts to multiple processes requiring temperature and shaking frequently used in the laboratory, it can be available in multi-position models of 2, 4 and 6 positions. That is, it is a device that provides simultaneous heating and shaking options, totally ideal for mixing several chemicals at the same time, this instrument is used to mix solutions from water to glycerin 50% together with a magnetic bar in small open or closed containers. It is an ideal equipment for laboratories that need to do multiple processes at once.
As for its characteristics we can say that it is a equipment that has electrical heating elements resistant to corrosion and chemical and mechanical attacks. It is very useful for heating containers with liquids, glass materials, or the contents within them, evenly and controlled.
Types of Hotplates a Lab May Need
Thermostat Water Bath Magnetic Stirrer Mixer
Magnetic stirrers are often used in chemistry and biology. They are preferred over gear-driven motorized stirrers ...
Nine – Point Magnetic Stirring Hot Plate for Laboratory
Magnetic stirrers are often used in chemistry and biology. They are preferred over gear-driven motorized stirrers...
Multi-Position Thermostatic Hotplate Magnetic Stirrer
Digital Display temperature and speed, Heating temperature: Rt-380 Degree and mixing speed :100-1800 RPM...

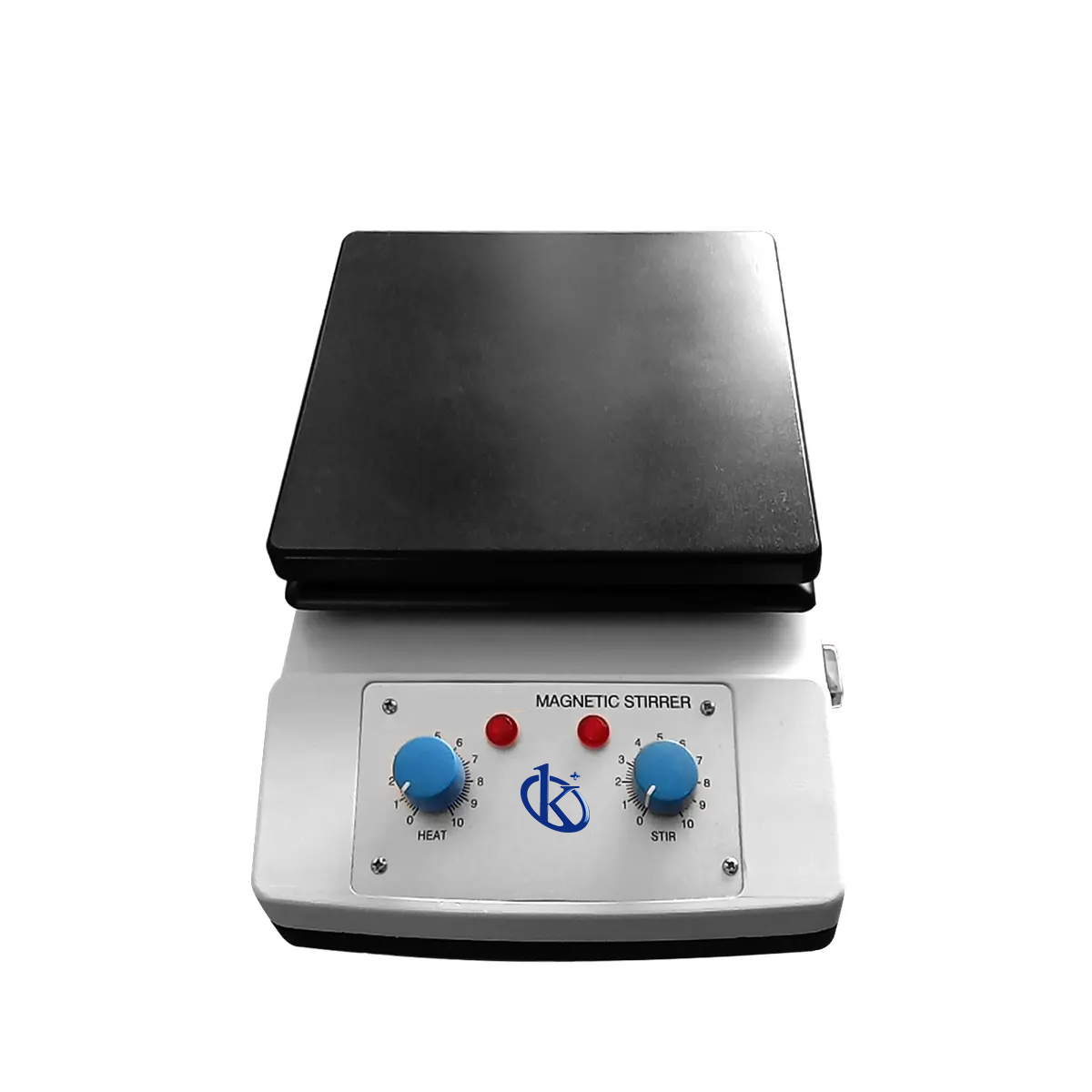

Laboratory Hot Plate Magnetic Stirrer YR02936
Secondary heat insulation plate prevents heat loss and eliminates heat damage to electronic components...

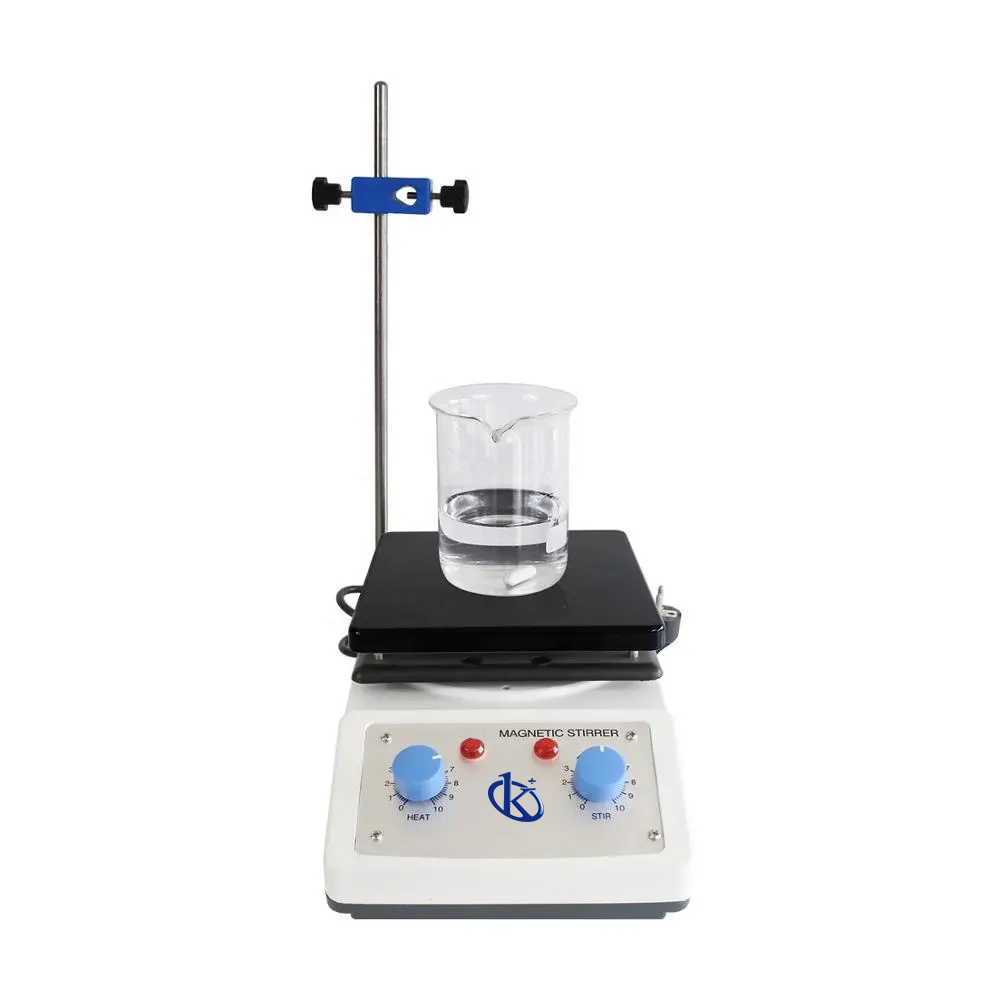

Our Best Selling Heating Plate
Magnetic stirrers are often used in chemistry and biology. They are preferred over gear-driven motorized stirrers because they are quieter, more efficient, and have no moving external parts to break or wear out (other than the simple bar magnet itself). Because of its small size, a stirring bar is more easily cleaned and sterilized than other stirring devices. They do not require lubricants which could contaminate the reaction vessel and the product. They can be used inside hermetically closed vessels or systems, without the need for complicated rotary seals. Magnetic stirrers may also include a hot plate or some other means for heating the liquid.
Model | YR02934 |
Working Area (mm) | 180 x 180 |
Top Plate Dimension(Inch) | 7.09 x 7.09 |
Temperature Control | PID Auto control . |
Top Plate Shape | Round or Square |
Top Plate Material | Black or white ceramic |
Temperature Range for machine | Ambient to 380 degree. |
Max Temperature for top plate | 325 degree |
Top Material | White ceramics and Black Ceramic are Both available . |
Temperature Display (°C ) | Digital Display |
Temperature control | PID Auto control |
Temperature accuracy | |
Stir Speed | 100- 1800 RPM |
Stir Display | Scale |
Stir speed accuracy | |
Permissible Ambient Temperature | Ambient Temperature to 40°C |
Voltage | 160 – 240V , or 110- 130V. |
Heating Power supply (w) | 550 |
Motor Power supply | 40 W.DC 20 |
Machine power supply | 600 |
Stirring Flask Capacity (ml) | 50ML-5L |
Overall Dimensions (mm) ( L × W × H ) |
391 x 245 x 120 |
Packing Dimension (mm) | 440 x 290 x 170 |
Shipping Weight (kg) | 5.5kg |
Shell material | Time molding waterproof and dustproof shell with Anti-static paint |
Analysis of the best Hotplates and Hotplate Stirrers for your laboratory
Practical use of hotplates in the laboratory
The practical use of heating plates in the laboratory is an essential tool for tasks designed to extract useful...
Protecting users of hotplates
Hotplates are very popular and are used in a wide variety of situations, from the home to industry, whether they are used for cooking food, in a machine shop for welding...
Care and maintenance of hot plates
Heating plates are one of the best ways to heat a room, however, they need to be properly cared for to maintain...
Health protection handling hot plates in the laboratory
Laboratory professionals, such as biologists, chemists and ophthalmologists, work with specialized ...
Catalog of models of Hotplates on offer
-

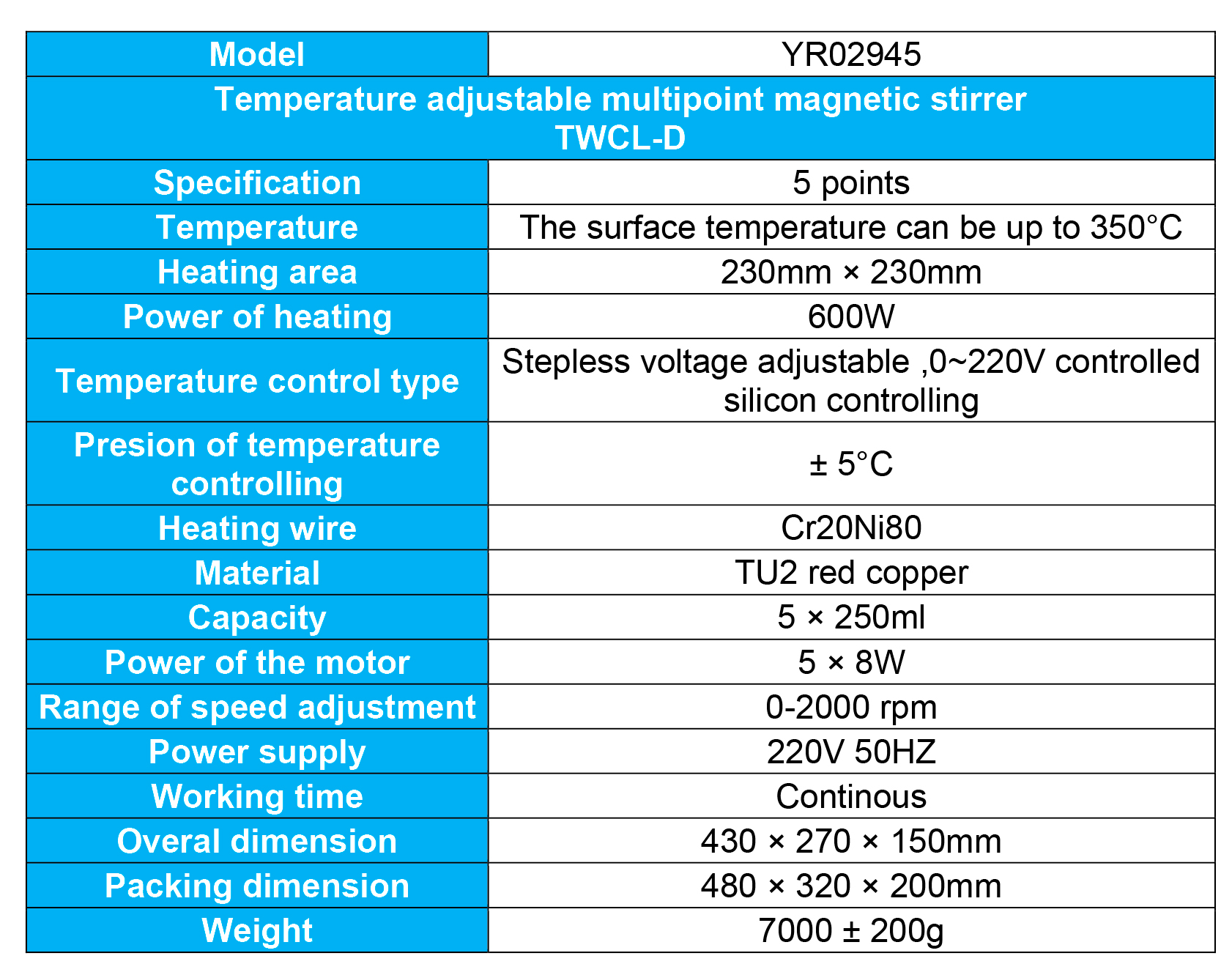

Five – Point Magnetic Stirring Hot Plate for Laboratory YR02945
-
Nine – Point Magnetic Stirring Hot Plate for Laboratory YR02946
-
Hot plate Laboratory Magnetic Stirrer YR02944
-
Digital Mini Laboratory Magnetic Hotplate Stirrer YR02937
-
Multi-Position Thermostatic Hotplate Magnetic Stirrer YR02947
-
Heater And Hotplate Thermostatic Digital Magnetic Stirrer YR02938
-
Digital Mini Laboratory Magnetic Hotplate Stirrer YR02941
-
Constant Temperature Digital Magnetic Stirrer With Hot Plate YR02942
Guides for you to become an expert in Hotplates and Hotplate Stirrers
How to maintain heating plates for best performance
Laboratories need precision equipment for their activities to run efficiently; one of the most common equipment ...
Recommended substances for the use of heating plates
Heating plates are a vital tool for many companies, providing the opportunity to heat their product or material or ...
Exploring the Latest Laboratory Hot Plate Innovations
In the search for solutions to keep laboratory processes safe, the latest advances in laboratory heating plate technology...
Maximizing the Potential of Hotplates in the Scientific Environment
Within the scientific field, hotplates have become a key element for numerous laboratory applications, ranging from the production of solutions and reactions, the adjustment of specific conditions, to use for incubation...
Hotplate Videos in operation
In this section you can find, our Heating Plate in operation, packaged, receiving service, etc.
Heating Plate Operating
Hotplate stirrers are benchtop electronic equipment that adapt to multiple processes that require temperature and stirring. That is, they are instruments that provide simultaneous heating and stirring options. This equipment is frequently used in biology laboratories, since it is used to mix liquids with each other or with powders, to produce solutions and different suspensions, due to its versatile design that allows stirring and heating at the same time. Reducing the time of use and reducing risks of contamination.
