Patient and Fetal Monitor
Due to the importance of this equipment, they are designed to offer facilities for use, observation and communication necessary for medical personnel, in addition to its structure and design, each parameter is divided into a simple and separate module that, if it presents any failure, can be replaced automatically. individually by a simple mechanical operation.
All the basic functions are easy to configure in a minimum of time, easy to connect to the patient, adjust the scales, alarm limits, select the information to be displayed including alarms, parameters, silence times, the display on the screen must be clear At a distance and from various angles, the curves and numerical information produced by the parameters should be obvious, the controls for critical functions and alarms should not be confusing, but simple and obvious, the monitor should be of a size that is convenient within of the application area.
Types of Patient and Fetal Monitors that may be needed in the Medical Sector

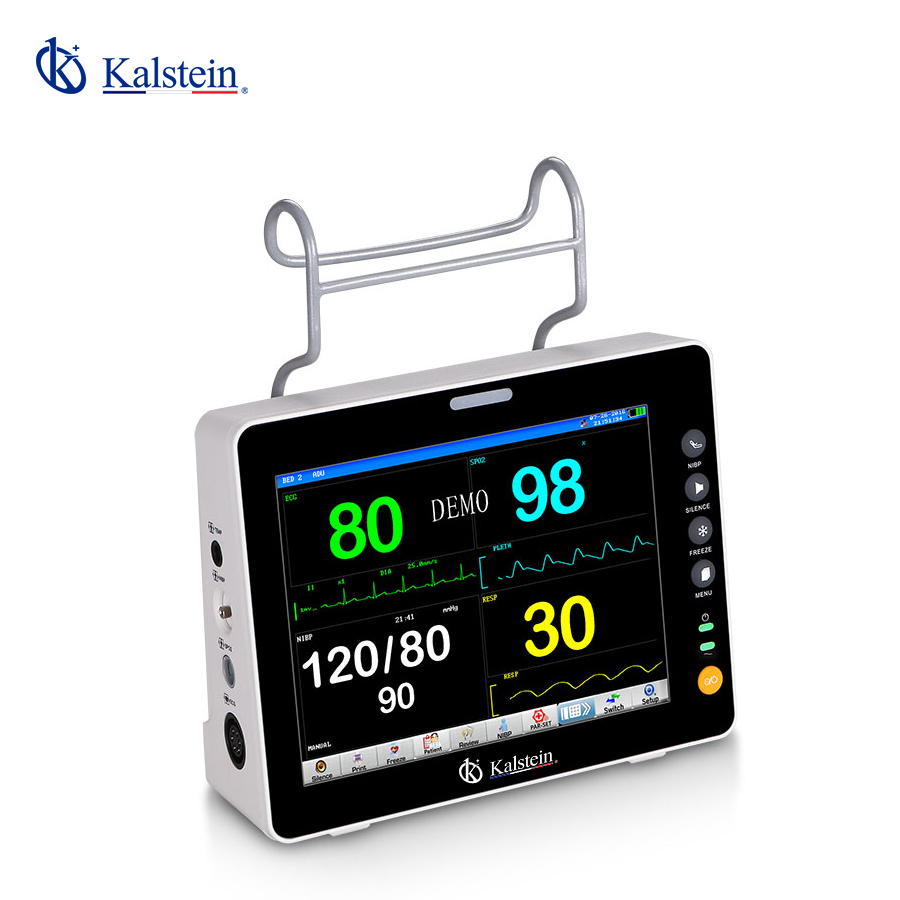

Patient Monitors YR02170 // YR02171 // YR02172
NICU Monitor. Devised specillay for neonatal. 8.4 inch touch screen,ECG (3 lead), Suntech NIBP, Masimo SpO2...
Multi-parameter Patient Monitor YR02177
Adult, kid and newborn monitoring are supported; slim body with a hidden handle, easy to move...

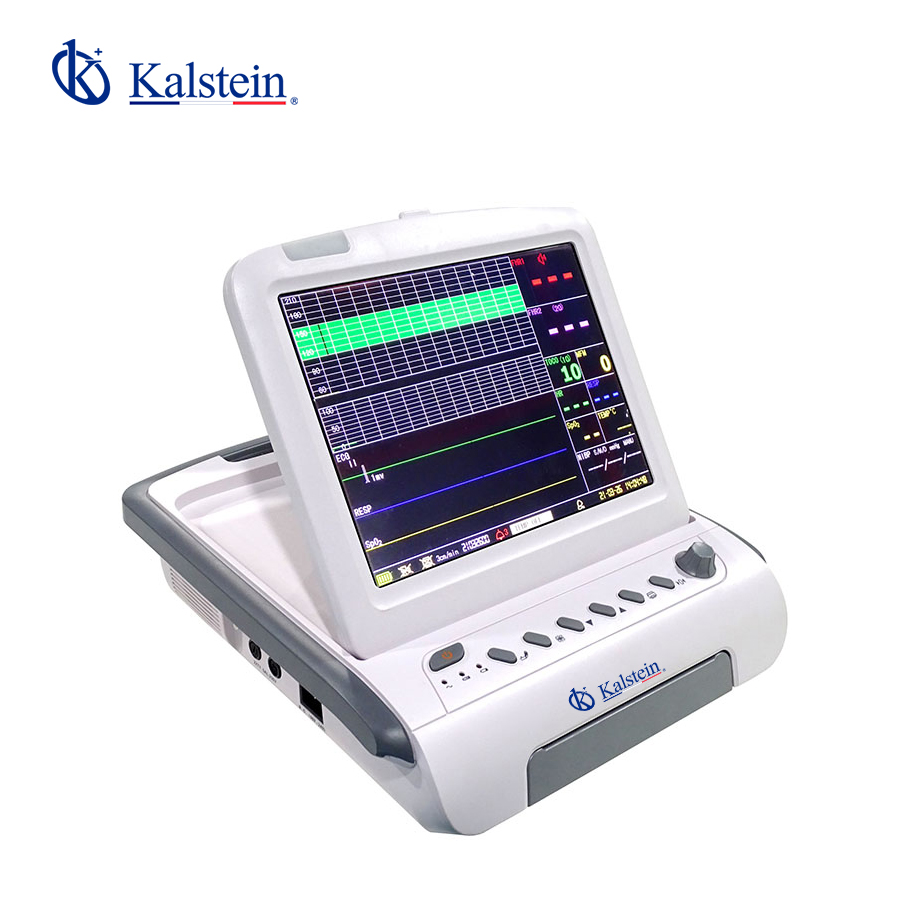

Doppler Ultrasound Fetal Monitor YR02181
10.2 inch large-screen color TFT display, digital display and waveform oscilloscopeof twins heart rate (FHR) and uterine contraction...

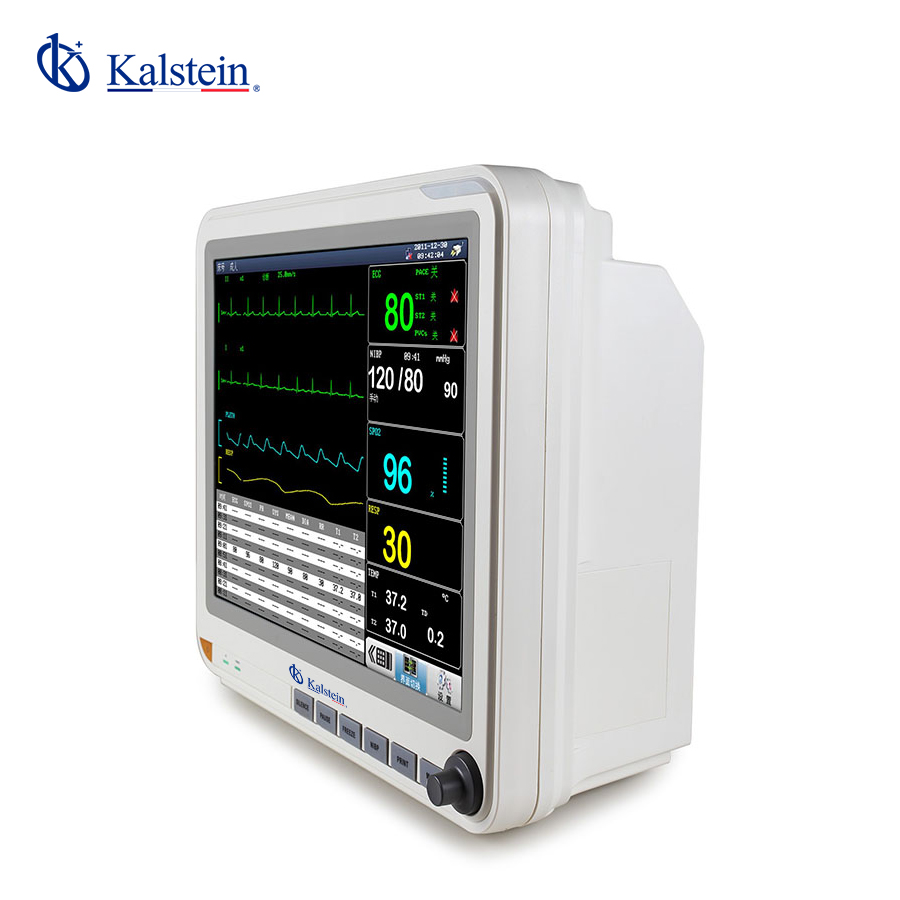

Bedside Monitor YR02174
15 inch high-brightness touch screen; triple color eye-catching alarm light; concealed buttons; built-in lithium battery. With the rapid development of medical technology...

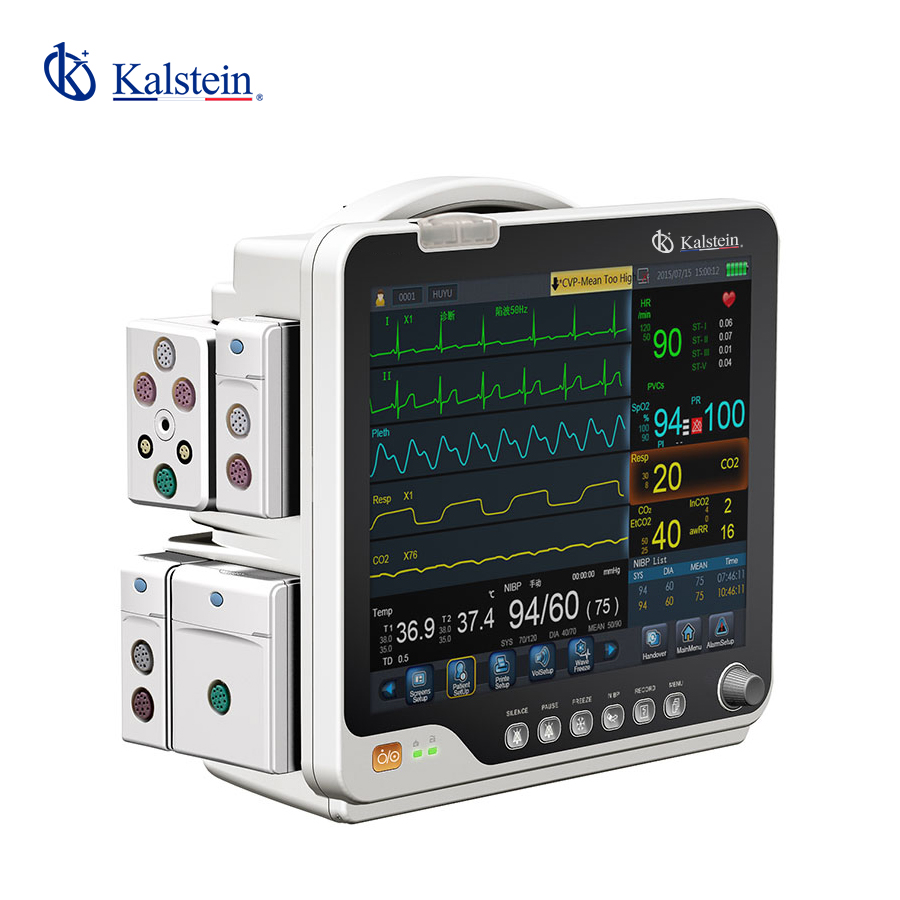

Our best selling Patient Monitor
- 8.4 inch touchscreen;
- Embedded handle and 1.6kg of weight, easy to carry;
- Able to use module, anesthetic depth and EtCO2 monitor modules available;
- 5 hours of battery life, covers the requirement of transfer of patience;
- Vehicle power supply supported;
- No-fan design ensures low noise;
- Multiple interfaces for different departments.
| Model | YR02176 |
|
Input
|
3 leads or 5 leads selectable |
| 3-conductor cable: RA; LA LL or R: L; F | |
| 5 Lead wire: RA: LA: RL: LL: V or R: LN: F: C | |
|
Selection of potential clients
|
3 leads: 1, 1, 111 |
| 5 leads: 1, Il, Il, AR, AVL, AVF. V | |
| ECG waveform | 2 channels |
| Win selection | x0.25, x0.5.x1, x2.x4, Automatic |
| Sweep speed | 12.5mm / s, 25mm / s, 50mm / s |
| Heart rate | for newborns 15-350BPM |
| Heart rate | for AdulVPediatric 15-300BPM |
| Precision | 1 bpm or 1%, whichever is greater |
| Resolution | 1 bpm |
| Filter diagnostic mode | 0.05-100 Hz |
| Monitor mode | 0.5-40 Hz |
| Surgical mode | 1.0-25Hz |
| Protection | Withstands 4000VAC / 50Hz voltage in isolation Against electrosurgical interference and defibrillation |
|
Alarm range
|
Newborn: 15-350 BPM |
| Adult / pediatric: 15-300 BPM | |
| ST segment detection | Measurement range: -2.0 mv to 2.0 mv |
| Alarm range | -2.0m and 2.0mv |
| Arrhythmia analysis | Yes |
| Alarm | audible and visual alarm, recoverable alarm event |
| Rhythm detection | Yes |
| Calculation of drug dose | Yes |
| Standby mode | Yes |
| Breathing | |
| Method | Tooraclc impedance |
|
Measuring range
|
Newborn / Pediatric: 0-150 RPM |
| Adult: 0-120 RPM | |
| Apnea alarm | No alarm, 10s, 15s, 20s, 25s, 30s, 35s 40s selectable |
| Alarm | Audible and visual alarm, recoverable alarm events |
| NIBP | |
| Method | Oscillometric |
| Measurement modes | Manual / Automatic / Continuous |
| Displayed parameters | Systolic, diastolic and MAP (mean arterial pressure) |
| Automatic measurement time | Adjustable |
| Unit of measurement | mmHg / kPa selectable |
| Type of measure | Systolic, Dlastolic. Piss |
|
Systollc pressure range
|
Adult: 40-270 mmHg |
| Pediatric: 40-200 mmHg | |
| Newborn: 40-135 mmHg | |
|
Diastolic pressure range
|
Adult: 10-210 mmHg |
| Pediatric: 10-150 mmHg | |
| Newborn: 10-100 mmHg | |
|
Medium pressure range
|
Adult: 20-230 mmHg |
| Pediatric: 20-165 mmH | |
| Newborn: 20-110 mmHg | |
| Precision | ± 5 mmHg |
| Resolution | 1 mmHg |
| Alarm | Systollc, Diastollc, Mean |
| Overpressure protection | Double safety protection |
Patient and Fetal Monitor models catalog
Guides to becoming an expert in Patient Monitor and Child Monitor
How is a Patient Monitor explained?
The patient monitor is a multifunctional instrument designed to monitor vital functional signs of adult and child patients. They are in hospitals and clinics and should only be handled...
Patient monitors: how should they be used?
These workstations are part of the essential medical equipment in clinical centers, a patient monitor is a device that, combined with a system that is made up of different...
How does a vital signs monitor work?
A vital signs monitor is a device that allows you to detect, process and continuously display the physiological parameters of the patient. It also has an alarm system that alerts...
Patient monitor: rules for use
A patient monitor is a medical device that collects and stores the patient’s vital signs, which together with alarm systems process and record the patient’s parameters. They are equipment capable of providing operating facilities for medical personnel and modern medical practice...
Frequently Asked Questions about Patient and Fetal Monitor
How to know the prices of Patient and Fetal Monitor?
To know the price of Patient and Fetal Monitor we invite you to send us an email with your request through the contact form.
What are the delivery times of Patient and Fetal Monitor?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to make a purchase of Patient and Fetal Monitor?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
