Analyzers
The analyzers are clinical laboratory equipment, essential for the medical area, because through itdifferent pathologies are determined, and also studies are performed to establish the type of treatment to be administered to the patient, as well as the follow-up of the same. In them, the read processis performed after the scan has finished. With the analyser, the entire read value course of the analyte is carried out, once the reaction has taken place.
These processes over the years and with the relevant development of this branch of science, have been incorporated in the laboratories, analyzers belonging to different commercial houses with characteristics focused on the type of reactive system.
![Analyzer-YR051174-scaled-1.jpeg](https://kalstein.pl/wp-content/uploads/2024/06/Analyzer-YR051174-scaled-1-350x280.jpeg)
Types of Laboratory Analyzers a Laboratory May Need
![YR05122-1.png](https://kalstein.pl/wp-content/uploads/2024/06/YR05122-1-350x300.png)
Hematology Analyzer
- 3-part differentiation of WBC, 23 parameters.
- Single channel counter, up to 30 samples test per hour.
- Sample volume : venous 9.8 ul, prediluted 20 ul for twice testing.
- 8.4” color TFT screen, all testing parameter displayed simultaneously.
- Windows operation system, mouse and keyboard operation.
- Automatically sample probe cleanning (inside and outside).
- Large storage capacity: up to 100,000 samples +3 histograms.

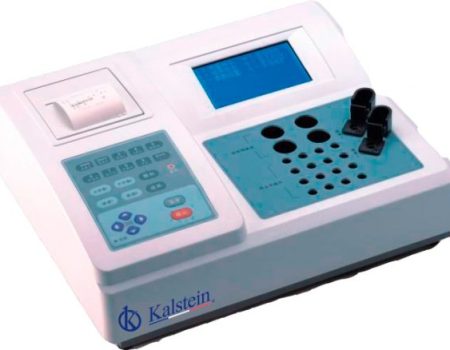

Coagulation Analyzer
- Doubletesting channels, 2 different items analysis in the same time.
- Special testing cup location system, sample bracket.
- Incubate precision 37℃±0.3℃.
- Up to 10.000 testing result restored ,Inner thermal-sensitive printer.
- Electronically-linked pipet optional.
- Perform all routine tests such as PT, APTT, TT, FiB and clotting factors.
- RS232 interface, PC connecting.
![Yr05117-600x531.jpg](https://kalstein.pl/wp-content/uploads/2024/06/Yr05117-600x531-1-350x300.jpg)
In Kalstein you can find the Ideal Analyzers for your Lab
![Yr05117-600x531.jpg](https://kalstein.pl/wp-content/uploads/2024/06/Yr05117-600x531-1-250x250.jpg)
Semi-automatic Coagulation Analyzer YR05117
Advanced scattered light principle and percentage analysis technology. Internal thermal printer. Low consumption of reagents...
![yr06092.png](https://kalstein.pl/wp-content/uploads/2024/06/yr06092-250x250.png)
Portable Chemical Analyzer YR06092
Dry block heating. Compact size takes up minimum space. Both Φ1.3cm and Φ1.5cm tube supported...
![YR06074.jpg](https://kalstein.pl/wp-content/uploads/2024/06/YR06074-250x250.jpg)
Fully Automatic Chemistry Analyzer YR06074
Automatic, Random Access. Automatic 8 steps washing system, Low carry over. Labor saving, simple operation...
![YR06075IMG-600x600.png](https://kalstein.pl/wp-content/uploads/2024/06/YR06075IMG-600x600-1-250x250.png)
Automatic Chemistry Analyzer YR06075 – YR06076
Up to 560 tests per hour with ISE( K,Na,Cl). Reversed grating system with 12 wavelengths. Automatic 10 steps wash system...
Our Best Selling Analyzer
- Filter system, 7 wavelengths from 340nm to 800nm, 1 optional
- Compact design, LCD with touch screen
- 75 parameters (47 default and 28 user-defined parameters)
- Large memory, 10,000 results
Model | YR06078 |
Photometric Range | 0.000-3.000Abs |
Resolution | 0.001Abs(displayed), 0.0001Abs(calculated) |
Light Source | Tungsten halogen lamp, 6V/10W |
Wavelengths | 340, 405, 500, 546, 578, 620, 670(nm), |
1 more optional filter | |
Wavelength Accuracy | ±2nm |
Half brand width | ≤10nm |
Aspiration Volume | 200-6000uL |
Carryover | ≤1% |
Memory | 75 test protocols, 10,000 test results |
Interface | RS-232, USB, LAN |
Flow Cell | 30uL metal flow cell |
Cuvette Mode | 12.5mm*12.5mm cuvette optional |
Temperature Control | 25°C, 30°C, 37°C ±0.5°C and |
Ambient temperature | |
Display | 7″ color touch screen LCD (800*480 pixels) |
Input | USB mouse & keyboard |
Output | Internal printer or external printer (optional) |
Dimension L * W * H | 350mm×362mm× 180mm |
Power Supply | AC100V-240V, 50Hz/60Hz |
![YR6078.jpg](https://kalstein.pl/wp-content/uploads/2024/02/YR6078-300x300.jpg)
Analysis of the best Analyzers for your laboratory
![biochemist-using-a-hematology-analyzer-for-conduct-2022-03-09-03-13-34-utc-1-600x400](https://kalstein.pl/wp-content/uploads/2022/12/biochemist-using-a-hematology-analyzer-for-conduct-2022-03-09-03-13-34-utc-1-600x400-1-300x300.jpg)
The hematological analyzer: A great medical innovation
The knowledge about the pathophysiological changes that accompany the health-disease process reached by the medical...
![close-up-of-machine-for-testing-different-samples-V6F3LN8-scaled-600x400](https://kalstein.pl/wp-content/uploads/2022/12/close-up-of-machine-for-testing-different-samples-V6F3LN8-scaled-600x400-1-300x300.jpg)
How does a coagulation analyzer work?
A coagulation analyzer is a laboratory equipment through which coagulation factors, essential elements required...
![woman-collecting-blood-samples-for-testing-on-diff-WVGXYJD-scaled-600x400](https://kalstein.pl/wp-content/uploads/2022/12/woman-collecting-blood-samples-for-testing-on-diff-WVGXYJD-scaled-600x400-1-300x300.jpg)
Hematology analyzer: interpretation of blood counts
Hematology analyzers are equipment used to perform complete blood counts...
![scientist-using-protective-robber-gloves-for-handl-2021-04-02-18-45-54-utc-scaled-600x400](https://kalstein.pl/wp-content/uploads/2022/12/scientist-using-protective-robber-gloves-for-handl-2021-04-02-18-45-54-utc-scaled-600x400-1-300x300.jpg)
What are the different types of urine analysers available?
The health processes and medical analysis performed by a patient to diagnose diseases are a wide range, one of those...
Catalog of Analyzer models on offer
-
Food Safety Analyzer YR06089
-
Immunoassay Analyzer YR06390
-
Full-Automatic Chemiluminescent Immunoassay Analyzer YR06387
-
COD Analyzer YR06295
-
Automated Coagulation Analyzer YR6082
-
Automatic Chemistry Analyzer YR06075 – YR06076
Select options This product has multiple variants. The options may be chosen on the product page -
Auto Hematology Analyzer Technical Specifications YR05123
-
Analyzer & Microplate Incubator Shaker YR06093
Guides to becoming an Analyzer expert
Blood Chemistry: Laboratory Analyzers
Blood chemistry is the measurement and reporting of dissolved chemical components in the blood. Its study provides information...
Choosing the biochemical analyzer?
A biochemical analyzer is a laboratory equipment, which has among its functions to measure the level in blood or other body fluid...
Hematology analyzer vs. biochemical
A hematology analyzer or hematology analyzer is a device that allows you to perform a complete blood count. In other words...
How does a clinical chemistry analyzer work?
Clinical chemistry analyzers are instruments that test clinical samples such as blood serum, plasma, urine, and cerebrospinal fluid to detect the presence of disease- or drug-related analytes. Clinical chemistry analyzers are used in a variety of settings...
Live Analyzer Videos
In this section you can find, our Analyzers in operation, packaged, receiving service, etc...
Analyzers running
A clinical laboratory is an institution equipped with the necessary means to carry out analyzes that contribute to the study, prevention, diagnosis and treatment of health problems. Thanks to technological advances, clinical laboratories have incorporated in their different areas (biochemistry, hematology, coagulation, urine), high-tech automated equipment that have allowed the delivery of results in less time, with greater accuracy and accuracy and reducing the number of measurement errors.
![LOGO_Kalstein_K[88] blanco](https://kalstein.net/es/wp-content/uploads/2022/02/LOGO_Kalstein_K88-blanco.png)
Frequently Asked Questions about Analyzers
How to know the prices of Analyzers?
To know the price of the Analysers we invite you to send us an email with your request through the contact form.
What are the lead times of the Analyzers?
The delivery time of your Kalstein product will depend on the following:
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen may be either air or sea.
- Equipment in stock:
- Equipment not in stock:
How to make a purchase of Analyzers?
You can purchase through:
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
All Kalstein equipment has a 1-year warranty against manufacturing defects. The warranty does not cover damage caused by poor installation or operation by the user, transport defects or by uses other than those specified by the manufacturer. Warranty excludes electrical or consumable parts. For more information visit our “terms and conditions” by clicking HERE
At Kalstein, we provide our customers with induction and technical support through new online methods. You can visit our induction videos, technical assistance and guidance provided by a Kalstein team through our YouTube channel (Kalstein English). HERE
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
