Water Baths, Circulators & Chillers
- Circulating water baths: Circulating baths are ideal for applications where temperature uniformity and consistency are critical, such as serological and enzymatic experiments. The water is thoroughly circulated throughout the bath, resulting in a more uniform temperature.
- Non-displacement water baths: This type of water bath relies primarily on convection rather than water that is evenly heated. Therefore, it is less precise in terms of temperature control. Additionally, there are add-ons that provide agitation to non-circulating water baths to create more uniform heat transfer.
Types of Water Baths that a Laboratory may need
Heating Bath Circulator
Water baths are a very common element in any type of microbiological laboratory. This type of equipment is a container that is capable of holding hot water to incubate samples in water at a constant temperature for a long period of time.
- PID Temperature Control
- Over temperature alarm
- low water level alarm
- internal and external circulation optional
- Tank is made of 304 stainless steel
Oil Bath
Oil baths are essentially the same as water baths with the difference that some oil is used instead of water. They are suitable when the temperatures to be reached exceed 100 ° C. For these baths it is important to use very thick-walled beakers to contain the oil.
Because oils have a high heat capacity and heat slowly, it may be helpful to partially heat the bath oil while the experiment is being set up.
In Kalstein you can find the ideal Water Baths for your Laboratory

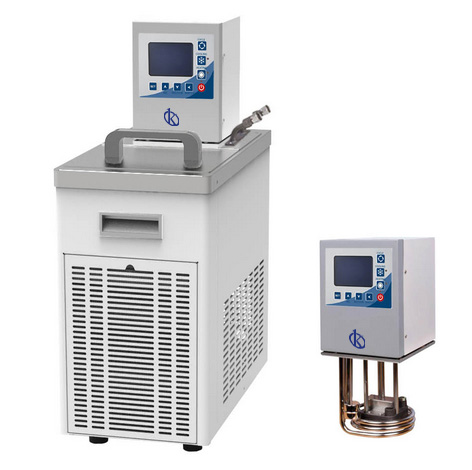

Cooling and heating circulating bath
YR heating and refrigerated circulators series, provides a constant temperature liquid environment ...
Transparent Water Bath YR05080
YR transparent water bath series is with transparent chamber design, with big improvement on...

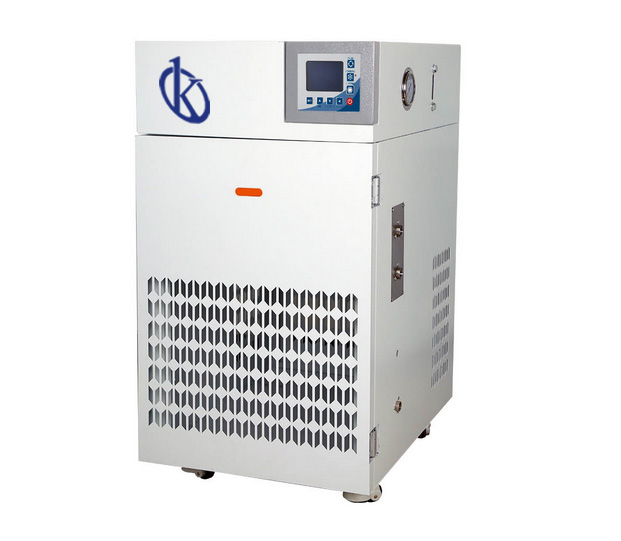

YR05001 Cooling and heating circulating pump
Wide temperature control range, no need of changing heat-conducting medium in the whole course and little...

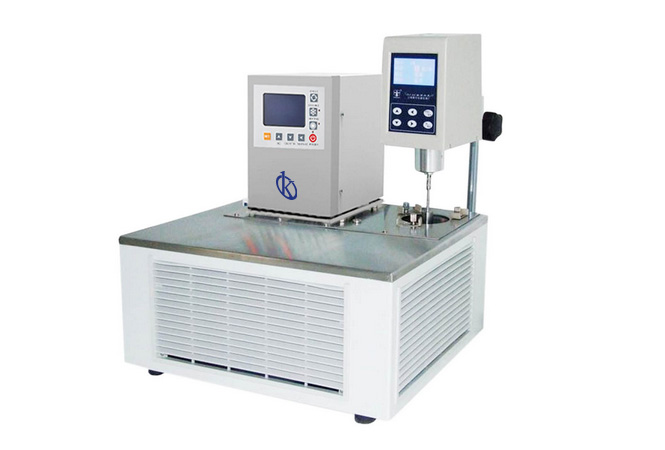

Viscometer circulating bath YR04985
Using high quality refrigeration compressor, fast cooling, fully sealed stirring motor, low noise, long serving life...
Our Best Selling Water Baths
- Integrated stamped chamber, groove at bottom for better drainage
- Stainless Steel 304
- Deep chamber for big Erlenmeyer, with arch lid
- Five rings lid, more convenient for different sizes of glasswares
- Hidden drain tube, beautiful and easy to use
- Microcomputer PID control, accuracy 0.1°C
- With timmer 0 – 9 999min
- Triple safety function
| Model (Integrated Chamber) | YR05076 | YR05078 | YR05077 | YR05079 |
| Controller | PID | |||
| Voltage | 220V / 50Hz 110V / 60Hz | |||
| Power (W) | 800W | 1 200W | 1 000W | 1 500W |
| Temp-Range (°C) | RT. + 5 ~ 100 °C | |||
| Temperature Resolution | 0.1°C | |||
| Temperature Fluctuation | ≤±0.5°c | |||
| Division Accuracy | ≤±1°c | |||
| Timer | 999 minutes | |||
| Recycle Design | Null | |||
| Safety | Overcurrent Protection; Over Temperature alarm; Prevent dry burning function | |||
| Chamber Size (mm) | 300x240x150 | 500x290x150 | 300x240x200 | 500x290x200 |
| Product Size(mm) | 340x280x240 | 550x350x240 | 340x280x290 | 550x350x290 |
| Packing Size (mm) | 390x330x290 | 600x400x290 | 390x330x340 | 600x400x340 |
Analysis of the best Water Baths for your Laboratory
Importance of Recirculation Baths in a Laboratory
They are essential equipment in a laboratory, because they are used to contain water and with a fixed...
Heating blankets and water bath: differences
Heating blankets and water baths are laboratory equipment used in different areas and each one has ...
What type of water should be used for a water bath?
Water baths are equipment that allows maintaining a uniform temperature necessary for different tests and...
Chillers, a water bath and a circulation bath
At present there are numerous laboratory equipment that facilitate the processes carried out in these places...
Catalog of models of Water Baths on offer
-
Water Tank YR05076 // YR05079
Select options -
Water bath YR05066 // YR05074
Select options -
Transparent Water Bath YR05080 // YR05082
Select options -
Viscometer circulating bath YR04985
-
Cooling and heating circulating pump YR05001 // YR05004
Select options -
Heating circulating bath YR04977 // YR04984
Select options -

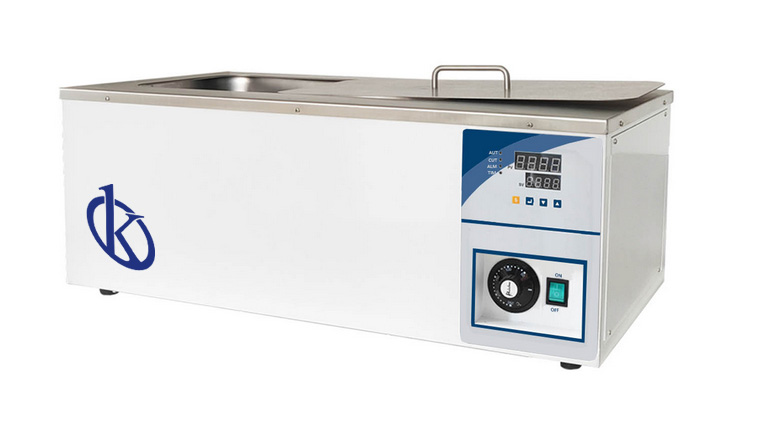

Oil bath YR04973 // YR04976
Select options -
Thermostatic Magnetic Stirring Bath YR02311 // YR02312
Select options
Guides to becoming an expert in Water Baths
Oil baths: What is your role in the Laboratory?
An oil bath is a thermostatic equipment used in chemical research laboratories to transfer heat indirectly, by thermal...
Laboratory Water Baths: Uses and types
A water bath is a laboratory equipment consisting of a container filled with hot water, used to incubate samples in water...
Preventive and corrective maintenance
Water baths are equipment that fulfill a function mainly in chemistry laboratories, where they are used to transfer heat...
Differences between a tissue Water Bath and a tissue floatation bath
A tissue water bath is an equipment composed of a container capable of holding hot water to incubate tissue samples in water at a constant temperature for a prolonged period of time...
Videos of Water Baths in operation
In this section you can find, our Mother Category in operation, packaged, receiving service, etc...
Water Baths in operation
Before starting to use the water bath, it should be checked that it is clean and that the accessories to be used are installed. And then, you usually proceed with the following steps:
- Fill the bath with the water to be used to keep the temperature uniform. Verify that, once the containers to be heated are placed, the level of the tank is between 4 and 5 cm from the top edge of the tank.
- Install control instruments, such as thermometers and shakers, when required. Check the position of the bulb of the thermometer or the heat probe, to ensure that the readings are correct.
- Check that the water being used is highly clean.
- Turn the ignition switch to ON.
.
Frequently Asked Questions about Water Baths
How do you know the prices of Water Baths?
To know the price of the Water Baths we invite you to send us an email with your request through the contact form..
What are the delivery times of the Water Baths?
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen, this may be; air or sea.
How to make a purchase of Water Baths?
- By email: [email protected]
- By telephone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
