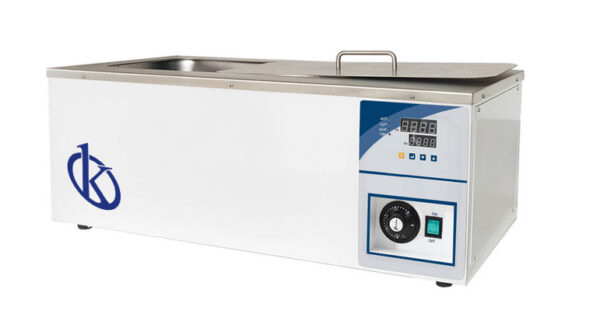

Oil bath YR04973 // YR04976

Manufacturer: Kalstein

Manufacturer: Kalstein

Product Description

YR oil bath series is widely used in bioengineering, medicine, food, chemical industry, gold treatment, petroleum and other fields. To provide users with high-precision, controlled, temperature uniform constant place, is the Research Institute, colleges and universities, factory laboratory, inspection department, etc.

  • Microcomputer intelligent control system has the advantages of rapid remperature rise, stable temperature and easy operation
  • Dual purpose water and oil: the maximum temperature can reach 250Β°C
  • Led dual window digital display temperature measurement value and temperature setting value respectively, convenient to touch the key
  • It is suitable for chemical reaction, biomedicine and other industries which need high temperature field
  • Optional magnetic stirring device for high temperature reaction
Model (Integrated chamber) YR04973 YR04974 YR04975 YR04976
Controller PID
Voltage 220V / 50Hz 110V/60Hz
Power (W) 1 000W 1 200W 1 600Ww 2 000W
Temperature – Range (Β°C) RT. +5~250Β°C
Temperature Resolution 0.1 Β°C
Temperature Fluctuation ≀±0.5Β°C
Division Accuracy ≀±1Β°C
Timer 999 minutes
Recycle Design Optional
Magnetic Optional
Safety Over current protection, Over temperature alarm; Mechanical temperature limiter
Chamber Size (mm) 300 x 240 x 150 300 x 240 x 200 500 x 290 x 150 500 x 290 x 200
Product Size (mm) 390 x 280 x 240 390 x 280 x 290 600 x 350 x 240 600 x 350 x 290
Packing Size (mm) 440 x 330 x 290 440 x 330 x 340 650 x 400 x 290 650 x 400 x 340

Additional Information

Weight N/A
Dimensions N/A

YR04973, YR04974, YR04975, YR04976
