How low does Bilirubin go in Phototherapy?
Neonatal hyperbilirubinemia is a clinical condition characterized by a serum bilirubin concentration greater than 1.5 mg; according to the...
Infant Bilirubin Phototherapy Unit
Phototherapy is a therapeutic measure in which light is used, specifically ultraviolet (UV) light because UV radiation has anti-inflammatory action, for the treatment of inflammatory and neoplastic dermatological diseases of the skin. The use of phototherapy dates from the beginning of the 20th century and from there several modalities have emerged, the most commonly used being UVA (340-400 nm), PUVA (Psoralen + UVA), UVB broadband (280-320 nm) and the most recent narrowband UVB (311 nm).
It is a technique that is commonly indicated in extensive forms, in which the application of a topical treatment is insufficient. It is frequently used in pathologies such as psoriasis, atopic dermatitis, mycosis fungoides and vitiligo. The mechanism of action of phototherapy is complex, based on the combined action of epidermal proliferation inhibition, an anti-inflammatory effect, and several immunomodulatory actions.
Types of Childhood Bilirubin Phototherapy Unit that the Medical Sector may need

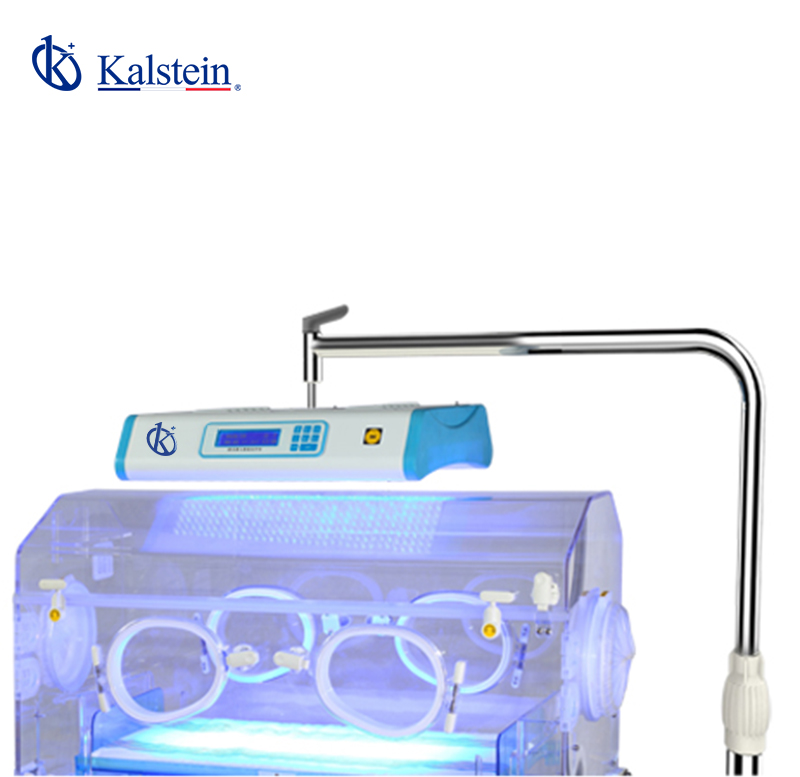

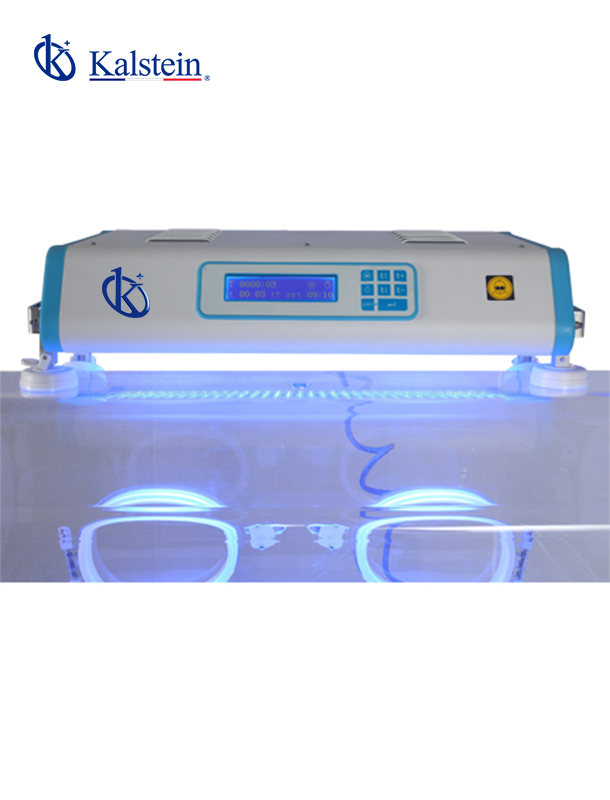

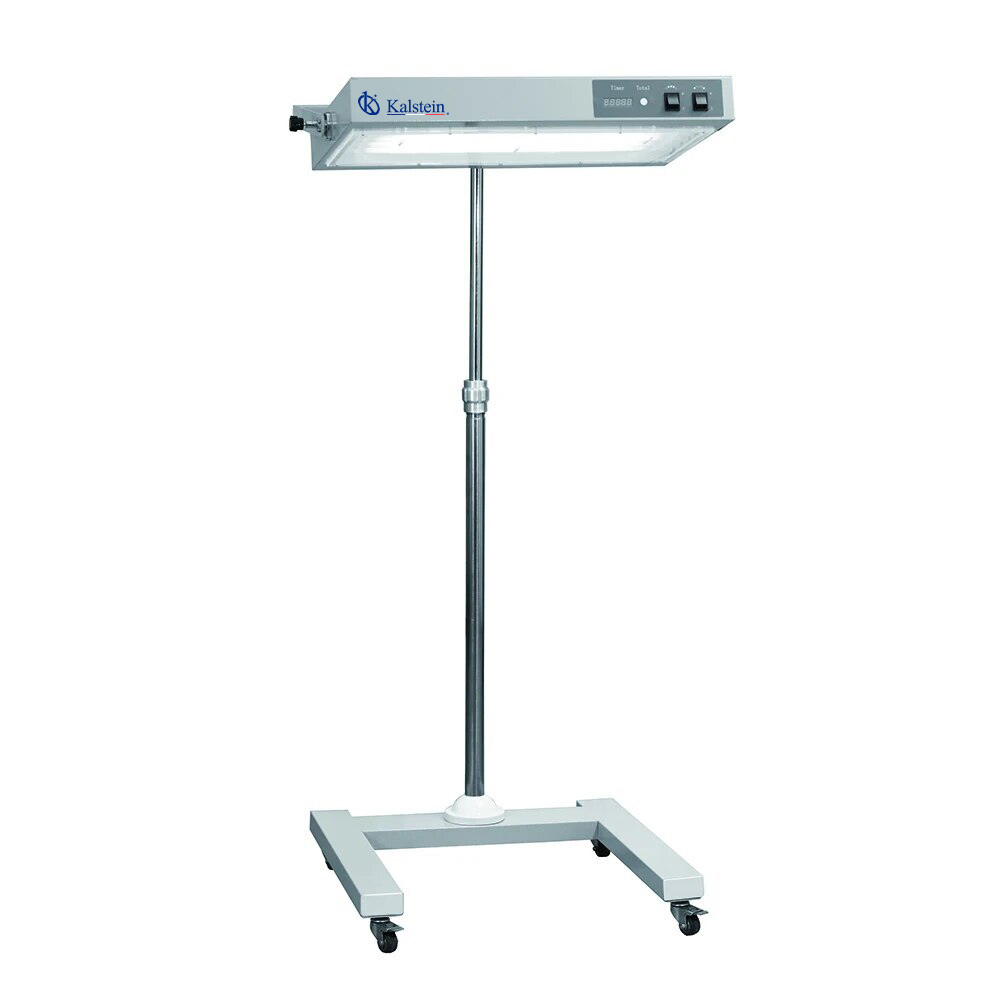

Infant bilirubin phototherapy unit YR02195
This model has 4 suction cup legs to be fixed in an incubator. LED as radiant elements of phototherapy...

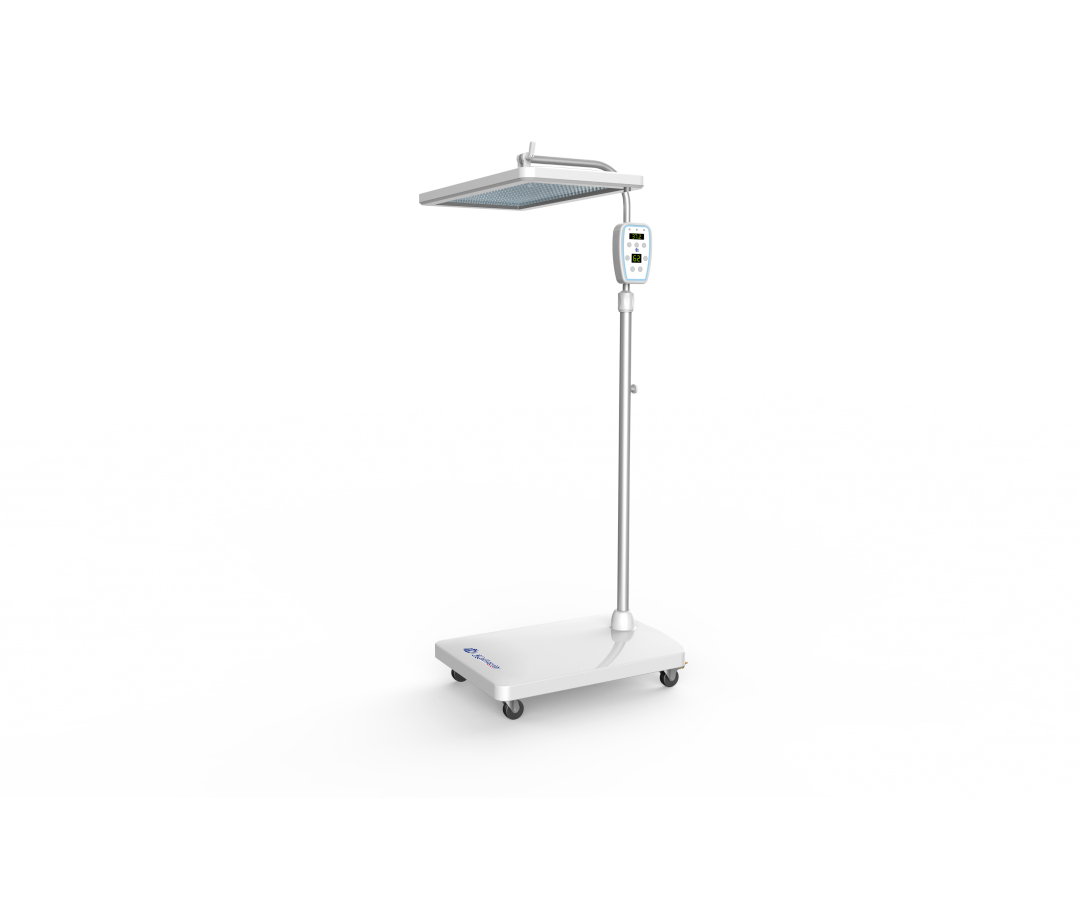

Infant bilirubin phototherapy unit YR02194
The newborn patients with hyperbilirubinemia all need best care for threating jaundice. Our line of phototherapy products...

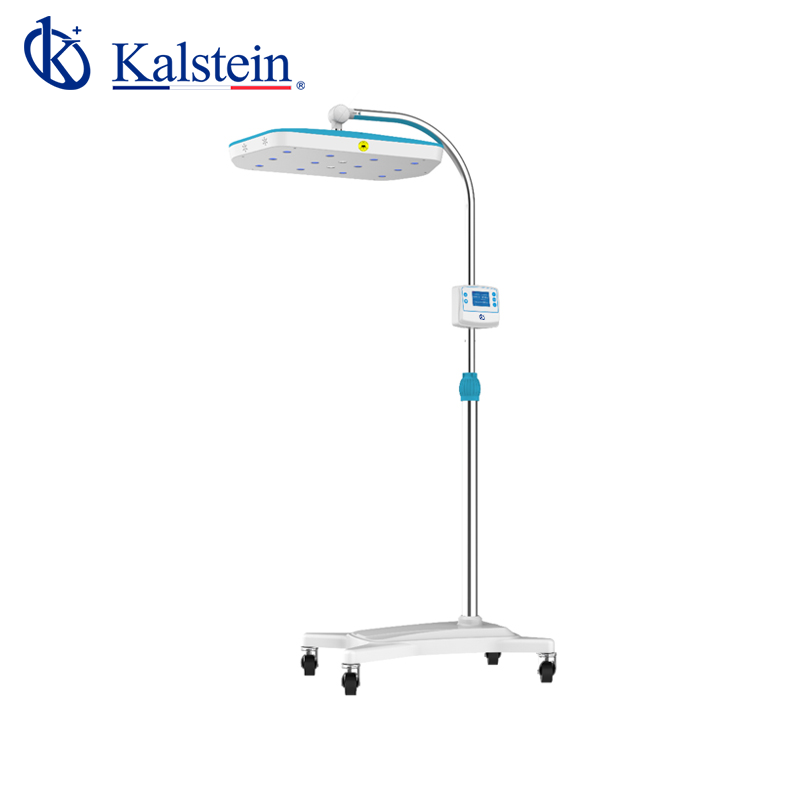

Our Best Selling Child Bilirubin Phototherapy Unit
- LED fluorescent lamp as radiant elements of phototherapy.
- The curing angle of the lamp can be adjusted horizontally.
- The height of the lamp head can be adjusted.
- Stainless steel stand can be adjusted.
- Wheels can be locked
- Timer to record the phototherapy operation.
- Use in incubators, radiant heat baskets and any type of baskets.
Phototherapy is a therapeutic technique used in medicine to treat skin diseases such as psoriasis and vitiligo, and clinical pictures of neonatal hyperbilirubinemia where light is used for its anti-inflammatory capacity or to contribute to reduce serum bilirubin levels respectively.
| Model | YR02194 |
| Irradiation source | LED Light |
| Irradiation wavelength range (300 ~ 550) nm | • |
| Irradiance adjustable from 1 to 99 levels | 3 000 uw / cm2 |
| Time calculator | • |
| Countdown | • |
| Total time | • |
| Display range 0 – 9999 h | • |
| Adjustable working height | • |
| Effective shelf life | 5 000h |
| Nominal Lifespan of Blue Light | 20 000h |
| Energy consumption | ≤ 50W |
| AC motor | • |
| Function | |
| Irradiation wavelength range | 400 ~ 550nm |
| Adjustable irradiation intensity (max.) | 3 000 uw / cm² |
| Wavelength of wave crest | 460nm |
| Irradiance adjustable from 1 to 99 soft | • |
| Hourly | • |
| A fixed time | • |
| Time totalizer | • |
| Display range (hour) | 0 – 9 999h |
| Structural parts | |
| Adjustable in vertical height | 1 100 – 1 589mm |
| Useful life | 5 000h |
| Nominal Lifespan of Blue Light | 20 000h |
| Dimension | 500 x 600 x (1 355 ~ 1 705) mm |
| Electric parts | |
| Power supply | AC (220 ± 22) V (50 ± 1) Hz |
| Energy consumption | ≤50W |
| Room temperature | 10 – 40 ° C |
| Relative humidity | ≤80% |
| Motor | AC |
Model catalog of Child Bilirubin Phototherapy Unit on sale
KALSTEIN UPDATED
Guides to Becoming an Expert in Childhood Bilirubin Phototherapy Unit
There are countless models, so it is normal that you do not know which Child Bilirubin Phototherapy Unit to buy to meet your needs. At Kalstein, we evaluate you to find what you're looking for.
Function childhood Bilirubin Phototherapy unit?
An infant bilirubin phototherapy unit is medical equipment generally made up of 4 blue light tubes and 2 white light tubes...
Phototherapy Units for Dermatological Diseases
Phototherapy is a therapeutic measure in which light is used, specifically ultraviolet light (UV) because UV radiation has...
When and why does a baby need Phototherapy?
Phototherapy or light therapy is the reference treatment for hyperbilirubinemia in babies, known as neonatal hyperbilirubinemia...
Frequently Asked Questions about Bilirubin Phototherapy Unit
How to know the prices of the Childhood Bilirubin Phototherapy Unit?
To know the price of the Child Bilirubin Phototherapy Unit we invite you to send us an email with your request through the contact form.
What are the delivery times of the Childhood Bilirubin Phototherapy Unit?
The delivery time of your Kalstein product will depend on the following:
- If the equipment of your interest is in stock or if it must be manufactured.
- The type of freight you have chosen may be either air or sea.
- Equipment in stock:
– Delivery Time (Air): 15-30 days.
– Delivery Time (Maritime): 45-60 days.
- Equipment not in stock:
–Delivery Time (Air): 30-60 days.
– Delivery Time (Maritime): 60-90 days.
How to make a purchase of Infant Bilirubin Phototherapy Unit?
You can purchase through:
- By email: sales@kalstein.eu
- By phone: +33 (0) 1 78 95 87 02
- E-commerce: Via Kalstein's official website in your country.
How does the warranty work?
All Kalstein equipment has a 1-year warranty against manufacturing defects. The warranty does not cover damage caused by poor installation or operation by the user, transport defects or by uses other than those specified by the manufacturer. Warranty excludes electrical or consumable parts. For more information visit our “terms and conditions” by clicking HERE
At Kalstein, we provide our customers with induction and technical support through new online methods. You can visit our induction videos, technical assistance and guidance provided by a Kalstein team through our YouTube channel (Kalstein English). HERE
Can I request a quote online?
Of course, you can request a quote for the Kalstein team of your interest, directly from our official website. Once you have identified your preferred model, click HERE
