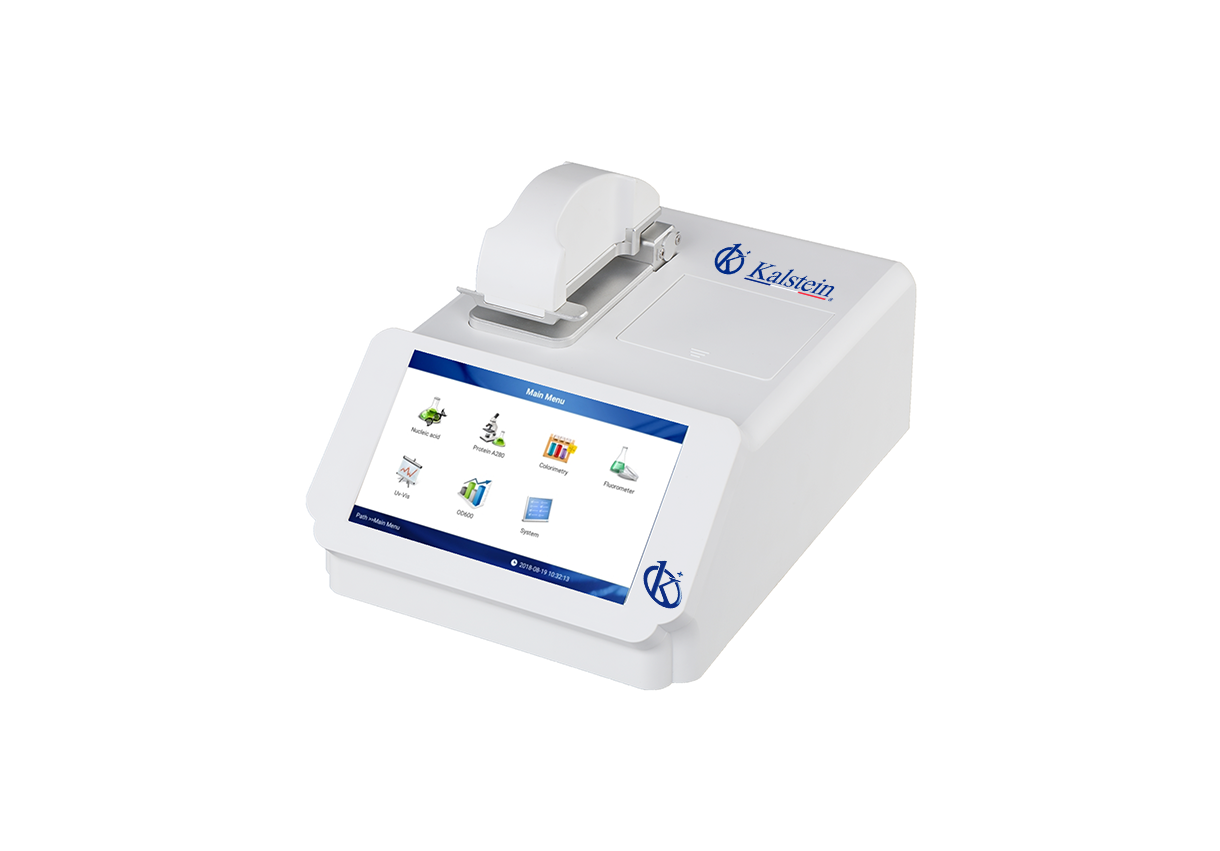

Micro-Spectrophotometer YR06035

Manufacturer: Kalstein

Manufacturer: Kalstein

Product Description

YR06035 is an advanced model of micro UV VIS spectrophotometer with full wavelength range (200-800 nm). It has a new added function of measuring bacterial cell concentration (OD600) in a cuvette. YR06035 requires only 0.5-2 μl of sample to measure nucleic acids, proteins as quickly as YR06033-1. YR06035 comes with a 7-inch touch screen and integrated Android operating system, with no computer required. It is an ideal equipment for a biology lab to make life science research more efficient.

Features
  • The patented lifting motor structure makes the liquid column stretch more gentle, preventing the liquid column from breaking due to structural problems.
  • To detect the concentration of bacteria and microorganism are more convenient with the OD600 function
  • Android system, 7-inch capacitive touch screen, intuitive APP software, simple and easy to use
  • With a 2048-Element linear CCD array detector, the detection and display can be completed in 6s
  • Long-life pulsed xenon light source
  • The result can be printed by a built-in printer or exported via USB for data analysis and storage



Technical Specifications



Model YR06035
Wavelength range 200-800 nm
Minimum sample size 0.5-2.0 μl
Path length 0.05 mm, 0.2 mm, 1.0 mm
Light source Xenon flash lamp
Detector type 2048-Linear CCD array
Wavelength accuracy 1 nm
Spectral resolution ≤3 nm
Absorbance precision 0.003Abs
Absorbance accuracy 1 % (7.332Abs at 260 nm)
Absorbance range 0.04 – 300A
Detects nucleic acid up to 2-15000 ng/μl (dsDNA)
Measurement time <6 S
Data output USB
Sample pedestal materia Aluminum alloy and Quartz fiber
Operating voltage DC 24 V 2 A
Operating power 25 W
Standby power 5 W
Dimension (WxDxH)mm 208×320×186
Weight 3.6kg
Software compatibility Android system
Light source LED
Wavelength range 600±8 nm
Absorbance range 0-4 A
Fluorescent detection
Sensitivity dsDNA:0.5 pg/μl
Linear dynamic range R²≥0.995
Repeatability ≤1.5 %

Additional Information

Weight 10 kg
Dimensions 57 × 57 × 40 cm
