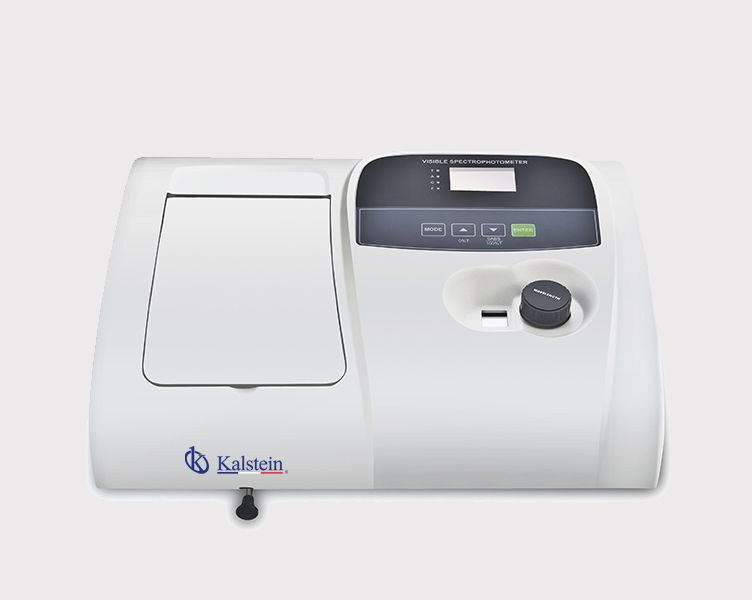

Single Beam Visible Spectrophotometer – YR01844

Manufacturer: Kalstein
Certificacion europea

Manufacturer: Kalstein

Certificacion europea

Product Description

With microprocessor controlled, YR01844 could realize Auto Zero and Auto 100%T adjustment with one push-button. YR01844 has a LCD display instead of LED display for direct readout of Transmittance, Absorption and Concentration.

Grating monochromator

1200 line grating ensures high resolution, high accuracy and low stray light.

Data output

YR01844 is equipped with USB port which can be connected to PC to edit date through specific software.Date can also be printed through a parallel port when connected to a micro printer

Compact design, easy to carry

The compact design of YR01844 saves bench space while all components function remain performed like 120mm wide sample compartment and long optical path monochromator.

Four Display Mode
YR01844 can display absorption,transmittance,concentration and coefficient directly by different mode switching.
Model YR01844
Optical System Single Beam, grating 1200 lines/mm
Wavelength Range 325-1000nm
Spectral Bandwidth 4nm
Wavelength Accuracy ±2nm
Wavelength Repeatability ≤0.5nm
Wavelength Setting Manual
Photometric Accuracy ±0.5%T
Photometric Repeatability ≤0.2%T
Photometric Range -0.3-3A, 0-200%T, 0-9999C
Photometric Mode T, A, C, F
Stray Light ≤0.2%T@360nm
Stability ±0.002A/h @ 500nm
Display LCD
Detector Silicon Photodiode
Output USB Port & Parallel Port (Printer)
Light Source Tungsten Lamp
Power Requirements AC85~250V
Dimension 420*280*180mm
Weight 8kg
Item Description Quantity Unit
1 Spectrophotometer 1 set
2 1cm Glass cuvette 4 pcs
3 Power cord 1 pcs
4 User’s Manual 1 pcs
5 Black block 1 pcs
6 Dust Cover 1 pcs

Additional Information

Weight 9 kg
Dimensions 57 × 45 × 33 cm
