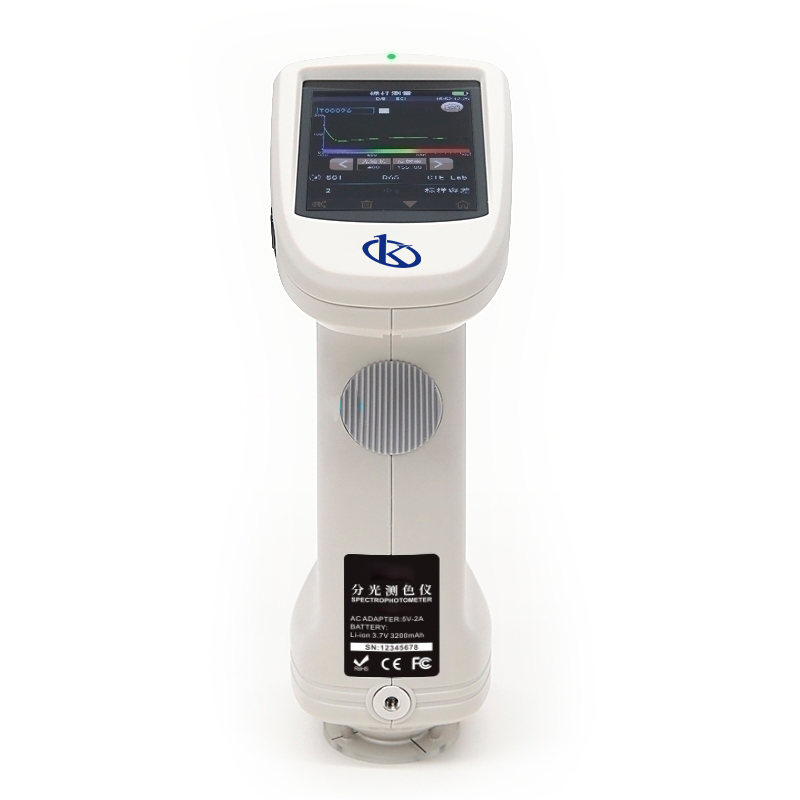

Grating Spectrophotometer YR05494

ManufacturerKalstein

Description

YR05494 spectrometer is equipped with φ 8mm, φ 4mm, 1x3mm three measuring apertures, more adaptability, accurate measurement of color, stable performance, in plastic electronics, paint coating, textile printing and dyeing, printing paper products, automotive, medical, cosmetics and food industries, in scientific research institutions, laboratory fields are widely used.

YR05494 series grating spectrophotometer is Kalstein company spent 3 years, carefully designed, fully with independent intellectual property rights grating spectrophotometer. The instrument uses 1000 lines of precision shining grating as the optical splitter, built-in silicon photodiode array (double row 40 groups) sensor, imported white board, repeatability delta E* AB easily controlled within 0.03, the use of long life full spectrum LED as the light source, optical resolution in the visible range is less than 10nm.

Under the condition of d/8 geometric optical illumination recommended by CIE, YR05494 grating spectrophotometer can accurately measure the SCI and SCE reflectance data of samples / fluorescent samples, and also can accurately measure and express various color difference formulas and color indexes in various color spaces. With spectrophotometer YR05494, it can easily realize the accurate transmission of color and can also be used as the detection equipment of accurate color matching system.

Technical Advantages
  • Silicon photodiode array (double 40 array) sensorThe larger area of the double 40 array sensor, the strong light will not saturation, weak light sensitivity and a wider spectrum response range, to ensure the instrument measurement speed, accuracy, stability and consistency, master the core technology, and the international standard of the same platform, complete compatibility.
  • Adopt full waveband balanced LED light sourceThe full waveband balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of white LED in specific waveband, and ensures the measurement speed and accuracy of the measurement results.
  • Grating spectroscopic techniqueUse Grating spectroscopic technique, with higher resolution, to make the color measurement more accurate.
  • Place the base safely to ensure that the whiteboard is not dirty.
  • Professional whiteboard, a lifetime never change color commitment
  • Fast chargingSpecial fast charging mode, low voltage to remind charging or use off-duty time charging, to ensure the capacity and life of the battery (note: frequent repeated battery charging more harm).
  • New fashionable appearance design based on ergonomicsThe position of the hand holding and the measurement button are carefully designed to meet different holding habits, smooth and fine surface, resulting from the high-precision appearance processing art.
  • Equipped with three measuring apertures to meet the most samples measurementThe Factory configuration of spectrophotometer YR05494 is with ø 8mm flat aperture, ø 8mm tip aperture, ø 4mm flat aperture, ø 4mm tip aperture, ø 1x3mm aperture, a total of five measuring apertures, to meet the most samples measurement.
  • Camera positioning can clearly observe the measured areaSpectrophotometer YR05494 built-in camera positioning, through the camera real-time view, can accurately determine whether the object measured part is the target center, improve the measurement efficiency and accuracy.
  • Excellent errors between instruments and repeatabilityEnsure the consistency of measurement data of multiple equipment, to be used for color matching and accurate color transfer.
  • A variety of color spaces and observation light sourcesOffer CIE LAB,XYZ,Yxy,LCh,CIE LUV, S-RGB,HunterLab,βXY,DIN Lab99 Munsell(C/2) color spaces, and D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4 and F5, F6 and F7 (DLF), F8, F9, F10 (TPL5), and F11 (TL84), F12 (TL83 / U30) a variety of light sources, to meet the special measurement requirements under different measurement conditions.
  • Adopt international common use d/8 SCI/SCE Synthesis technologyAdopt D/8 (SCI/SCE) measurement structure to more objectively reflect the color itself, and reduce the impact of object surface texture on test results, in accordance with CIE No.15. GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7.
  • Dual optical path system for more accurate color measurementDual optical path system, optical resolution is less than 10nm in the visible range, can simultaneously measure the sample SCI, SCE spectrum.
  • PC software has powerful function expansionSQCX quality management software with YR05494 spectrophotometer is suitable for quality monitoring and color data management of various industries. Digitize user data color management.
Technical Specification

Model

YR05494

Optical Geometry

Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)

SCI (specular component included)/SCE (specular component excluded) ;

                Include UV / excluded UV light source

Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Characteristic

double apertures for accurate color analysis and transmission in laboratory

It is used for precise color measurement and quality control in plastic electronics,

paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and for fluorescent sample measurement.

Integrating Sphere Size

Φ40mm

Light Source

Combined full spectrum LED light source, UV light source

Spectrophotometric Mode

Flat Grating

Senso

Silicon photodiode array (double row 40 groups)

Wavelength Range

400~700nm

Wavelength Interval

10nm

Semiband Width

10nm

Measured Reflectance Range

0-200%

Measuring Aperture

MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm

Specular Component

SCI&SCE

Color Space

CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell

(C/2)

Color Difference Formula

ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE

(Hunter)

Other Colorimetric Index

WI(ASTM E313,CIE/ISO,AATCC,Hunter),

YI(ASTM D1925,ASTM 313),

Metamerism Index MI,

Staining Fastness, Color Fastness, Color Strength, Opacity,

8° Glossiness,555 tone classification

Observer Angle

2°/10°

Illuminant

D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,

F10(TPL5),F11(TL84),F12(TL83/U30)

Displayed Data

Spectrogram/Values, Samples Chromaticity Values, Color

Difference Values/Graph, PASS/FAIL Result, Color Offset

Measuring Time

About 1.5s (Measure SCI & SCE about 3.2s)

Repeatability

Spectral reflectance: MAV/SCI, Standard deviation within 0.08%

(400 nm to 700 nm: within 0.18%)

Chromaticity value: MAV/SCI, within ΔE*ab 0.02 ( When a

white calibration plate is measured 30 times at 5 second

intervals after white calibration)

Inter-instrument Error

MAV/SCI, Within ΔE*ab 0.15

(Average for 12 BCRA Series II color tiles)

Measurement Mode

Single Measurement, Average Measurement(2-99times)

Locating Method

Camera Locating,stabilizer cross position

Dimension

L*W*H=129X76X217mm

Weight

Approx 600g

Battery

Li-ion battery, 3.7v, 5000mAh, 6000 measurements within 8 hours

Illuminant Life Span

5 years, more than 3 million times measurements

Displayed Data

3.5-inch TFT color LCD, Capacitive Touch Screen

Data Port

USB, Bluetooth 4.2

Data Storage

Standard 1000 Pcs, Sample 30000 Pcs

Language

Simplified Chinese, English, traditional Chinese

Operating Environment

0~40℃, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment

 -20~50℃, 0~85%RH (no condensing)

Standard Accessory

Power Adapter, User Guide, PC Software(Download from office website), USB cable, White and Black

Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture

Optional Accessory

Micro Printer, Powder Test Box

Notes

The specifications are subject to change without notice.



Additional information

Weight 2 kg
Dimensions 28 × 13 × 30 cm
