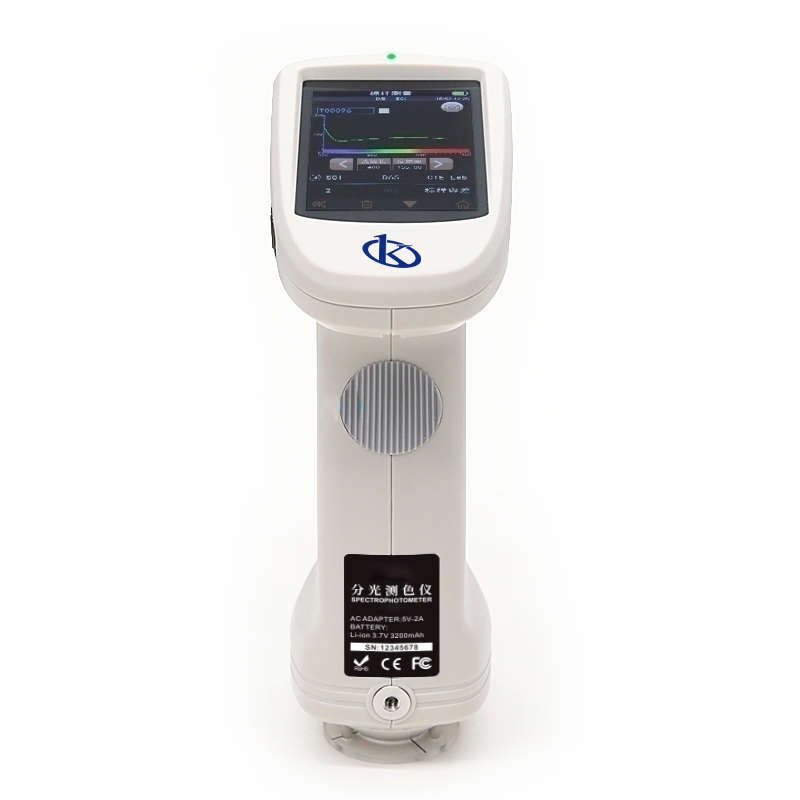

Grating Spectrophotometer YR05495

ManufacturerKalstein

Product Description

YR05495 spectrometer is equipped with φ 8mm, φ 4mm, 1x3mm three measuring apertures, more adaptability, accurate measurement of color, stable performance, in plastic electronics, paint coating, textile printing and dyeing, printing paper products, automotive, medical, cosmetics and food industries, in scientific research institutions, laboratory fields are widely used.

YR05495 series grating spectrophotometer is Kalstein company spent 3 years, carefully designed, fully with independent intellectual property rights grating spectrophotometer. The instrument uses 1000 lines of precision shining grating as the optical splitter, built-in silicon photodiode array (double row 40 groups) sensor, imported white board, repeatability delta E* AB easily controlled within 0.03, the use of long life full spectrum LED as the light source, optical resolution in the visible range is less than 10nm.

Under the condition of d/8 geometric optical illumination recommended by CIE, YR05495 grating spectrophotometer can accurately measure the SCI and SCE reflectance data of samples / fluorescent samples, and also can accurately measure and express various color difference formulas and color indexes in various color spaces. With spectrophotometer YR05495, it can easily realize the accurate transmission of color and can also be used as the detection equipment of accurate color matching system.

Technical Advantages
  • Silicon photodiode array (double 40 array) sensorThe larger area of the double 40 array sensor, the strong light will not saturation, weak light sensitivity and a wider spectrum response range, to ensure the instrument measurement speed, accuracy, stability and consistency, master the core technology, and the international standard of the same platform, complete compatibility.
  • Adopt full waveband balanced LED light sourceThe full waveband balanced LED light source ensures sufficient spectral distribution in the visible light range, avoids the spectral loss of white LED in specific waveband, and ensures the measurement speed and accuracy of the measurement results.
  • Grating spectroscopic techniqueUse Grating spectroscopic technique, with higher resolution, to make the color measurement more accurate.
  • Place the base safely to ensure that the whiteboard is not dirty.
  • Professional whiteboard, a lifetime never change color commitment
  • Fast chargingSpecial fast charging mode, low voltage to remind charging or use off-duty time charging, to ensure the capacity and life of the battery (note: frequent repeated battery charging more harm).
  • New fashionable appearance design based on ergonomicsThe position of the hand holding and the measurement button are carefully designed to meet different holding habits, smooth and fine surface, resulting from the high-precision appearance processing art.
  • Equipped with three measuring apertures to meet the most samples measurementThe Factory configuration of spectrophotometer YR05495 is with ø 8mm flat aperture, ø 8mm tip aperture, ø 4mm flat aperture, ø 4mm tip aperture, ø 1x3mm aperture, a total of five measuring apertures, to meet the most samples measurement.
  • Camera positioning can clearly observe the measured areaSpectrophotometer YR05495 built-in camera positioning, through the camera real-time view, can accurately determine whether the object measured part is the target center, improve the measurement efficiency and accuracy.
  • Excellent errors between instruments and repeatabilityEnsure the consistency of measurement data of multiple equipment, to be used for color matching and accurate color transfer.
  • A variety of color spaces and observation light sourcesOffer CIE LAB,XYZ,Yxy,LCh,CIE LUV, S-RGB,HunterLab,βXY,DIN Lab99 Munsell(C/2) color spaces, and D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4 and F5, F6 and F7 (DLF), F8, F9, F10 (TPL5), and F11 (TL84), F12 (TL83 / U30) a variety of light sources, to meet the special measurement requirements under different measurement conditions.
  • Adopt international common use d/8 SCI/SCE Synthesis technologyAdopt D/8 (SCI/SCE) measurement structure to more objectively reflect the color itself, and reduce the impact of object surface texture on test results, in accordance with CIE No.15. GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7.
  • Dual optical path system for more accurate color measurementDual optical path system, optical resolution is less than 10nm in the visible range, can simultaneously measure the sample SCI, SCE spectrum.
  • PC software has powerful function expansionSQCX quality management software with  YR05495 spectrophotometer is suitable for quality monitoring and color data management of various industries. Digitize user data color management.
Technical Specification
Models YR05495
Optical Geometry Reflect: di:8°, de:8°(diffuse illumination, 8 degree viewing angle)
SCI (mirror component included)/SCE

(mirror component excluded) ;

UV light source excluded

Complies with CIE No.15,GB/T 3978,GB 2893,GB/T

18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

characteristic A custom aperture, it is used for

accurate color measurement and quality control

in plastic electronics, paint and ink,

textile and garment printing and dyeing, printing,

ceramics and other industries, and for the measurement of

fluorescent samples . .

Integrating Sphere Size Φ40mm
light source Combined full spectrum LED light source, UV light source
Spectrophotometric mode flat grid
Sensor Silicon photodiode array (dual row 40 groups)
wave range 400~700nm
Wavelength Range 10nm
semi-bandwidth 10nm
Medium Reflectance Range 0-200%
Measurement Aperture A customized aperture: MAV:Φ8mm/Φ10mm;

SAV:Φ4mm/Φ5mm

Specular Component SCI&SCE
color space CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, βxy, Munsell (C/2)
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00
Other Color Index WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925,ASTM 313),
Stain fastness, color fastness, color intensity

, opacity,

8th Brightness,
Observer Angle 2°/10°
illuminator D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30)
Data Displayed Spectrogram/Values, Sample Chromaticity

Values, Color Difference Values/Graph, PASS/FAIL Result,

Color Compensation

measuring time About 1.5s (measure SCI and SCE about 3.2s)
repeatability Spectral Reflectance: MAV/SCI, Standard Deviation within 0.1%

(400nm to 700nm: within 0.2%)

Chromaticity value: MAV/SCI, within ΔE*ab 0.04

(when a white calibration plate is measured 30 times at

5 second intervals after white calibration)

Error Between Instruments AVM/SCI, Within ΔE*ab 0.2
(Average for 12 BCRA Series II color tiles)
Measurement mode Single measurement, average measurement (2-99 times)
Location Method Camera location, stabilizer cross position
Dimension L*An*Al=129X76X217mm
Weight about 600g
drums Li-ion battery, 3.7 V, 5,000 mAh,

6,000 measurements in 8 hours

Illuminant Lifespan 5 years, more than 3 million times detected
Data Displayed 3.5-inch TFT color LCD, capacitive touch screen
data port USB,
data storage 1000 standard pieces, sample 20000 pieces
Idiom Simplified Chinese, English, Traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensation), Altitude < 2000m
storage environment  -20~50℃, 0~85%RH (no condensation)
Standard Accessory Power adapter, user guide,

PC software (download from

office website), USB cable,

black and white calibration well, protective cover, wrist strap,

one aperture (8mm or 4mm)

Optional Accessory Micro printer, dust proof box
Grades Specifications are subject to change without notice.

Additional Information

Weight 2 kg
Dimensions 28 × 13 × 30 cm
