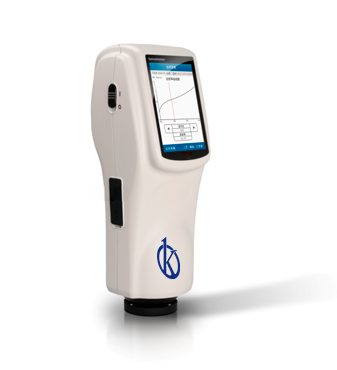

Handheld Color Spectrophotometer YR05497

ManufacturerKalstein

Description

YR05497 handheld color spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.

YR05497 color spectrophotometer is developed by Kalstein with independent intellectual property rights.It uses 45/0 geometrical optical structure, comply with CIE No.15, GB/T 3978. With human body engineering mechanics and humanized operation design, YR05497 color spectrophotometer has stable performance precise measurement and powerful functions in the leading position of the same industry.

With 400~700nm, YR05497 handheld color spectrophotometer features with high accuracy DeltaE*ab 0.04, and 8mm aperture makes measurement so easy. It can save 1000 Standards, 15000 Samples and you also can input your own LAB or XYZ value into the instrument. With SQC8 software,  you can do better color control management. Plus, it is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.

Portable Color Spectrophotometer Product Features
  • Aesthetic design perfectly combined with ergonomics structure.
  • 45/0 geometrical optics structure, comply with CIE, ISO, ASTM, DIN standard.
  • 3.5 inch large capacitive touch screen.
  • Two standard observer perspectives, multiple light sources modes, a variety of color systems.
  • The repeatability ΔE*ab is within 0.04, the errors between each instrument ΔE* ab is less than 0.2.
  • Large capacity storage, can save more than 10000 data
  • PC software with powerful extension functions.
  • High hardware configuration with a number of innovative technologies.
  • Oversized integrating sphere, more effective homogenization ray of lights and precise measurement.
  • 15° oblique angle screen, more in line with the human eye observation
Technical Specifications
Model YR05497
Illuminating/Viewing Method 45°/0 (45° ring illuminating, 0° viewing)                                                                                                                                                                         Comply to standard CIE No. 15, GB/T3978, GB2893, GB/T18833
Integrating Sphere Size Φ58mm
Measuring Aperture Φ8mm
Observer 2°/10°
Repetitive Error Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)                                                          Colorimetric Value: standard deviation ΔE*ab≤0.04 (Measurement Conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration performed.)
Inter-Instrument Error ΔE*ab≤0.2 (Average value of measuring the 12 tint plates of BCRA series II)
Wavelength Range 400∽700nm
Wavelength Pitch 10nm
Reflectance Range 0∽200%
Light Source Type D65, D50, A, C, D55, D75, F2, F6, F7, F8, F10, F11, F12
Light Source Device Combined LED Light
Light Source Life 5 years, more than 1.6 million measurements
Sensor Silicon Photoelectric Diode Array
Color Space CIE LAB, XYZ, Yxy, LCh, CIE LUV
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00
Display Data Spectral Graph/Data, Sample Chromatic Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
Other Chromaticity Data Whiteness – WI(ASTM E313,CIE/ISO,AATCC,Hunter),
Yellowness-YI(ASTM D1925,ASTM 313),
TI(ASTM E313,CIE/ISO),
Metamerism Index (Mt)
Colour Stain, Color Fastness, Color Strength, Opacity
Measuring Time 1.5s
Data Storage 1000 standards, 15000 samples
Data Port USD&RS232
Dimension 90*77*230mm
Weight 600g
Battery Li-ion Battery, 5000 measurements in 8 hours.
Operation Temperature 0∽40℃(32∽104℉)
Storage Temperature -20∽50℃(-4∽122℉)
Standard Accessory Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap.
Optional Accessory Universal Test Components, Micro Printer, Powder Test Box

Additional information

Weight 3 kg
Dimensions 34 × 13 × 29 cm
