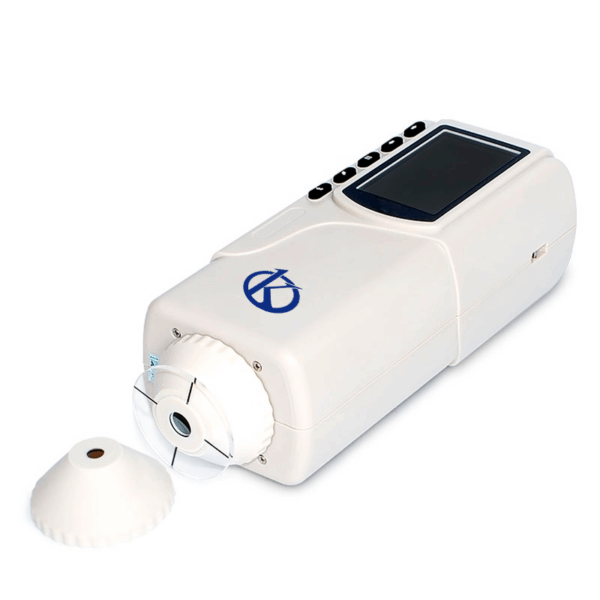

Precision Colorimeter YR05513

ManufacturerKalstein

Description

Kalstein team concentrates on customer needs and develops a new serie YR05509 // YR05513 with high precision & low cost & two apertures, and Φ4mm tip aperture, suitable for most samples use. With color space CIE LAB, YR05509 // YR05513 is good to check color difference for delta E, and widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.
Product Advantages
  • Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.
  • Double Apertures: Φ8mm flat aperture and Φ4mm tip aperture for switch, easy to measure concave sample in large plane.
  • Equipped with rechargeable built-in high-capacity Li-ion battery. No need to purchase battery repeatedly.
  • Handheld design: small and convenient; make the measurement easier.
  • Exquisite appearance: adopts traditional and fashionable aesthetic designs.
  • High cost performance: large output, good quality, cheap products.
Technical Specifications
Model YR05513
Illuminating/Viewing Geometry   8/d(8°illumination angle/diffuse viewing); Conforms to CIE No.15,GB/T 3978.
Illumination LED white light
Detector Silicon photoelectric diode
Measuring Aperture                       Φ8mm flat aperture; Φ4mm tip aperture
Color Space CIE LAB
Color Difference Formula ΔE*ab
Observer Angle CIE 10°
Light Source D65
Displayed Data Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time 1.0s
Repeatability Standard deviation within ΔE*ab 0.03 (Average of 30 measurements of standard white plate)
Errors Between Each Equipment Within ΔE*ab 0.4
(Average for 12 BCRA Series II color tiles)
Dimension 205×67×80 mm
Weight 500g
Power source Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life TFT  2.8 inch
Interface USB
Data Memory 100pcs standards 10000pcs samples
Operating Environment 0~40℃(32~104°F)
Storage Environment  -20~50℃(-4~122°F)
PC Software No
Standard Accessory Power Adapter, User Guide, Wristbands, Φ8mm flat aperture; Φ4mm tip aperture.
Optional Accessory Micro Printer, powder test box
Notes: The specifications are subject to change without notice.

Additional information

Weight 2 kg
Dimensions 28 × 15 × 35 cm
