High cost-effective Portable Colorimeter YR05515
Manufacturer: Kalstein
Manufacturer: Kalstein
Product Description
Kalstein team concentrates on customer needs and develops a new serie YR05515 with high precision & low cost & two apertures, and Φ4mm tip aperture, suitable for most samples use. With color space CIE LAB, YR053441 is good to check color difference for delta E, and widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories.
Product Advantages
- Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.

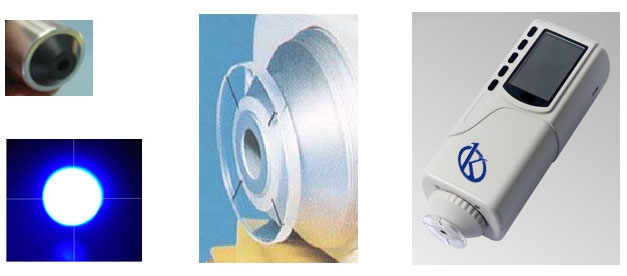

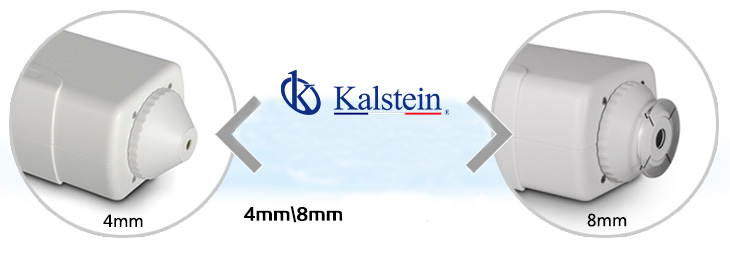

- Double Apertures: Φ8mm flat aperture and Φ4mm tip aperture for switch, easy to measure concave sample in large plane.
- Equipped with rechargeable built-in high-capacity Li-ion battery. No need to purchase battery repeatedly.
- Handheld design: small and convenient; make the measurement easier.
- Exquisite appearance: adopts traditional and fashionable aesthetic designs.
- High cost performance: large output, good quality, cheap products.
Technical Specifications
| Model | YR05515 |
| llluminating / Viewing Geometry | D/8° |
| Standard | CIE No.15, GB/T 3978 |
| Sensor | silicon photodiode |
| Measuring Aperture | 4mm |
| Color Space | CIE LAB, Lch |
| Observer | CIE 10° |
| Illuminant | D65 |
| Display Data | Colorimetric Value,
Color Difference Value Storage |
| temperature | /Graph, PASS/FAIL Result, Color Offset |
| Measuring Time | 1.5 s |
| Repeatability | ΔE*ab ≤ 0.03 (Average of 30 measurements
of standard white plate) |
| Dimension | 205*67*80mm |
| Errors between each instrument | ΔE*ab 0.4 |
| Weight | 400g |
| Battery | rechargeable lithium-ion
battery 3. 7V@ 3200mAh |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Screen | TFT 2.8 inch(16: 9) |
| Interface | USB |
| Storage | 100 Standards,
10000 Samples |
| Operating Temperature | 0-40°C(32-104°F) |
| Storage temperature | -20-S0°C(-4-122°F) |
| Optional accessory | miniature thermal
printer, powder test box |
Additional Information
| Weight | 1 kg |
|---|---|
| Dimensions | 33 × 12 × 15 cm |
