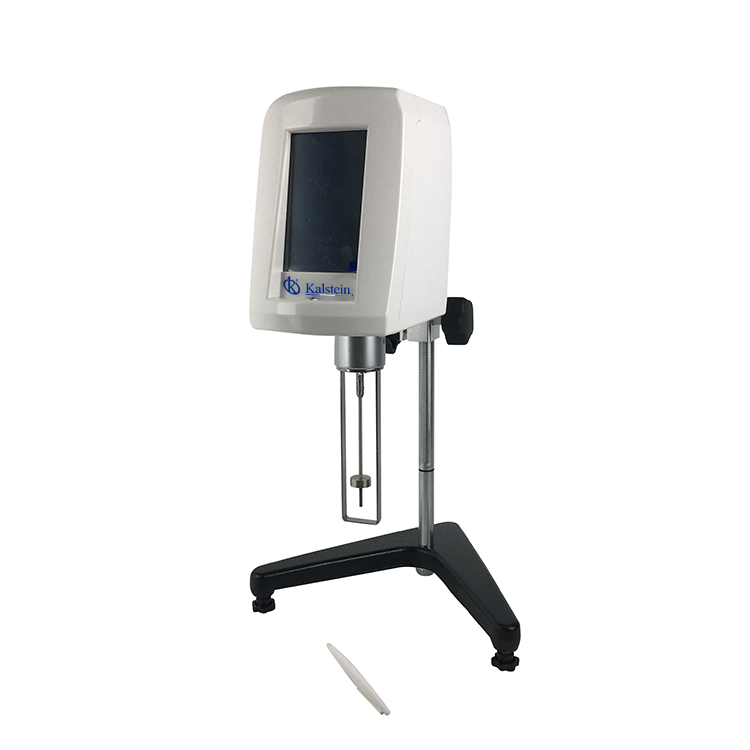

Lab Rotational Viscometer YR05853 – YR05854

ManufacturerKalstein

Description

Rotary viscosimeter perfect blend in touch screen technology, with a kind of fashion of modern high technology to measure the viscosity of rapid, accurate, convenient. Powerful, liquid crystal display (LCD) viscometer is far from before.

Self-built 30 groups of test program to help users to quickly and accurately obtain the viscosity and the related data of the sample.5 inches large color touch screen can be comprehensive, vividly show various parameters and working conditions.With measuring parameters, display more rich in content, operation is convenient, intuitive, high measurement precision, reading speed stability, strong anti-jamming ability, wide working voltage and other obvious advantages.Can completely replace similar imported equipment, leading the new trend of science and technology of domestic viscometer.

Features
  • The ARM technology, built-in Linux system.
  • Simple operation interface, through the test program to create and save data
  • Viscosity test analysis quickly and easily
  • Viscosity measurement value accurately, each range with computer automatic calibration and high precision, small error
  • Shows rich content: in addition to viscosity, and temperature, shear rate, shear stress, the measured value of full range value percentage (graphics), the overflow alarm, automatic scanning, the rotor speed under the combination of maximum measuring range, date, time, etc.And in the case of the known density kinematic viscosity, greatly meet the measurement requirement of the user
  • The function is all ready, but timing measurement, self-built 30 test program, access 30 group measurement data, the viscosity curve, print data and curve in real time, etc.
  • Lead level, the level adjustment intuitive convenient
  • Optional temperature probe, viscometer constant temperature bath, thermostatic cup, printer, standard viscosity sample (standard silicone oil), etc.
  • The operating system in English and Chinese.
  • Widely used in the need to measure the viscosity of fluid and fluid under high temperature and melting.Include paint, coatings, cosmetics, printing ink, paper pulp, food, oil, latex, starch, solvent-based adhesives, biochemical products, etc.
Technical Specification
Model YR05853 YR05854
Control/display mode 5 inches color touch screen
Speed(r/min) 3/6/12/30/60 0.3/0.6/1.5/3/6/12/30/60
Measuring rangemPa.s
1~100,000 1~2,000,000
(Measuring 10 under low viscosity, equipped with 0 # rotor)
Rotor 1, 2, 3, 4#( standard)0#Rotor( standard)
Measurement error (Newtonian liquid) ±2%
Repetitive error (Newtonian liquid) ±1%
Timing function standard
Temperature measurement function The standard temperature sensor interface temperature sensor (selected)
Automatic scanning function Automatic scanning and recommend the best combination of rotor and speed
According to maximum measuring range Combination of rotor and speed automatically according to the selected viscosity range can be measured
Should show shear/shear rate standard
Automatic display kinematic viscosity Need to input the density of the sample
Self-built measurement program Can save up to 30 groups (including the rotor, rotational speed, temperature, time, etc.)
Save the measurement results Can save up to 30 sets of data (including viscosity, temperature, rotating speed of rotor, and the shear rate, Shear stress, time, density, kinematic viscosity, etc.)
Viscosity curve Real-time display viscosity curve
Print Data, curve can print (standard equipped with print interface, to choose and buy a printer)
Data output interface standard
Constant temperature parts Option (viscometer constant temperature trough, thermostatic cup, etc.)
Working power supply Wide working voltage (110 v / 60 hz or 220 v / 50 hz)
Overall dimensions 300 × 300 × 450(mm)

Additional information

Weight 8 kg
Dimensions 45 × 35 × 41 cm
Modelo

YR05853, YR05854
