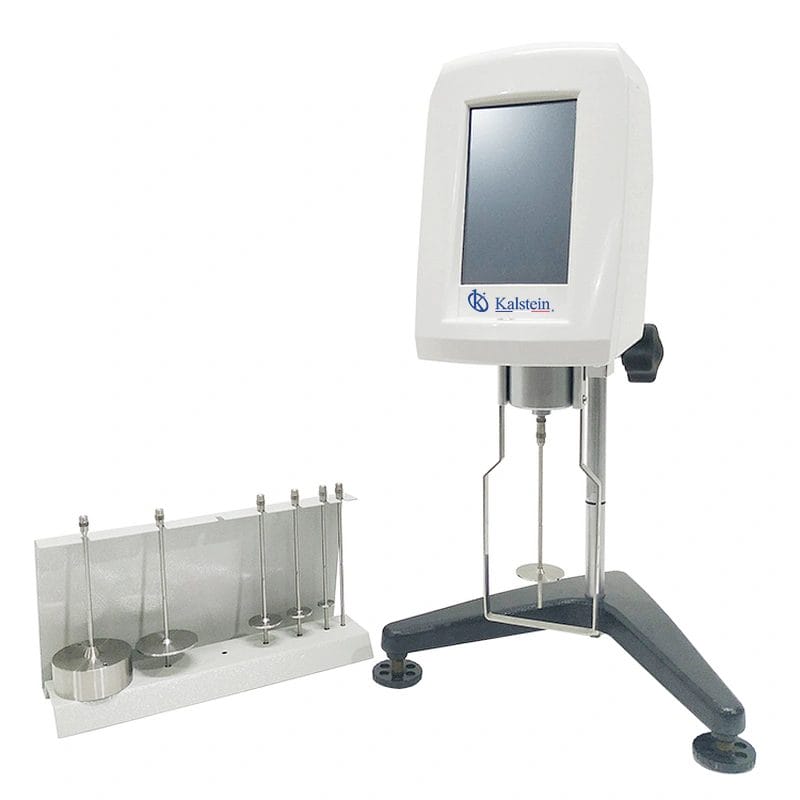

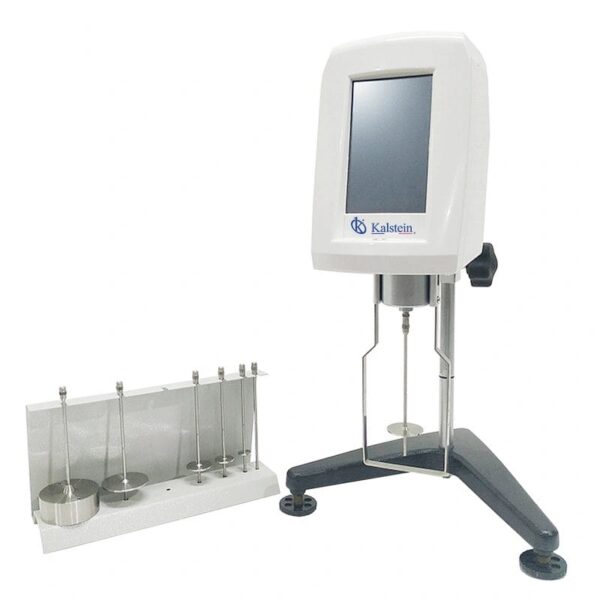

Brookfield Viscosity Tester YR05860 // YR05864

ManufacturerKalstein

Description

Perfect integration of touch-screen technology, fast, accurate, easy to measure viscosity. Stepless debugging, can measure super high viscosity of the sample.

5-inch color touch screen can be comprehensive, visual display of a variety of parameters and working conditions.

It has many advantages, such as many measuring parameters, rich display content, convenient operation, intuitive reading, high measuring precision, stable rotational speed, strong anti-interference performance, showing the curve of shear rate and viscosity, and so on.

Features
  • Adopt ARM technology, built-in Linux system. The operation interface is simple and clear, through the creation of test program and data analysis, the viscosity test is carried out quickly and conveniently.
  • The viscosity test value is accurate: each measuring range is automatically calibrated by a computer, the precision is high, and the error is small
  • Display is rich: in addition to viscosity (dynamic viscosity and kinematic viscosity), there are also temperature, shear rate,shear stress, measurement value as a percentage of the full range value (graphic display, range overflow alarm, automatic scanning, Maximum measurement range, date, time and so on under current rotor speed combination. Show kinematic viscosity when density is known.
  • Complete functions: timing measurement, self-built 30 groups of test programs, access to 30 groups of measurement data, real-time display of viscosity curves, printing data and curves
  • Front level: level adjustment is intuitionistic and convenient
  • Showing the curve of shear rate versus viscosity: the range of shear rate can be set, and displayed on the computer in real time; Curve of time – to – viscosity can also be displayed
  • Optional Pt100 temperature probe: wide temperature range, ranging from -20 ℃ to 300 ℃, and measuring precision 0.1 ℃
  • Optional accessories rich: ULR rotor, temperature sensor, viscometer special thermostat bath, thermostat cup, printer, standard viscosity sample (standard silicone oil), etc.
  • The measurable range is very large, ranging from 100 to 320 million MPA.
  • Widely used in paint, paint, cosmetics, ink, pulp, food, oil, starch, solvent adhesive, latex, biochemical products and other high viscosity industries.
Technical Specification
Model YR05860 YR05861 YR05862 YR05863 YR05863-1 YR05864
Display 5-inch color touch screen
Test range (mPa.s) 100-13,000,000 200-26,000,000 800-104,000,000 100-40,000,000 200-80,000,000 800-320,000,000
Speed (r/min) 0.3–100 infinitely variable speed ,
a total of 998 speed options
0.1–200 infinitely variable speed , a total of 2000 speed options
Rotor R2 – R7(6 rotors, Standard), ULR(Optional for low viscosity material)
Sample volume 500 ml
Test error ±1% (Newtonian liquid)
Repetitive error ±0.5% (Newtonian liquid)
Interface Two RS232 interface
Power Wide voltage work (110V / 60Hz or 220V / 50Hz)
Packing 580*350*350mm & 440*380*450mm
Function Show shear response / shear rate; Timing function
Show curve: Time-viscosity curve
Show curve: Temperature-viscosity curve(should optional temperature probe)
Show curve: shear rate and viscosity curves(should optional PC software)
kinematic viscosity: Density of samples to be entered
Automatic display of the selected combination of rotors and rotational speeds in a measurable range of viscosity
Self-built Measuring Procedures: Save 30 groups (including rotor, speed, temperature, time, etc.)
Preservation of measurements: Save 30 sets of data (including viscosity, temperature, rotor, speed, shear rate, shear stress,time, density, kinematic viscosity, etc.)

Additional information

Weight 11 kg
Dimensions 45 × 35 × 49 cm
Model

YR05860, YR05861, YR05862, YR05863, YR05863-1, YR05864
