Manufacturer: Kalstein

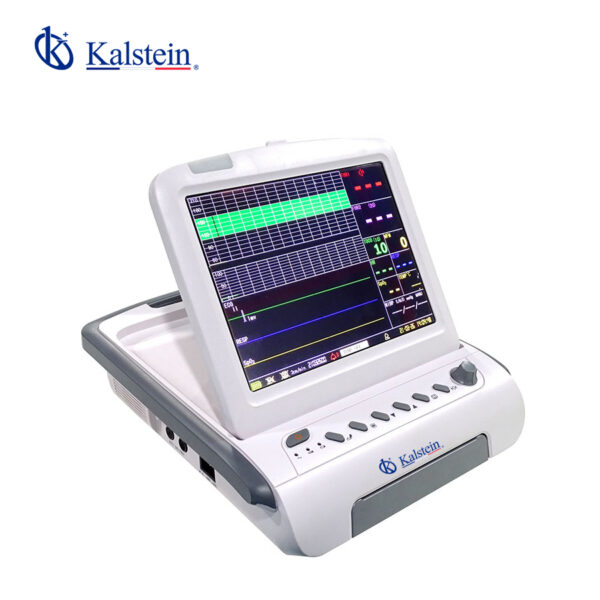

10.2 inch large-screen color TFT display, digital display and waveform oscilloscopeof twins heart rate (FHR) and uterine contraction pressure (TOCO) value;Directly viewing 1:1 scale of display and print out waveform;7-wafer impulse ultrasound transducer, confugured with special HR self correlation reading algorithm to ensure correct and reliable fetal hear rate (FHR) measurement;Auto power failure protection and reliable rechargeable Li-ion battery can realize continual monitoring funciton.
Model | YR02181 |
Fetal heart rate | |
Method of measurement | Ultrasound doppler |
Measuring range | 50-240 BPM |
Measurement tolerance | Less than ± 1 BPM |
Scope of the fetal heart rate curve | 50-240 BPM |
Fetal heart rate numerical display oscilloscope | 50-240 BPM |
Ultrasound working frequency | 2 MHz, 2.5 MHz |
Ultrasound output intensity | <5 mW / cm2 |
FOR CO | |
Method of measurement | External measurement |
Measuring range | 0-100 unit |
Numerical display range of uterine contraction pressure | 0-100 unit |
Non-linearity tolerance | less than 10% |
Auto-zero function | Yes |
General specifications | |
Fetal movement record
|
manual control button label |
automatic identification of fetal movement | |
Display | 10.2 “color TFT-LCD (800RGB” 480) |
Event mark | 9 available |
Recording mode | Thermal matrix printer |
Recording paper | 112mm x 100mm Folded Thermal Printing Paper |
Paper feed speed | 1,2,3cm / min 3 options |
Audible and visual fetal heart rate alarm | low limit 120 BPM, upper limit 160 BPM |
Alarm activation time | <3 s |
Printer failure alarm | Empty paper alarm |
Output volume | Speaker 2-3W Adjustable volume |
Power supply | AC: 100-240 V 50/60 Hz ± 1 Hz 40 VA |
DC | 14.4V / 2000mAh rechargeable Li-ion, continuous work> 4h |
Security level | Class l, type B |
Size | L296mm x W312 mm x H92 mm |
Net working capacity | Yes |
Weight | 6 kg |
---|---|
Dimensions | 41,7 × 30,5 × 37,5 cm |
