Doppler Fetal Monitor YR02180

Manufacturer: Kalstein

Description

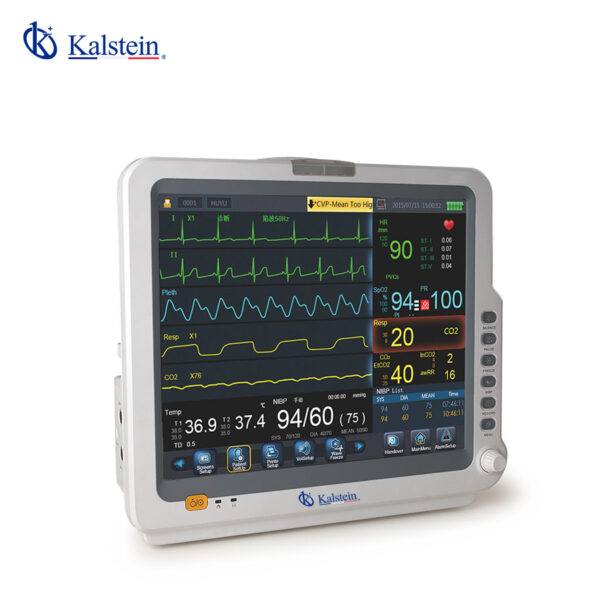

  • 17-inch LCD screen 2 slots Semi-Modular Parameter Patient monitor can be used in OT and ICU. 6 standard parameters: ECG, SPO2, TEMP, NIBP, RESP, PR/HR
  • Standard Configuration: 5-lead ECG, RESP, Dual-Temp, SpO2, NIBP
  • Optional: Touch screen, Masimo/Nellcor SpO2, Dual-IBP, AG, C.O., BIS, 3/12-lead ECG, Suntech NIBP, EtCO2, Thermal Recorder, ICG, Trolley, Wall mount
Technical Specifications
Model YR02180
ECG
Lead mode 5 Leads(RA,LA,LL,RL,V)
Connection method I, II, III,AVR,AVL,AVF,V
Lead Mode 3 Leads (RA,LA,LL)
Connection method I, II,III
Gain x250, x500, x1000, x2000
Accuracy ±5%
Resolution 1bpm
Sensitivity >200(uVp-p)
Differential input impedance ≥5MΩ
ST segment Monitoring Range
Measure Range -1.0~+1.0mV
Measure Accuracy -0.8mV~+0.8mV
Heart Rate
Measuring range 40~240bpm
Accuracy ±3bpm
Resolution 1bpm
Sensitivity >200UVp-p
Respiration
Method Impedance between R-F(RA-LL)
Measuring Impedance Range 0.3~3.0 MΩ
Bandwidth 0.1~2.5Hz
Respiration Rate Adult: 7~120BrPM
Neo/Ped 7~150BrPM
Resolution 1 BrPM
Accuracy ±2 BrPM
NIBP
Method Oscillometric
Measuring Interval in AUTO Mode 1,2,3,4,5,10,15,30,60,90,120,180,240(Min)
Measuring Period in STAT Mode 5 Min
Pulse Rate Range 40~240bpm / 40~150bpm
Alarm Type SYS, DIA, MEAN
Resolution
Pressure 1mmHg
SPO2
Display Number of SPO2,waveform of capacity,Pulse
Measuring range 0~100%
Resolution 1%
Accuracy 70~99% (±2%)
Pulse rate range 0~300bpm
TEMP
Channel 2
Measuring and Alarm Range 0~50ºC
Resolution 0.1ºC
Accuracy 0.1ºC
Actualization interval about 1 Second.
Average Time Constant <10 Second.

Additional information

Weight 8 kg
Dimensions 57 × 39 × 53,5 cm
