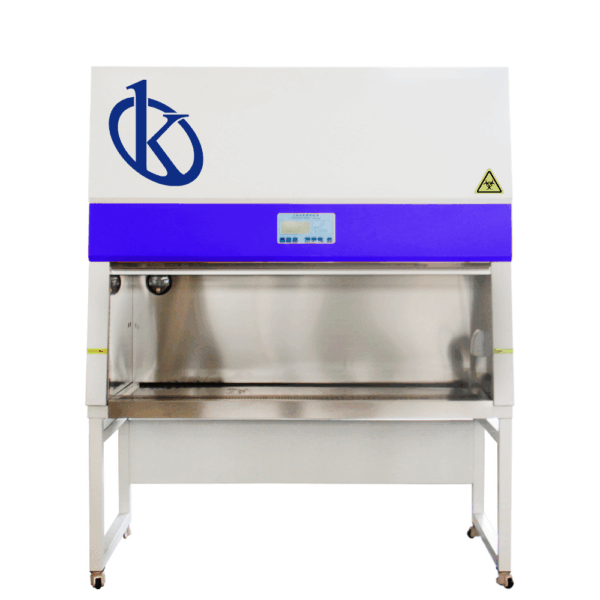

Biological Safety Cabinet 100% Exhaust Class II A2 Biosafety Cabinet YR05704 // YR05707

ManufacturerKalstein

$3.267,00$5.445,00

ManufacturerKalstein

Product Description

  • Air curtain isolation design prevents internal and external cross-contamination, 30% of the air flow is discharged outside and 70% of the internal circulation, negative pressure vertical laminar flow, no need to install pipes.
  • The glass door can be moved up and down, can be positioned arbitrarily, is easy to operate, and can be completely closed for sterilization, and the positioning height limit alarm prompts
  • The power output socket in the work area is equipped with a waterproof socket and a sewage interface to provide great convenience for the operator
  • A special filter is installed at the exhaust air to control emission pollution.
  • The working environment is made of high-quality 304 stainless steel, which is smooth, seamless, and has no dead ends. It can be easily and thoroughly disinfected and can prevent corrosion by corrosive agents and disinfectants.
  • It adopts LED LCD panel control and built-in UV lamp protection device, which can only be opened when the safety door is closed.
  • With DOP detection port, built-in differential pressure gauge.
  • 10° tilt angle, in line with the human body design concept
Technical Specifications
Model YR05704 YR05705 YR05706 YR05707
Cleanliness Class 100@≥0.5μm (US Federal 209E)
Number of colonies ≤0.5pcs/dish·hour (Φ90mm culture plate)
Average wind speed Inside the door 0.38±0.025m/s
Middle 0.26±0.025m/s
Inside 0.27±0.025m/s
Front suction wind speed 0.55m±0.025m/s(30% Efflux)
Noise ≤65dB(A)
Voltage AC single-phase  220V/50Hz
Maximum power consumption 400W 500W 600W 700W
Weight 170KG 210KG 250KG 270KG
Working area W1×D1×H1 840×650×620 1040×650×620 1340×650×620 1640×650×620
Overall dimension W×D×H 1000×800×2100 1200×800×2100 1500×800×2100 1800×800×2100
High efficiency filter specification and quantity 780×490×50× 1 520×380×70× 1 820×380×70× 1 1120×380×70× 1
Specification and quantity of fluorescent lamp/ultraviolet lamp 12W×1 / 20W×1 20W×2/20W×1 30W×2/30W×1 30W×2/30W×1

Additional Information

Weight N/A
Model

YR05704, YR05705, YR05706, YR05707
