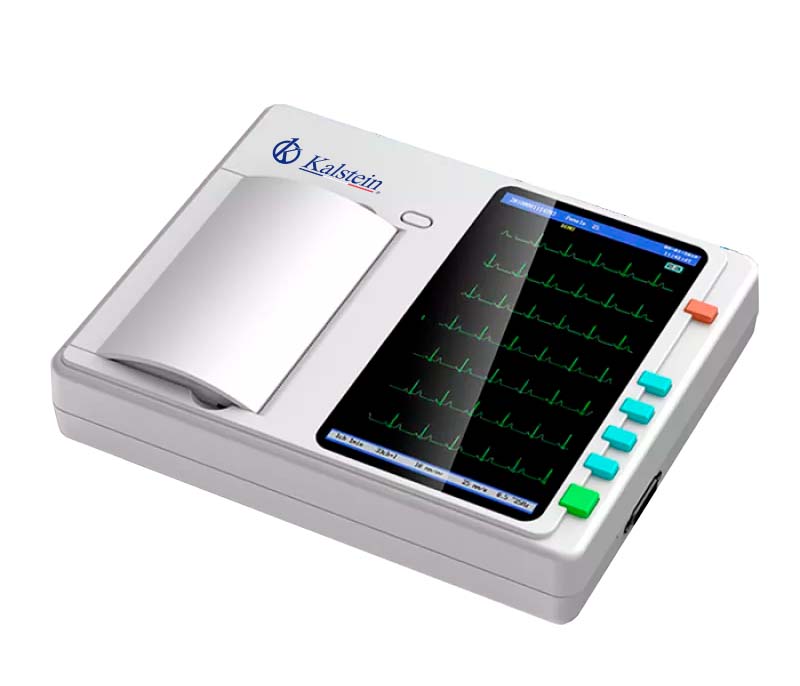

YR05159 12 Channel 12 Lead 6 Channel Medical Ecg Machine

Manufacturer: Kalstein

Manufacturer: Kalstein

Product Description

The 12-channel ECG machine is an electrocardiograph that can collect 12-lead ECG signals simultaneously and print ECG waveforms with thermal printing system. The EKG is commonly used to detect abnormal heart rhythms and to investigate the cause of chest pains. An EKG records the electrical activity of the heart. The heart produces small electrical impulses that travel through the heart muscle to cause the heart to contract. These impulses can be detected by the ECG machine.

Technical description
Model YR05159
Elements specification
Characteristics 7 ″ screen,

touch screen

Supports Ecg analysis capabilities

Guide 12 standard conductors
prospect acquisition synchronously 12 leads
Input circuit Floating; Defibrillator protection circuit
Input impedance ≥50MΩ
Input circuit current ≤0.0.05μA
Record  mode Automatic: 3CH × 4 + 1R, 3CH × 4,

3CHx2 + 2CHx3,3CHx2 + 2CHx3 + 1R, 6CHX2;

Manual: 3CH, 2CH, 3CH + 1R, 2CH + 1R;

Rhythm: any selectable lead.

Filter EMG filter: 25Hz / 30Hz / 40Hz / 75Hz / 100Hz / 150Hz
DFT filter: 0.05Hz / 0.15Hz AC filter: 50Hz / 60Hz
CMRR > 100dB
Patient current leak <10μA
Input circuit current <0.05 µA
Frequent response 0.05Hz ~ 150Hz (-3dB)
Sensitivity 2.5mm / mV, 5mm / mV, 10mm / mV, 20mm / mV
Anti-baseline drift Automatic
Constant time ≥3.2s
Noise level <15μVp-p
Paper speed 12.5mm / s, 25mm / s, 50mm / s
Recording mode Thermal printing system
Paper specification Sun-7031: 80mm x 20m paper roll Sun-7062: 120mm x 20m paper roll
LCD screen 7 ″ graphic LCD
Safety rating IEC60601-1 class I, type CF
Power supply AC: 100 ~ 240V, 50 / 60Hz, 30VA ~ 100VA
Fuse AC220V ± 10% 2 * Φ5 × 20mm, T2A / 250V AC time delay

Additional Information

Weight 3 kg
Dimensions 31 × 27 × 17 cm
