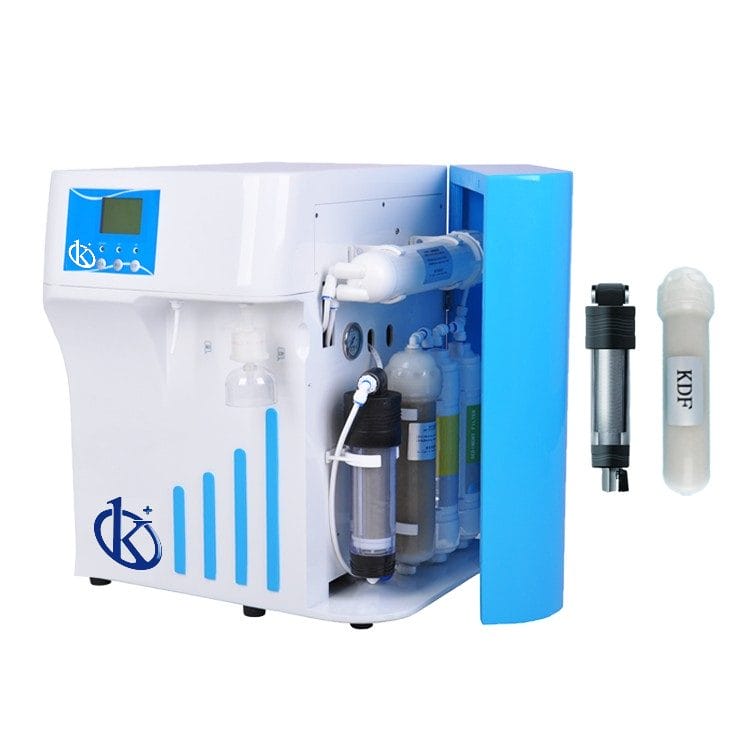

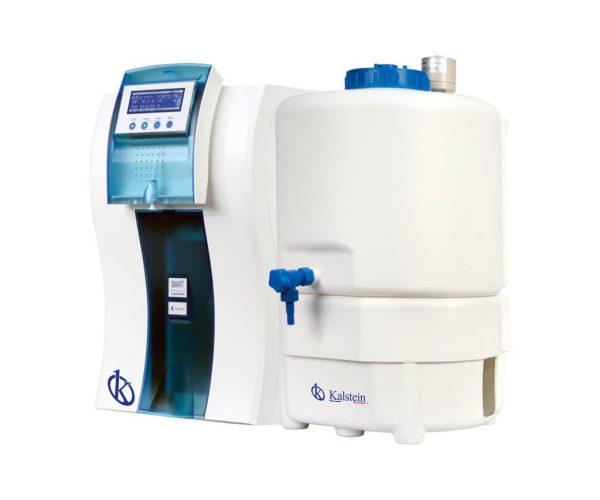

Water Purification System YR54 / YR54-3

Manufacturer: Kalstein

Manufacturer: Kalstein

Product Description

YR Water Purification System is a compact solution that combines the production of pure water and ultra-pure water in a single unit- eliminating the need for a pre-treatment stage upstream of the ultra-pure water system

Simplest operation
  • Just four control keys allow for rapid operational readiness to improve user experience
  • Everything else is automatically managed by the built-in microprocessor control system
  • PIN-coded access to software set points prevents unauthorized changes to operation or system settings
Rapid cartridge replacement
  • One,two,three…rapid catridge change due to quick-connection
  • Water purification progresses through separate modules, each with quick connects for simple individual replacement
  • Streamlined apperance and intelligent structural design with easy-access door means system can be located under bench
  • Quick and easy sanitizationa and replacement of consumables reduce maintenance time
Reliable work
  • Integrated feedwater check
  • Good quality feedwater is a basic requirement for the degree of purity of the water produced, as well as for the long service lives of all purification stages.
  • An additional measuring cell permanently monitors the conductivity of the feedwater. Any exceeding of the limiting value is immediately displayed.
Conductivity measurement
  • The high-precision conductivity measuring cells are individually measured out and each value deposited in the system
  • The electronics are automatically calibrated and controlled prior to each measurement.
Temperature compensation
  • Platinum chip temperature sensors with an accuracy of +/- 0.1Β° C are used here
  • The temperature compensation can be switched off. USP requirements are fulfilled and optimal measurement reliability ensured.
Flexible dispensing
  • Remote water dispenser with ergonomical design comforts your water delivery experiences.
  • The height and direction of dispenser is adjustable for different positions. Action radius is 25cm
  • The dispensing pistol can be removed from dispenser arm to expand your working area.
  • Full recirculation guarantees water quality at point-of-use
  • Auto-volume dispense from 100ml to 60 liters and repeat dispensing
  • Foot-pedal activation is available to allow hands-free delivery in a clean room, further reducing the possibility of contamination.
Clear information!
  • The large easy-to-read LCD display affords the user optimal convenience, with indication on:
  • The temperature in Β°C
  • The temperature-compensated conductivity/resistivity of water
  • The operating mode status, such as production, stand-by
  • Liquid level in water tank
  • Consumable changing reminder
Water leakage protection!
  • Water leakage sensor is linked to the microprocessor system to automatically cut off water input and activate alarm in the situation of leakage
Space saving!
  • Each Smart series can be optional installed space-savingly under the bench, in a lab table, or mounted directly to the wall(without the need for extra mounting material).
  • Remote dispenser can be connected to the main system at a distance of 3 meters. You can get water from height adjustable arm, or hand-held dispensing at each point- of-use

Additional Information

Modelo

YR54, YR54-1, YR54-2, YR54-3

Inlet Water Requirement

tap water, >1.0kg/cm2, 10~40℃

Output (pure water)

15 L/hr, 30L/hr

TOC

1~10ppb (online TOC monitoring )

Pyrogens

<0.001EU/ml

Measure

525Γ—610Γ—770mm (main unit) 500Γ—420Γ—595mm (water tank) 585Γ—410Γ—260mm (dispenser)

Weight

37KG (main unit) 9KG (water tank) 4KG (dispenser)", 38KG (main unit) 9KG (water tank) 4KG (dispenser)"
