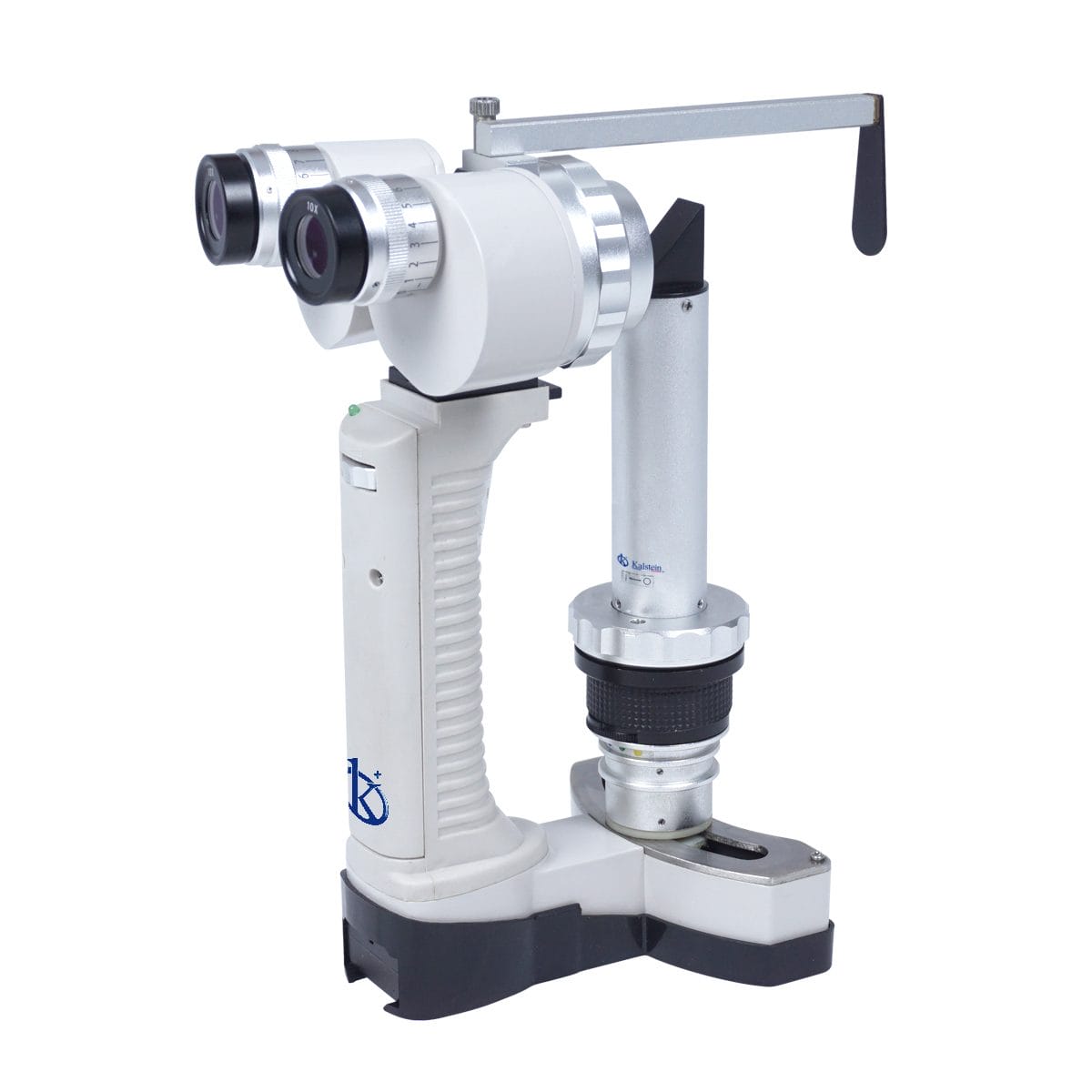

Veterinary Handheld Slit Lamp (2-Magnification) YR06199

ManufacturerKalstein

Description

The Veterinary Handheld Slit Lamp (2-Magnification) YR06199 is an exceptional portable diagnostic tool tailored for precision and user convenience. Equipped with advanced features like high-brightness LED illumination reaching up to 30,000 LUX and a cold-light illuminator, this device ensures optimal visibility. Weighing only 700g, including the battery, and featuring a telescopic forehead rest, it offers comfort during examinations. Its adjustable slit width, alongside various filters such as cobalt blue and heat absorption, enhance its versatility for thorough eye diagnostics in veterinary patients. This lamp provides two magnification levels, 10X and 16X, for detailed examinations, making it an indispensable asset for veterinary professionals working in the field.

Market Price Overview

Handheld slit lamps in the current market, considering their diverse features and capabilities, usually range from approximately $2,500 to $3,700. This positions the YR06199 as a competitive option, offering veterinary practitioners a high-performance diagnostic device at an attractive price range.

Frequently Asked Questions

What is the battery life of the slit lamp?
The slit lamp can operate continuously for 5-6 hours on a fully charged battery.

Is the device suitable for use with animals?
Yes, the Veterinary Handheld Slit Lamp is specifically designed for veterinary use, ideal for examining animal eyes.

How portable is the device?
Weighing only 700g, this slit lamp is highly portable and convenient for transport between different locations.

Advantages and Disadvantages

Advantages: The major advantages of this device include its exceptional portability and extended battery life, making it suitable for fieldwork. Its high-brightness LED provides superb clarity, and the adjustable slit width allows for personalized examinations. The range of filters enhances its diagnostic versatility.

Disadvantages: The device is priced at the higher end of the spectrum, which might be a concern for smaller practices with budget constraints. Additionally, although the battery life is considerable, it may require monitoring during prolonged usage.

Field Use

The Veterinary Handheld Slit Lamp is perfect for practitioners working in dynamic or remote environments. Its portability is invaluable for equine veterinarians and those dealing with large animals. The adjustable magnification and diverse filters ensure accurate diagnostics in varied field conditions.

Recommendations

To ensure optimal performance of the YR06199, it’s recommended to regularly check and charge the battery before any fieldwork operations. Keeping the lens and filters clean is essential for clear diagnostics. Interested veterinarians can visit the Kalstein Plus platform for an instant quote and firsthand exploration of the device’s benefits.

Features

  • High-brightness LED with 30,000 Lux
  • Adjustable slit width: 0-12mm
  • Two magnifications: 10X and 16X
  • Portable and lightweight: 700g
  • Comprehensive filter set (heat absorption, yellow, redfree, cobalt blue)
  • Long-lasting battery operation: 5-6 hours

Technical Specifications

Model Item YR06199
Microscope
Microscope Type Converging
Objective Lens 1.0X、1.6X
Eyepiece 10X
Total Magnifications 10X、16X
Working Distance 81mm
Intraocular Distance 45mm―78mm
Diopter Adjustment -8D―+8D
Illumination
Slit Width 0―12mm Continuous
Slit Height 1-12mm
Slit Angle ф0.2mm,ф1mm,ф5mm,ф12mm
Filters Heat Absorption; Yellow; Redfree(Green); Cobalt Blue
Illumination Bulb High-Brightness White LED
Brightness ≥30000Lux
Power
LED Working Voltage d. c. 3 V
Battery Li-ion Battery; 7.4V, 680mAh. Full Battery can supply 5-6 hours continuously
Weight and Dimension
Dimension 169.5mm×109.5mm×228.5mm
Weight ≤4kg (Including Battery)

Additional information

Weight 5 kg
Dimensions 29 × 34 × 48 cm
