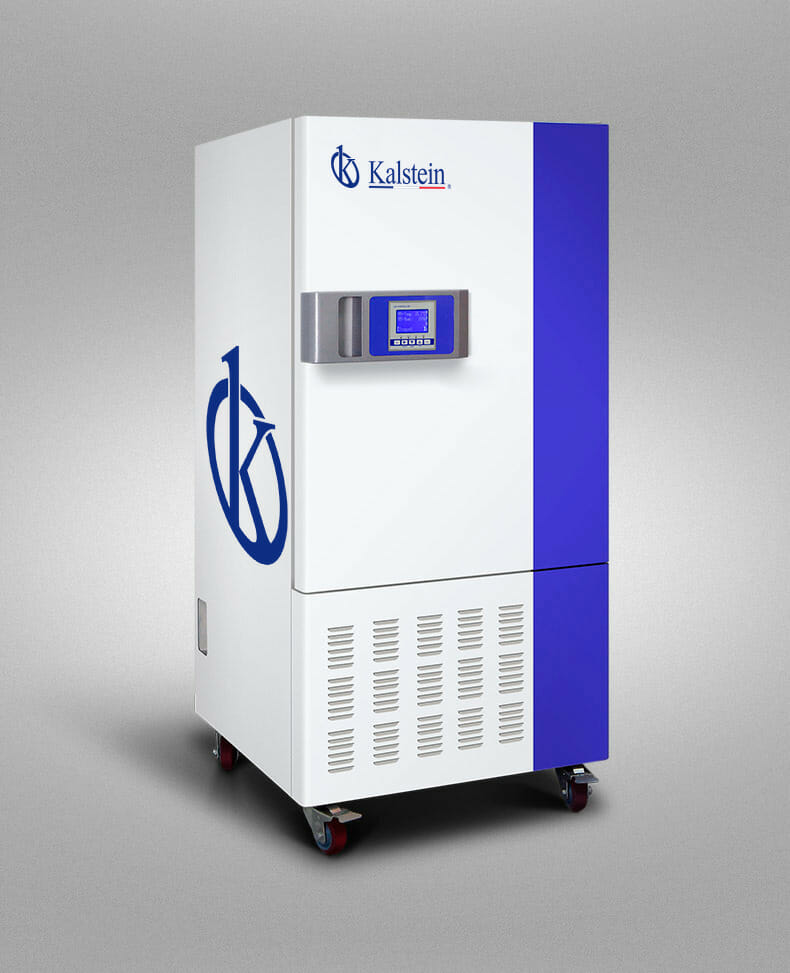

Strong Illumination Stability Test Chamber YR05353 // YR05353-2

ManufacturerKalstein

Description

Strong illumination stability test chamber for pharmaceutical companies to evaluation of drug failure, accelerated testing and long-term trials of special equipment.

Product introduction
  • World famous compressor: balanced refrigeration technology, auto defrost, multiple security system, long time running, environmental protection, high efficiency and energy saving.
  • Auto-defrost function: original rapid heat pump defrost technology, for continuous operation, effectively prevent frost because of continuous operation of evaporator.
  • Refrigeration effect manual control system: meet customer’s terrible work environment.
  • Imported DuPont SUVA R134 an environmental refrigerant. For cleaner world, for better work condition.
  • To save energy, to reduce the cost.
ALLFLOW Perfect Air Current Cycling
  • ALLFLOW air current cycling: perfect forced convection, maximum samples number of working room, minimum temperature recovery time after the opening, world famous axial fan, perfect air current design, ensure an ideal result of samples culture.
  • ALLFLOW air current cycling: keep temperature continuous and stable, keep humidity continuous and stable, ensure perfect sample culture environment.
ALLSENS Programmable PID Control
  • Integrated, dot-matrix LCD display, Chinese and English subtitles, design for the highest operational comfort.
  • Display parameters: temperature, humidity, cycle, run time, run/stop.
  • Adaptive PID controller precisely controls the temperature and humidity, prevent temperature soaring, keep working room temperature stable and uniformity.
  • User password protection, built-in multifunctional memory menu, connect to multiple devices (up to 16 units), real-time monitoring.
  • Programmable multi-sections control, to meet customer needs, temperature and humidity control up to 30 sets. Time setting: 0-99h,0-9999m, programs can be executed automatically cycles.
  • Set operations with beep tips.
  • Remote control of computer software, professional operation ALLSENSTM software (optional)
Efficient Isolation Design
  • Design of double-layer isolation, reduce power consumption, environmental protection concept, energy conservation.
  • Internal isolated door design, easy observation of working room samples, keep temperature stability of working room.
Excellent Imported Sensor
  • Imported industrial sensor PT100, short response time, low self-heating temperature.
  • Imported humidity sensor, aerospace material, no maintenance, precision humidity control level.
Pro-BrightTM Professional Lighting systems
  • Equipped with specially design Pro-BrightTM light system in the chamber that can simulate daytime and nighttime natural light, to meet specific lighting conditions.
  • Effective compensation of the heat generated by the light, through a sophisticated control system to ensure that the temperature is constant.
  • Three-dimensional light source, evenly distributed lighting, use the stainless-steel mirror as reflective material to make the lighting better, at the same time lighting degree can be adjust.
  • Better lighting systems, tube and the chamber are effectively insulated by double glazing and a ventilation hole cooling.
  • With ALLIGENTTM humidification system (only for the ALLIGENT-KG Comprehensive drug stability test chamber), provide the product a variety of climate simulations.
Ergonomic Design
  • Laboratory of classical color design, international fashion design, arc-shaped design, for highest operational comfort.
  • Integrated design that contains original outside handle and LCD screen, ergonomic structure, comfortable viewing angle, convenient to open the outside door and operate interface.
  • Interval and number of mesh shelf can be adjusted according to customer requirements. Maximum capacity to meet customer needs.
  • Comfortable vertical structure, maximize work chamber, working room in the upper, convenient to take.
  • Double door design, easy observation samples, keep temperature stability, with bell-type lighting system.
Modern manufacturing processes
  • Sheet metal parts use laser cutting and CNC bending technology. Cold-rolled sheets use three line of acidification anti-rust technology. Incubator surface use workmanship of spraying plastics.
Easy to Clean
  • Internal surface is smooth and less weld, easy cleaning and maintenance.
  • Pull multilayer shelf design, less metal accessories, easy to clean.
  • Drainage design of chamber humidification collecting tank. User can discharge water as required to avoid bacteria.
Convenient Maintenance
  • Liquid crystal micro-computer controller with diagnostic function. Display operating parameters including historical record, temperature and humidity data.
  • Electrical control components and working room are installed separately. installed behind incubator, easy to maintenance.
Secure and Efficient Protection Concept
  • Multiple over temperature protection function, sound and light alarm.
  • Automatic double over temperature protection function.
  • All electronic components are UL certified.
  • All over temperature protection devices meet Germany standard DIN standard D12880 Class 3.1.
Technical Parameters
Product Model

ALLIGENT-KG

Comprehensive drug stability test chamber

YR05353
YR05353-1
YR05353-2
Convection Mode
Forced Convection
Control System
Thirty stages Microprocessor PID controller
Temp. Range
10~65℃(with lighting)/0~60℃(without lighting)
Temp. Accuracy
0.1℃

Temp. Fluctuation

(10-40℃)

±0.5℃
Temp. Uniformity(10-40℃)
±1
±1
±1.5
Illumination Range
0~6000LX(five stages adjustable)
Working environment
Ambient temperature:10~30℃, Humidity <70%
Insulation materials
Imported environmental protection type material
External Dimensions (H×W×D)
1410×650×680
1730×650×740
1700×745×930
Internal Dimensions (H×W×D)
760×510×390
1100×510×450
1050×600×640
Interior Volume (L)
150
250
400
Interior steel materials
Interior steel materials
Power Consumption (W)
1080
1100
1350
Power supply
AC220V/50Hz
Net Weight(KG)
107
135
158
Shipping Weight(KG)
132
162
186
Shipping Dimensions (H×W×D)
1610×750×830
1930×750×890
1900×840×1080

Additional information

Weight N/A
Dimensions N/A
Model

YR05353, YR05353-1, YR05353-2
