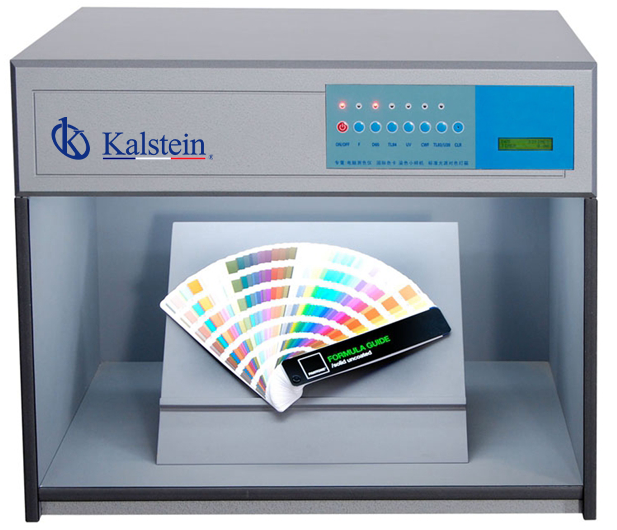

Standard Color Light Box YR05531

ManufacturerKalstein

Description

  • YR05531 color light box will show the using time, light source name and switch times of each light source.
  • Automatically switch and with the function of metamerism.
  • Without preheating, no flicker.
  • Law energy consumption and high luminous efficiency.
  • Equipped with whole sets of British and American standard light sources.
  • Contains A light source in American Standard
  • The name of light sources is changeable.
  • TILO is international famous brand.
Product Features
  • YR05531 color light box will show the using time, light source name and switch times of each light source.
  • Automatically switch and with the function of metamerism.
  • Without preheating, no flicker.
  • Law energy consumption and high luminous efficiency.
  • Equipped with whole sets of British and Americanstandard light sources.
  • Contains A light source in American Standard.
  • The name of light sources is changeable.
  • TILO is international famous brand.

YR05531 Six-light sources light box adopts fully computer-controlled light-touch buttons to switch light sources at will, and can permanently record the name of each light source, the use time and the number of switching times. lt has the function of testing the metamerism effect. lt is implemented in accordance with international standards (ISO, ASTM, DIN, BSI, ANSI, CIE), and passes the national measurement inspection with an authoritative test report.

Application Industry

YR05531 Six sources standard light box is suitable for color management in textiles, toys, printing and dyeing, plastics, paints, inks, printing, pigments, chemicals, ceramics, footwear, leather, hardware, food, cosmetics and other industries, used to accurately check the color deviation of items.

Technical Description
Model YR05531
Project parameters
Configuration F, D65, TL84, UV, CWF/TL83, A in Total Six Light Sources
Weight  28Kg
Size(L*W*H) 71 0x530x570 mm
Optional Accessory Light source diffuser, 45 degree standard stand

Light source

Name Color Temperature Power
D65 International standard Artificial Daylight 6500K 18W
TL84 Applied to stores in Europe, Japan and China 4000K 18W
CWF (Cool White Fluorescent) American Standard 4150K 18W
F “Sun-setting Light Yellow” incandescent light source

(imitation of sunset)

2700K 40w
UV Viewing under ultraviolet light to detect and evaluate

optical brighteners or fluorescent pigments

365mm 18w
A American shopwindow spotlight 2856K 60w
TL83 Warm White Fluorescent European Standard 3000K 18w

Additional information

Weight 38 kg
Dimensions 82 × 64 × 34 cm
Model

YR05531

Characteristic Feature

8 Light Sources
