Description

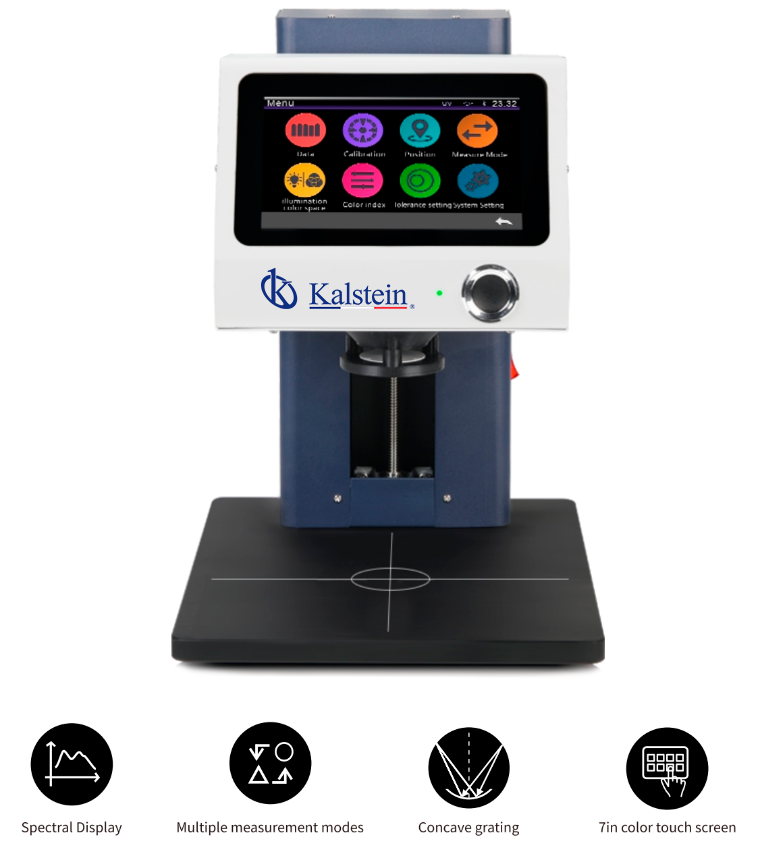

YR05481 spectrophotometer is a color measuring instrument that adopts D/8 (diffuse illumination, 8° direction reception, SCI includes specular reflection light) standard. , powder and other non-contact precision color measurement. It can be used for accurate color analysis and transmission in laboratories and R&D industries; it can also be used for accurate color measurement and color quality control in automated production lines.
Instrument Features
- Professional D/8 optical structure.
- Non-contact, D/8 optical structure measures the reflectivity and chromaticity value of objects.
- D/8 has wider applicability and supports color matching.
The measurement height is adjustable
The movable measuring head can be adjusted up and down according to the actual height of the measured object, and the measuring height can be stored, and the maximum support 160mm sample.
Simple to use and easy to operate
Simple operation interface, no need for complicated settings, non-professionals can also easily measure, touch-type large-screen measurement interface, real-time display of measurement data, more measurement functions are realized.
Various measurement modes
Support sample mode, quality control mode, continuous statistics mode to meet individual needs.
Application
Non-contact benchtop spectrophotometers are widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries. Its unique innovative design not only provides non-contact measurement solutions directly from the production line, but also ensures stable and high-precision measurement results.
Technical Description
| Model | YR05481 |
| Optical Geometry | D/8 (diffuse illumination, receiving in 8° direction, SCL includes specular reflection light); CIE No.15, GB/T3978, GB 2893, GB/T 18833, 1907724-1, ASTME1164, DIN5033 Teil7 |
| Light Source | Full spectrum LED light source |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256-pixel dual-array CMOS image sensor |
| Wavelength Range | 400-700nm, 10nm output |
| Measured Reflectance Range | 0-200% |
| Measuring Aperture | 020mm (010mm can be customized) |
| Non-contact distance | 3.0mm(+0.2mm) |
| Sample height | 0-160mm (Using the original support base plate) |
| Distance adjustment method | Manual adjustment (storable test height) |
| Measurement mode | Sample mode, quality control mode, continuous statistics mode |
| Locating | Camera locating |
| Color Space | CIE LAB,XYZ,Yxy, LCh,CIE LUV, Musell,s-RGB, HunterLab,Bxy,DIN Lab99 |
| Color Difference Formula | AE*ab,AE*94,AE*cmc(2:1),4E*cmc(1:1),4E*00,4E (Hunter), DINAE99 |
| Other Colorimetric Index | WI(ASTM E313, CIE/ISO,AATCC,Hunter), YI(ASTM D1925,
ASTM 313),, Metamerism index MI,Staining Fastness, Color Fastness, Strength, Opacity |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,075,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9, F10
(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference
Values/Graph, Color simulation, pass/fail result, display tolerance can be set |
| Measuring Time | Fast mode about 1.0s (0.2-1.5s adjustable) |
| Data Storage | Sample mode + quality control mode 18,000;Continuous statistical
mode 30,000, totaling no more than 48,000 |
| Repeatability | In the optimal measurement mode (when a single measurement time is
1.5 seconds): Spectral reflectance: within 0.1% of standard deviation: Chromaticity value: AE*ab within 0.04(After the instrument is warmed up and calibrated, measure the average value of the whiteboard 30 times at an interval of 5s) |
| Inter-instrument Error | Within AE*ab 0.25(Measured average value of 12 tiles of BCRA series II) |
| Measurement method | Single measurement, average measurement (2-99 times) |
| Dimension | 330*250*370mm |
| Weight | About 10Kg |
| Power | AC 24V, 3A Power adapter power supply |
| illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 7-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB |
| Language | Simplified Chinese, Traditional Chinese, English |
| Operating Environment | 0~40°C, 0-85%RH (no condensation), altitude: less than 2000m |
| Storage Environment | -20~50°C, 0-85%RH (no condensation) |
| Standard Accessory | Power adapter, manual, data cable, standard calibration board,
black calibration box |
| Notes | This model is specially suitable for streamlined production lines, in-depth function
customization will incur additional customization costs |
