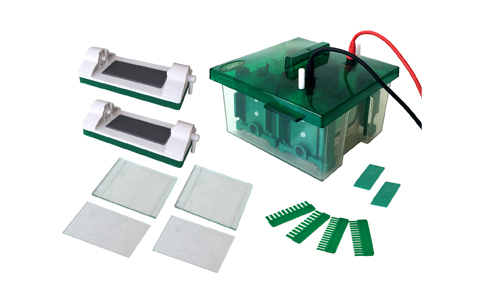

Mini-Protean Vertical Electrophoresis Cell YR03427

Manufacturer: Kalstein

Description

Vertical gel electrophoresis is a more complex set-up compared to horizontal gel system. Researchers normally use this system to separate proteins instead of nucleic acids. However, before you separate proteins, you need to disrupt the quaternary structure of proteins into the linear strand

Characteristic Feature
  • With two gel castings, can cast 1-4 plates of gels at the same time.
  • The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
  • With the gel casting in original position, no need to move glasses from gal making to elelctrophoresis running. It is more convenient to observe gel preparing through both sides of the glasses.
  • With the background color, making it easy to observe sample loading and electrophoresis running.
  • With protective strip of positive electrode, it can prevent producing bubbles and also protect platinum silk from damage.
  • Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
  • Auto-switch-off when the lid is removed.
Model YR03427
Glass plate size(W×L) 101×82 mm
Gel Size(W×L) 81×73 mm
Gel thickness 1.0mm
Gel amount 1~4(pieces)
Sample volume 11~60
Buffer Volume ~1200ml

Additional information

Weight 4 kg
Dimensions 40 × 31 × 32 cm
