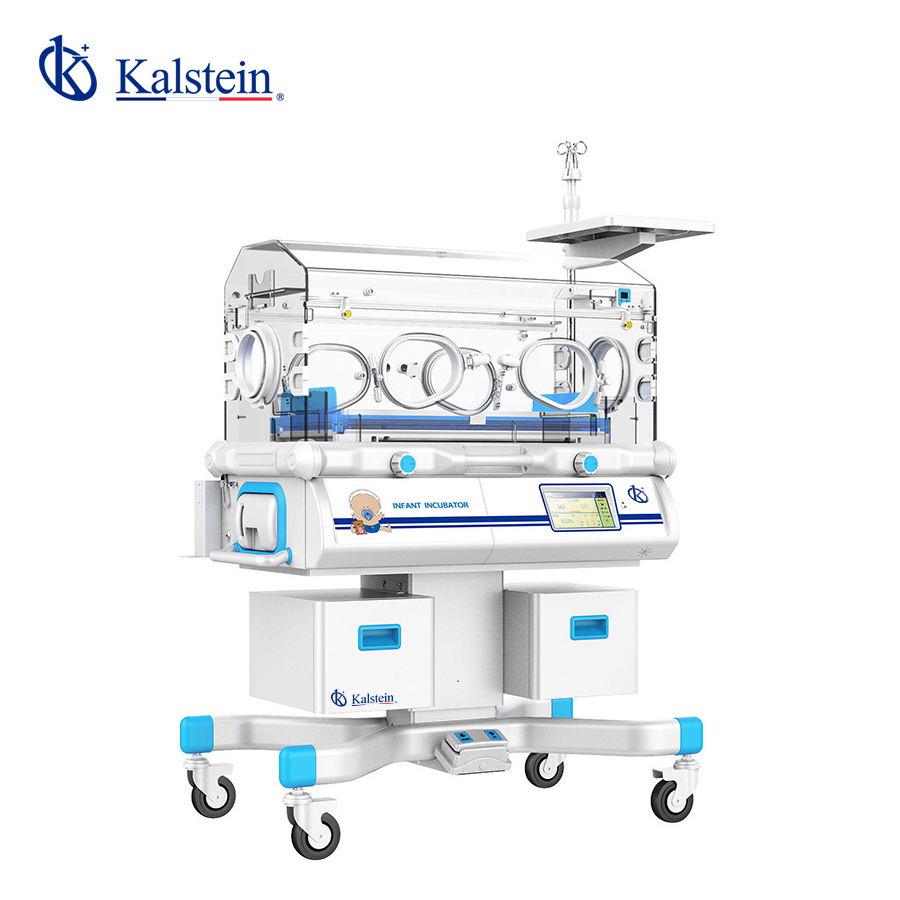

Infant Incubator YR02188

Manufacturer: Kalstein

Product Description

YR02188 infant incubator is designed with advanced thermoregulation system for neonate intensive care unit. Ultrasonic humidifier supplies low temperature and comfortable air flow inside of incubator. 40%~80% humidity adjustable range provides the suitable incubation environment for the patients. The double wall chamber design prevents the heating and humidity loss.

  • Servo-controlled humidification system maintains the relative humidity at a constant level in the incubator
  • Ultrasonic and low temperture nebulized humidification protects neonate from bacterias pollution
  • Microprocessor servo-controller ensures a precise and reliable temperature control
  • Set temperature, monitored air temperature and baby skin temperature and heating power are distinguished in display
  • Set and monitored humidity concentration are displayed separately
  • >37℃override temperature function
  • Self-checking function for safety affirmative
  • Audible and visible alarm indications for multiple failures with 3 priorities
  • Chord alarm notes nurse farther than 8meters, but leaves asleep baby uninterrupted
  • Aluminous framework for constant temperature keeping
  • Continuous adjustment of mattress inclination up to 10º
  • Drawer-type water reservoir is easily removable for cleaning and disinfection
  • Nature air cirulation system
  • Cupboard cabinet
  • RS-232 Connector
Application
  • The optical design of incubator with servo-controlled humidity and temperature keeps the baby in a stable environment virtually in any NICU for fragile neonate.
  • Widely applicable in all hospitals and clinics and optimize for preterm births or for some ill full-term babies.
Optional
  • X-ray cassette
  • Side door, front-rear door
  • Vertical height adjustable
  • Infant phototherapy unit(LED light or OSRAM tubes
Model YR02188
Air temperature control
Control of skin temperature
37 ° air temperature control
Reclining crib
Humidity display
Humidity control
Side door
Aluminum Heat Preservation Tank
Operating windows and access ports 2 ports, 4 windows
Cabinet
Adjustable working height
Additional rear door
Baby Scale Bed
Low noise DC motor

Additional Information

Weight 170 kg
Dimensions 112 × 69 × 159 cm
