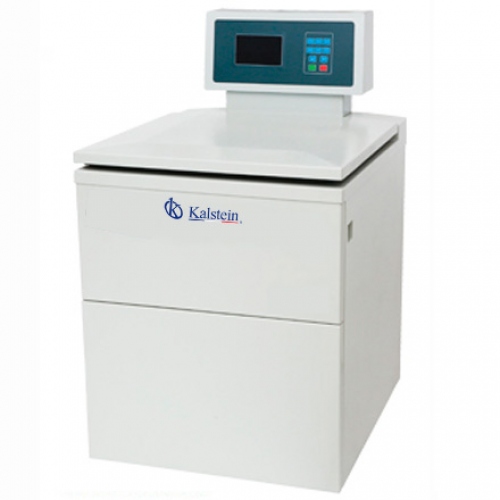

In this case, we present two models: YR0113 and YR0112. Both models are centrifuges used to collect microorganisms and cell samples. The maximum RCF of these high-speed centrifuges is 64983 g and its maximum speed is 25000 rpm. On the control system, both models work with a microcomputer control, an electronic lock and a variable conversion engine, which offers a high torque.
These refrigerated centrifuges work with an imported compressor unit that works with a refrigerant without CFC. This means that these models comply with environmental standards. Another great feature is that these are programmable machines, so the operating data can be stored automatically. The YR0113 model comes with an LCD screen and YR0112 with a LED screen with a touch panel, which makes the operation a lot. Other excellent features of these high-speed refrigerated centrifuges are:
Real speed conversation of speed and RCF is very convenient for operation. Finally, these models have 10 acceleration and deceleration level files for you to choose. On the ability of these models, you should know that the maximum is 1000 ml x 4. The temperature setting is -20 to 40 degrees celsius. The power supply is AC220V 50HZ 30A and the external dimensions are (LXWXH) 710MMX840MMX1200MM with a net weight of 290kg.
|RCF Max||52,000 xg||50 400 xg|
|Maximum capacity||1000ml x 4ml||1000ml x 4ml|
|Time Settings||1 min to 99 min|
|Temperature setting||(-)20 ~ +40°C|
|Compressor Unit||French Tecumseh Compressor Unit, R40Aa|
|Power supply||AC220V 50Hz 20A|
|Dimension (W×D×H)||710mm x 840mm x 1200mm|
|Packing Size (L x W x H)||890 x 960 x 1400 (mm)|
YR0112 con pantalla LED, YR0113 con pantalla LCD
(YR0112-1-1) Rotor de ángulo – 25000rpm – RCF: 64983 – Capacidad (ml) 1.5ml/2.2ml×24, (YR0112-1-2) Rotor de ángulo – 25000 rpm – RCF: 64983 – Capacidad (ml) 5ml×10, (YR0112-10) Rotor de flujo continuo – 8000rpm – RCF: 9500 – Capacidad (ml) 3000ml, (YR0112-11) Rotor de flujo continuo – 16000rpm – RCF: 28100 – Capacidad (ml) 1000ml, (YR0112-12) Rotor de flujo continuo – 10000rpm – RCF: 14800 – Capacidad (ml) 3000ml, (YR0112-2) Rotor de ángulo – 23000rpm – RCF: 60900 – Capacidad (ml) 10ml×16, (YR0112-3) Rotor de ángulo – 18000rpm – RCF: 40930 – Capacidad (ml) 50ml×8, (YR0112-4) Rotor de ángulo – 14000rpm – RCF: 30200 – Capacidad (ml) 250ml×6, (YR0112-5) Rotor de ángulo – 10000rpm – RCF: 17800 – Capacidad (ml) 500ml×6, (YR0112-6) Rotor de ángulo – 7000rpm – RCF: 9980 – Capacidad (ml) 1000ml×4, (YR0112-7) Rotor de microplacas – 4000rpm – RCF: 2236 – Capacidad (ml) 8×96well, (YR0112-8) Rotor oscilante – 5000rpm – RCF: 5470 – Capacidad (ml) 750ml×4, (YR0112-9) Rotor de flujo continuo – 14000rpm – RCF: 21500 – Capacidad (ml) 1000ml
