Product Description

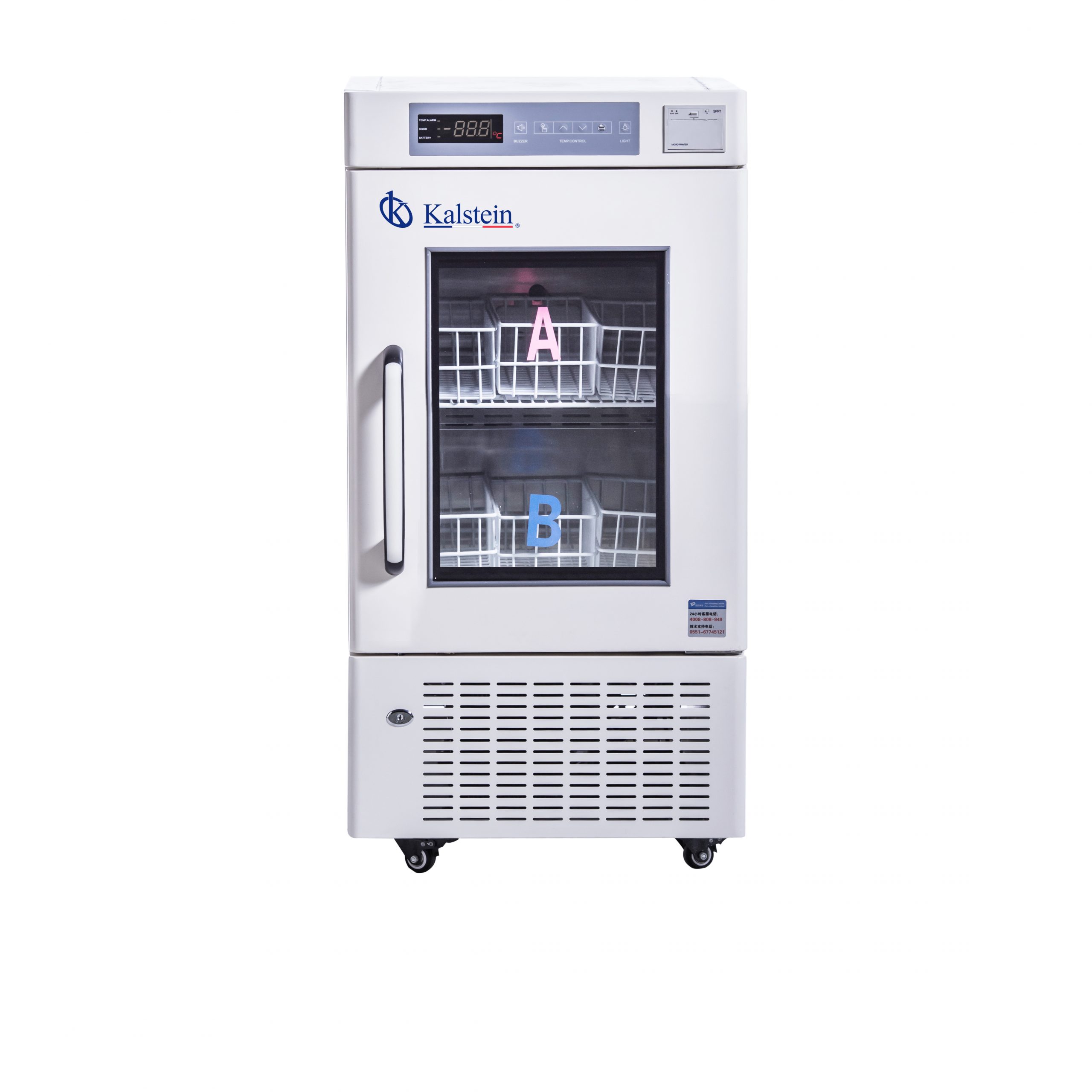

YR05091,108L three layer toughened glass door with heater and 340 stainless steel inner chamber
Features
- Accurate microprocessor controller to ensure consistent cabinet temperature 4±1°C.
- Specially designed forced-air cooling system to ensure frost-free cabinet and good temperature uniformity.
- Three layer toughened glass door with heater to avoid condensation.
- 304 stainless steel inner chamber for friendly using and easy cleaning.
- Wide available voltage range: 187V~242V
Security system
- Safety door lock and controller setting password to prevent unauthorized access.
- Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power.
- Inner doors and auto on/off cooling fan to prevent cold air from leaking out when the door is opening.
- Visual and audible alarm system: High/low temperature, power failure, sensor error, door ajar, low battery.
- Power failure protection: turn on delay of the cooling system after power failure.
- Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensor failed.
- Temperature printer: print current inside temperature automatically per 10 minutes.
- Temperature variation within ±1.5℃
Humanized design
- 4 casters with stopper for easy moving and fixation.
- 4 adjustable shelves and 12 blood baskets for easy using.
- Special designed service-free drainage system ensure no water in the cabinet.
- Standard 25mm test hole for easy connecting to temperature monitoring systems.
- Automatic on/off LED light with manual switch on control panel.
Special
- Large storage capacity: 66 X 450ml blood bags
- Reliable control system: 4±1°C
- Forced-air cooling system, frost-free
- Glass door with heater, condensation-free
- Wide voltage design: 187V~242V available
- Build-in back-up battery: 8 hours power failure alarm
| Performance | ||
| Temperature Range | 4°C±1°C | |
| Ambient Temperature | 10~32°C | |
| Controller | Microprocessor | |
| Display | Digital Display | |
| Electrical Data | ||
| Power Supply(V/Hz) | 220/50~60; 115/60 | |
| Rated Power(W) | 160 | |
| Electrical Current(A) | 0.6 | |
| Power Consumption | 1.95 kWh/24h | |
| Dimensions | ||
| Capacity | 108L | |
| Interior Size(W*D*H) | 432*462*478 mm | |
| Exterior Size(W*D*H) | 540*630*1030 mm | |
| Package Size(W*D*H) | 700*585*1200 mm | |
| N.t./G.t.(approx) | 74/95 kg | |
| Loading Qty(20’/40’/40’H) | 27/54/108 | |
| Blood bags(450ml) | 66 | |
| Refrigeration System | |
| Compressor | 1 |
| Refrigerant | R134a |
| Cooling Type | Forced-air cooling |
| Defrost Type | Frost free |
| Alarm | |
| High/Low Temperature | Y |
| Sensor Error | Y |
| Power Failure | Y |
| Door ajar | Y |
| Accessories | |
| Caster | 4 |
| Lamp | LED |
| Shelf | 2 |
| Test hole | 1/25mm |
| Temperature printer | 1 |
| Temperature recorder | Optional |
| USB | Optional |
#s3gt_translate_tooltip_mini { display: none !important; }
Additional Information
| Weight | 95 kg |
|---|---|
| Dimensions | 69 × 58 × 120 cm |
