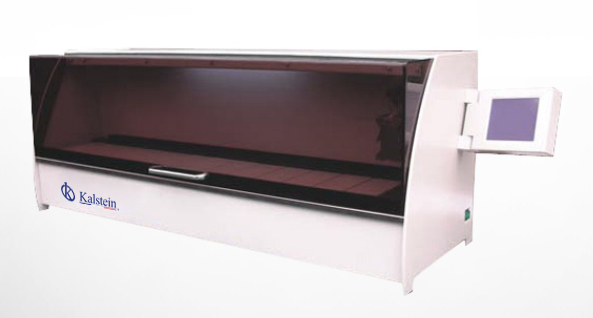

Automated tissue processor YR431

Manufacturer: Kalstein

Description

YR431 Automated Tissue Processor is mainly used in middle laboratories to process specimens to improve the quality sections. The max number of specimens processed is 130 each time. It is popular in the market because of its space saving and simple operation.

  • Imported high-quality parts, smooth operation, low noise, ergonomic design
  • Integrated high-quality LCD screen with intuitive bilingual (Chinese/English) software offers a clear display and simple operation; window-scrolling/flipping human-machine conversation interfaceprovides clear instructions for each step (online help)
  • Fully intelligent design, enabling timely determination and automatic recovery from an abnormal event
  • Real-time visual simulation with iconsdisplays working status dynamically, clearly and intuitively
  • Green inner-cycling air purification system to efficiently adsorb and remove poisonous gas; well-sealed gas-effluxion mechanism to effectively improve the operational environment, environmentally-friendly and safe
  • This system can be automatically started at any timeas programmed
  • Processing duration is automatically calculated and displayed on the screen, allowing user to make a more efficientwork plan
  • 20 editable programs can be stored in the system
  • Manual adjustment can be conducted anytime during the programmed automatic operation; afterwards, the system automatically enters the programmed operation
  • Automated fan control: Stays‘on’ all the time when the specimens are not submerged in cup and 10 seconds every minute when the specimens are submerged in cup and processin
  • Internal dry heating mechanism with high-precision temperature control
  • Automatically determines the time of heatingfor energy efficiency
  • Low-energy-consuming control circuit with power protection function
  • When a power outage occurs, the screen displays as normal with a scrolling bar demonstrating the ‘on’ status of the power protection system
  • Battery backup with more than 30 hours of running power
  • Approximately 130tissue samples can be processed at the same time
Model YR431
Number of Cups 12 (The 1stto 9th stations for reagents and the 10th to 12th

stations for paraffin melting)

Capacity of Each Cup 2000 ml
Temperature Range RT – 80℃
Temperature Control Precisio ±1℃
Length of Processing Time in the Cup Any length for the first cup (Extended Time)

Any length between 0 and 24 hours for the 2ndto 12th cup

Dripping Time Adjustable between 10s and 60s; shake/drip function above cup
Frequency of Agitation Adjustable within 0 – 6 times/minute
Tissue Protection Station any station from the 1stto 7th station as preset
Working Voltage AC220V±10% 50Hz (standard model)AC110V±10% 60Hz
Power 500 W
Dimensions 1170×465×535mm(W×D×H)
Net weight 85kg

Additional information

Weight 130 kg
Dimensions 132 × 59 × 68 cm
