Description

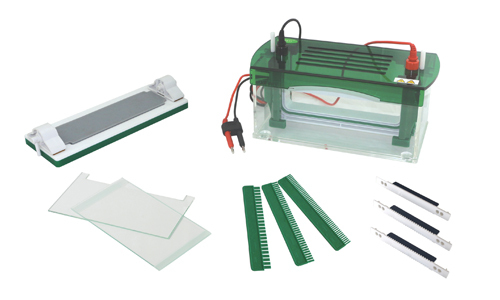

Vertical gel electrophoresis is a more complex set-up compared to horizontal gel system. Researchers normally use this system to separate proteins instead of nucleic acids. However, before you separate proteins, you need to disrupt the quaternary structure of proteins into the linear strand
Characteristic feature
- The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
- With the gel making device of normal position,don’t should to moving the glass plate from the process of making gel to electrophoresis.
- With the Precast gel inner core, do not affecting the operation of gel making while the electrophoresis.
- Safety cover open button design, convenient opening the cover.
- Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
- Auto-switch-off when the lid is removed.
Model | YR03430 |
Glass plate size(W×L) | 216×110 mm |
Gel Size(W×L) | 186×95 mm |
Gel thickness | 1.0(mm) |
Gel amount | 1~2(pieces) |
Sample volume | (1.0mm)25、40、52wells |
Buffer Volume | ~1800(ml) |
Dimension(L×W×H) | 280×140×135(mm) |
Net weight | 3.2(kg) |
