Description

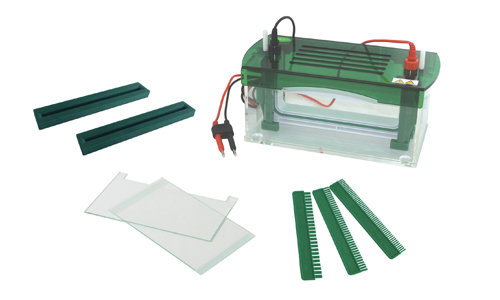

Vertical gel electrophoresis is a more complex set-up compared to horizontal gel system. Researchers normally use this system to separate proteins instead of nucleic acids. However, before you separate proteins, you need to disrupt the quaternary structure of proteins into the linear strand
Characteristic features
- The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
- With the gel making device modular, you can make multi slab gel at the same time.
- Safety cover open button design, convenient opening the cover.
- Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
- Auto-switch-off when the lid is removed.
| Model | YR03428 |
| Glass plate size（W×L） | 216×110 mm |
| Gel Size（W×L） | 186×95 mm |
| Gel thickness | 1.0（mm） |
| Gel amount | 1～2（pieces） |
| Sample volume | （1.0mm）25、40、52wells |
| Buffer Volume | ～1800（ml） |
| Dimension（L×W×H） | 280×140×135（mm） |
| Net weight | 3.2（kg） |
