Description

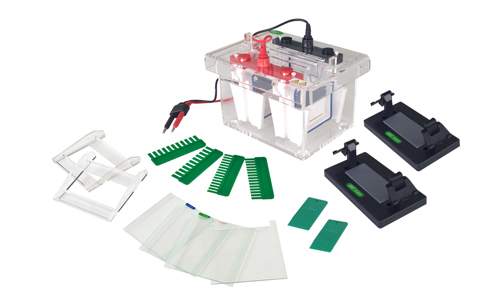

Vertical gel electrophoresis is a more complex set-up compared to horizontal gel system. Researchers normally use this system to separate proteins instead of nucleic acids. However, before you separate proteins, you need to disrupt the quaternary structure of proteins into the linear strand
Characteristic feature
- With two gel castings, can cast 1-4 plates of gels at the same time. There are two methods of “casting gel in original position” and “multi-casting gel” for option.
- The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
- With a gel casting in original position, no need to move glasses from gel making to elctrophoresis running. It is more convenient to observe gel preparing through both sides of the glasses.
- High transparent polycarbonate material injection molding, impact resistance, high temperature resistance, corrosion resistance.
- Safety cover open button design, convenient opening the cover.
- With the background color, easy to be observed in the sample adding and electrophoresis process.
- Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
- Auto-switch-off when the lid is removed.
Model | YR03426 |
Glass plate size(W×L) | 100×100 mm |
Gel Size(W×L) | 82×88 mm |
Gel thickness | 1.0、1.5(mm |
Gel amount | 1~4(pieces) |
Sample volume | (1.0mm)11、15wells;(1.5mm)11、15wells |
Buffer Volume | ~1000(ml) |
Dimension(L×W×H) | 220×170×120(mm) |
Net weight | 2.5(kg) |
