Description

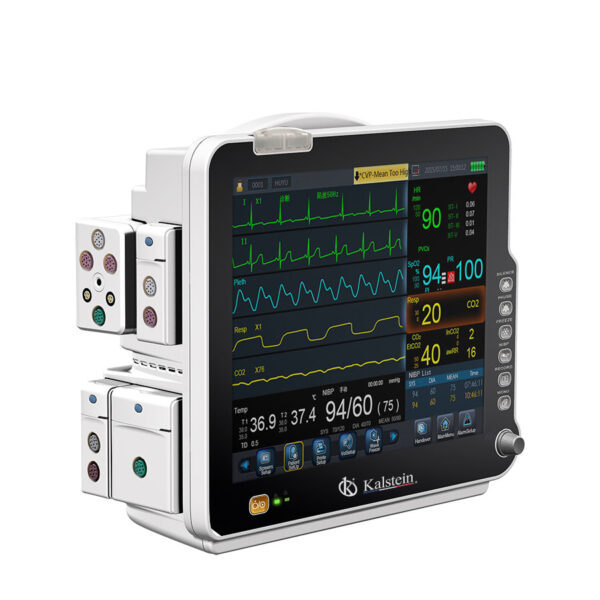

The Multi-parameter Patient Monitor YR02177 is a state-of-the-art medical device designed for comprehensive patient monitoring in critical care environments such as the Operating Theater (OT) and Intensive Care Unit (ICU). Featuring a 17-inch LCD display and full modular capability, this monitor supports a broad spectrum of standard parameters, including ECG, SPO2, TEMP, NIBP, RESP, and PR/HR. With its optional advanced modules like Masimo/Nellcor SpO2, Dual-IBP, AG, C.O., and many others, it ensures versatility and adaptability to meet the needs of various medical settings.
Market Price
When considering the acquisition of a multi-parameter monitor like the YR02177, it’s essential to understand the market context. Products of this caliber typically range from $4600 to $5400 in price. This comprehensive monitor aligns with the market standards, offering advanced monitoring capabilities and reliable performance. To get precise pricing tailored to your institution’s needs, consider requesting a quote for competitive offers.
Frequently Asked Questions
Q: What are the standard configuration parameters?
A: The standard configuration includes a 5-lead ECG, RESP, Dual-Temp, SpO2, and NIBP monitoring.
Q: Is this monitor suitable for neonatal care?
A: Yes, the YR02177 supports neonatal and pediatric settings with HR Ranges from 15 to 350 bpm and Neo/Ped respiration monitoring.
Advantages and Disadvantages
Advantages:
1. High-accuracy readings across all parameters.
2. Optional modules for extended functionalities.
3. Intuitive interface with a large 17-inch display.
Disadvantages:
1. Higher initial investment compared to basic models.
2. Requires compatible accessories for some optional modules.
Use of the Product in the Field
The YR02177 is highly valued in medical fields for its versatility in different scenarios. In ICUs, it ensures continuous patient monitoring with an emphasis on life-critical parameters. Its modular design allows customized setups for specific cases, each adjustment enhancing its utility in a variety of clinical situations.
Recommendations
To maximize the lifespan and efficiency of the YR02177, regular maintenance and calibration are recommended. Keeping the software updated ensures you have the latest features and performance optimizations. Consider enrolling in training sessions offered by Kalstein Plus for operational proficiency.
Features
- 17-inch LCD screen
- Standard parameters: ECG, SPO2, TEMP, NIBP, RESP, PR/HR
- Expandable with optional modules
- User-friendly interface
- High accuracy with robust construction
Technical Specifications
| Model | YR02177 | |
|
ECG
|
Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | x250, x500, x1000, x2000 | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
|
Heart Rate
|
Measuring range | 10~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
|
Respiration
|
Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.0MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Respiration Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
|
NIBP
|
Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
|
SPO2
|
Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
|
TEMP
|
Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
