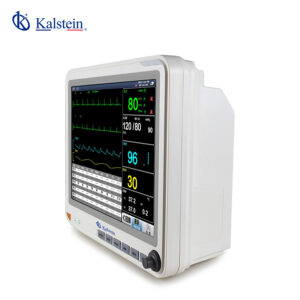

Description
- Display: 12.1 inches color TFT screen, folding 90 degrees
- Resolution: 800*600
- Trace: 6 Waveforms (Max)
- Standard Configuration: SpO2, MHR, NIBP, TEMP, ECG, RESP, TOCO, FHR, FM, Recorder
- Optional Configuration: Fetal Stimulator, FHR2, Trolley
Technical Specifications
Model | YR02190A |
FHR | |
Strength | < 5mW/cm2 |
Working Frequency | 1.0MHz |
Signal Processing | Special DSP system and modern recognition |
Measurement Range | 50~240bpm |
Alarm Range | High Limit: 160, 170, 180, 190 bpm Low Limit: 90, 100, 110, 120 bpm |
Maximum Audio Output Power | 1.5 Watt |
TOCO | |
Measurement Range | 0-100 units |
SpO2 | |
Measurement Range | 70%~99% |
Measure Accuracy | ±3% error |
HR | |
Measurement Range | 30bpm~240bpm |
Measure Accuracy | ±2 bpm |
NIBP | |
Measurement Range | SYS 6.7~32.0kPa(50~240mmHg) MEAN: 3.4~26.6kPa(25~200mmHg) DIA: 2.0~24.0ka(15~180mmHg) |
NIBP Accuracy | ±1.1kPa(±8mmHg)or ±5% of results, taking the bigger one |
HR Measurement Range | 40bpm~240bpm |
HR Measure Accuracy | ±2 bpm or ±5% of the results, taking the bigger one. |
Measure Mode | Manual to start/stop NIBP measurement |
Temperature | |
Arrange | 0~50 ℃ |
Resolution | 0.1 ℃ |
Accuracy | 0.1 ℃( excluded the error caused by transducer) |
ENVIRONMENT | |
Working Environment | Temperature: +5℃ ~ +40℃ |
Atmospheric Pressure | 86kPa ~ 106kPa |
Transport and Storage Temperature | Humidity: < 93% Atmospheric Pressure: 86kPa ~ 106kPa |
