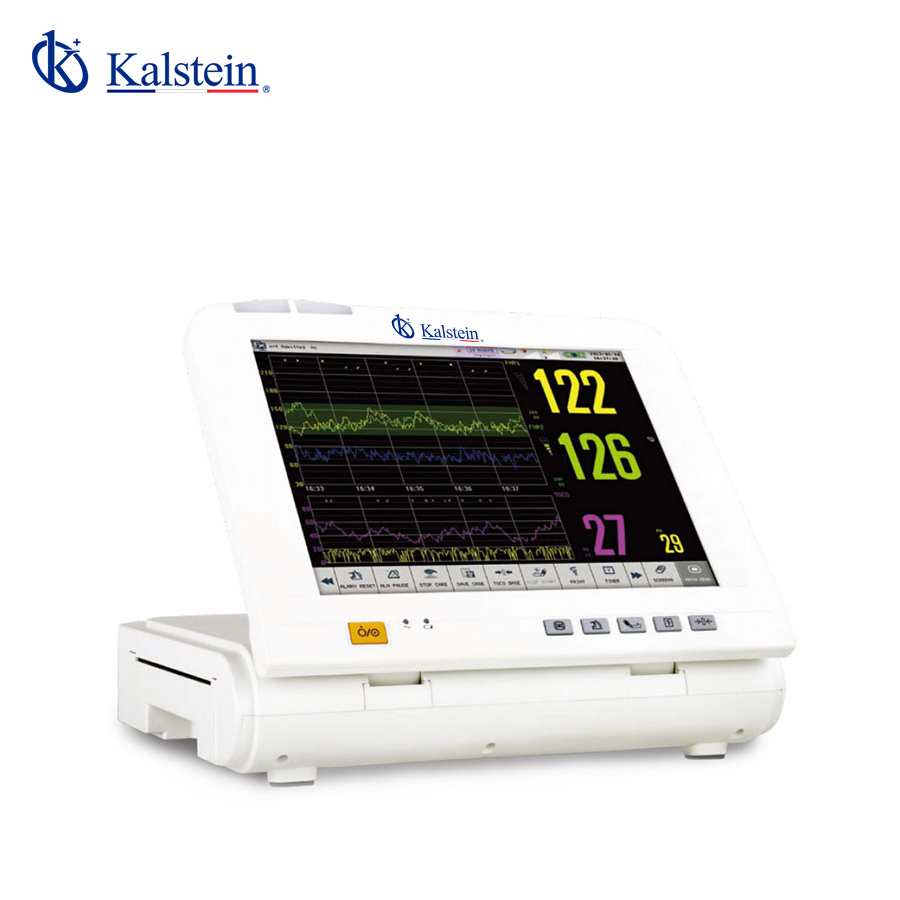

Fetal Monitor YR02190C
Fetal Monitor YR02190C — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Fetal Monitor YR02190C is a state-of-the-art device designed to provide precise fetal monitoring. Featuring a 12.1-inch color TFT touch screen, this monitor offers a resolution of 800x600, ensuring clear and vivid display. It supports up to 6 waveforms for comprehensive fetal monitoring and comes with standard configurations like FHR1, TOCO, and FM. Additionally, you can opt for configurations such as a fetal stimulator and FHR2. The built-in rechargeable lithium-ion battery offers up to 4 hours of continuous operation, making it perfect for dynamic clinical environments.
Market Price
The Fetal Monitor YR02190C is competitively priced, considering its advanced features and reliability. Within the market, fetal monitors like this can range between $2,000 and $2,800. Such a price range reflects the quality and capabilities the device brings to healthcare providers. For the best deal, you can request a quote through the Kalstein Plus platform, which also offers automatic quotation generation for added convenience.
Frequently Asked Questions
What is the warranty on the Fetal Monitor YR02190C? The Fetal Monitor YR02190C typically comes with a one-year warranty, ensuring peace of mind and reliable performance.
Can the device be used for twins monitoring? Yes, with the optional FHR2 configuration, the monitor can accommodate twin monitoring, providing accurate and concurrent fetal heart rate detection for both fetuses.
Advantages and Disadvantages
One of the main advantages of the Fetal Monitor YR02190C is its highly accurate fetal monitoring capabilities. The user-friendly interface on the touch screen makes it accessible for medical staff. However, the reliance on battery power for portability means users need to ensure it is adequately charged for optimal operation.
Product Usage in the Field
This fetal monitor is widely used in hospitals and clinics for monitoring fetal heart rates, uterine contractions, and other vital pregnancy indicators. Its portability allows it to be moved between patient rooms efficiently, and the intuitive interface aids in quick data interpretation by healthcare professionals.
Recommendations
To ensure maximum efficiency and longevity of the Fetal Monitor YR02190C, it is recommended to regularly update its software and maintain the cleanliness of its sensors and display screen. Regular calibration checks are also advised to keep the instrument accurate and reliable.
Features
- 12.1-inch color TFT touch screen
- 800x600 resolution
- Maximum of 6 waveforms
- Standard configurations include FHR1, TOCO, and FM with optional fetal stimulator
- Rechargeable lithium-ion battery with 4-hour backup
Technical Specifications
| Model | YR02190C |
| FHR | |
| Strength | < 5mW/cm2 |
| Working Frequency | 1.0MHz |
| Signal Processing | Special DSP system and modern recognition |
| Measurement Range | 50～240bpm |
| Alarm Range | High Limit: 160, 170, 180, 190 bpm Low Limit: 90, 100, 110, 120 bpm |
| Maximum Audio Output Power | 1.5 Watt |
| TOCO | |
| TOCO Range | 0-100% |
| Resolution | 1% |
| Zero Mode | Auto/Manual |
| Non-linear error | ±8% |
| AUTO FETAL MOVEMENT (AFM) | |
| Technique | Pluse Doppler ultrasound |
| Measurement range | 0%-100% |
| Resolution | 1% |
| RECORDER | |
| Type | Built-in; thermal array |
| Channel | 6 channel waveforms |
| Mode | Fast, real time |
| Speed | 1/2/3cm/min selectable, 25mm/s(review) |
| Record width | 150mm |
| ENVIRONMENT | |
| Working Temperature | 0-40°C |
| Humidity | 15%-80% |
| Power Supply | 100-240V~, 50/60Hz±1Hz |
| Battery Type: | Rechargeable & Lithium-ion battery |
| Battery Capacity | 4400mAh |
| Battery Recharging Time | Maximum 5.5 hours for charging; |
| Battery backup | 4 hours for continuous working |
| Display | 12.1" color TFT touch screen |
| Resolution | 800*600 |
| Trace | 6 Waveforms (Max) |
Technical specifications
| Dimensions | L 45 × W 29.5 × H 38 cm |
|---|---|
| Weight | 8.5 kg |
| Manufacturer | Kalstein |
Frequently asked questions
How to know the prices of Fetal Monitor YR02190C?
To know the price of Fetal Monitor YR02190C, please send us an email with your request through the contact form AQUI.
What are the delivery times for Fetal Monitor YR02190C?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Fetal Monitor YR02190C?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Fetal Monitor YR02190C?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Fetal Monitor YR02190C?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
