Description

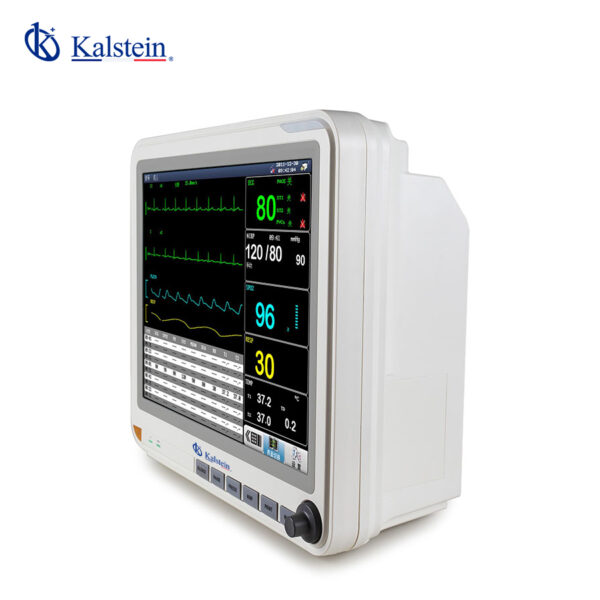

The Bedside Monitor YR02174 is essential in modern healthcare settings, providing comprehensive monitoring of patients with its 15-inch multi-parameter display. This advanced monitor offers standard configurations such as SpO2, RESP, NIBP, PR/HR, ECG, and dual TEMP measurements, catering to both adult and pediatric patients. Customize your monitoring with optional features like a 12-lead ECG, IBP modules, ETCO2 measurement, and more. It’s the perfect choice for healthcare professionals looking for reliable and precise patient data.
Market Price
In the competitive market of patient monitors, the average price for devices like the Bedside Monitor YR02174 ranges from around 900 USD to 1800 USD. This price range reflects the included features and the superior quality that healthcare facilities demand for effective patient monitoring.
Frequently Asked Questions
1. What type of patients can use the Bedside Monitor YR02174?
This monitor is suitable for both adult and pediatric patients, offering customizable settings for different monitoring requirements.
2. Does the monitor support network connectivity?
Yes, the Bedside Monitor YR02174 can be integrated into a network system for centralized monitoring and data management.
Advantages and Disadvantages
Advantages: The monitor boasts high accuracy in vital sign readings and offers flexibility with both standard and optional configurations. The user-friendly interface ensures ease of use, and its scalability makes it suitable for various medical settings.
Disadvantages: The initial setup and calibration may require technical support, and the extensive options might be overwhelming for users unfamiliar with advanced medical equipment.
Product Use in the Field
The Bedside Monitor YR02174 is widely utilized in hospitals, clinics, and even home care settings. It allows healthcare practitioners to continuously monitor patient vitals and quickly respond to changes in their condition, thereby enhancing patient safety and care quality.
Recommendations
To ensure accurate readings and prolong the lifespan of the Bedside Monitor YR02174, regular maintenance and servicing are recommended. Training staff on its use will also minimize errors and enhance operational efficiency. Consider exploring the customization options to fully benefit from its extensive capabilities.
Features
- 15-inch Multi-parameter Display
- Standard: SpO2, RESP, NIBP, PR/HR, ECG, 2-TEMP
- Optional: 12 Lead ECG, IBP, ETCO2, Printer
- User-friendly Interface
- Reliable Real-time Monitoring
Technical Specifications
| Model | YR02174 | |
| ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | 1.25, 2.5, 5.0, 10, 20, 40mm/mV, Auto. | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
| Heart Rate | Measuring range | 20~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
| Respiration | Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.5MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Resp. Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
| NIBP | Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
| SPO2 | Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
| TEMP | Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
