Description
Animal ICU intensive care unit
Operating system: intelligent central control large touch screen
Auxiliary operating platform: mobile phone intelligent remote-control software, tablet mobile remote monitoring software, PC remote monitoring software
Temperature control adaptive adjustment technology: the equipment automatically tracks the animal body temperature and automatically adjusts the ICU temperature setting according to the animal body temperature rise and fall
Remote monitoring: Applicable to devices such as mobile phones, pads, mobile tablets, PCS, worldwide real-time monitoring, delay does not exceed 1min
Light source: medical inspection special cold light, lighting warm light
Alarm warning: temperature, humidity, oxygen concentration and other abnormal alarm prompts
Technical Specifications

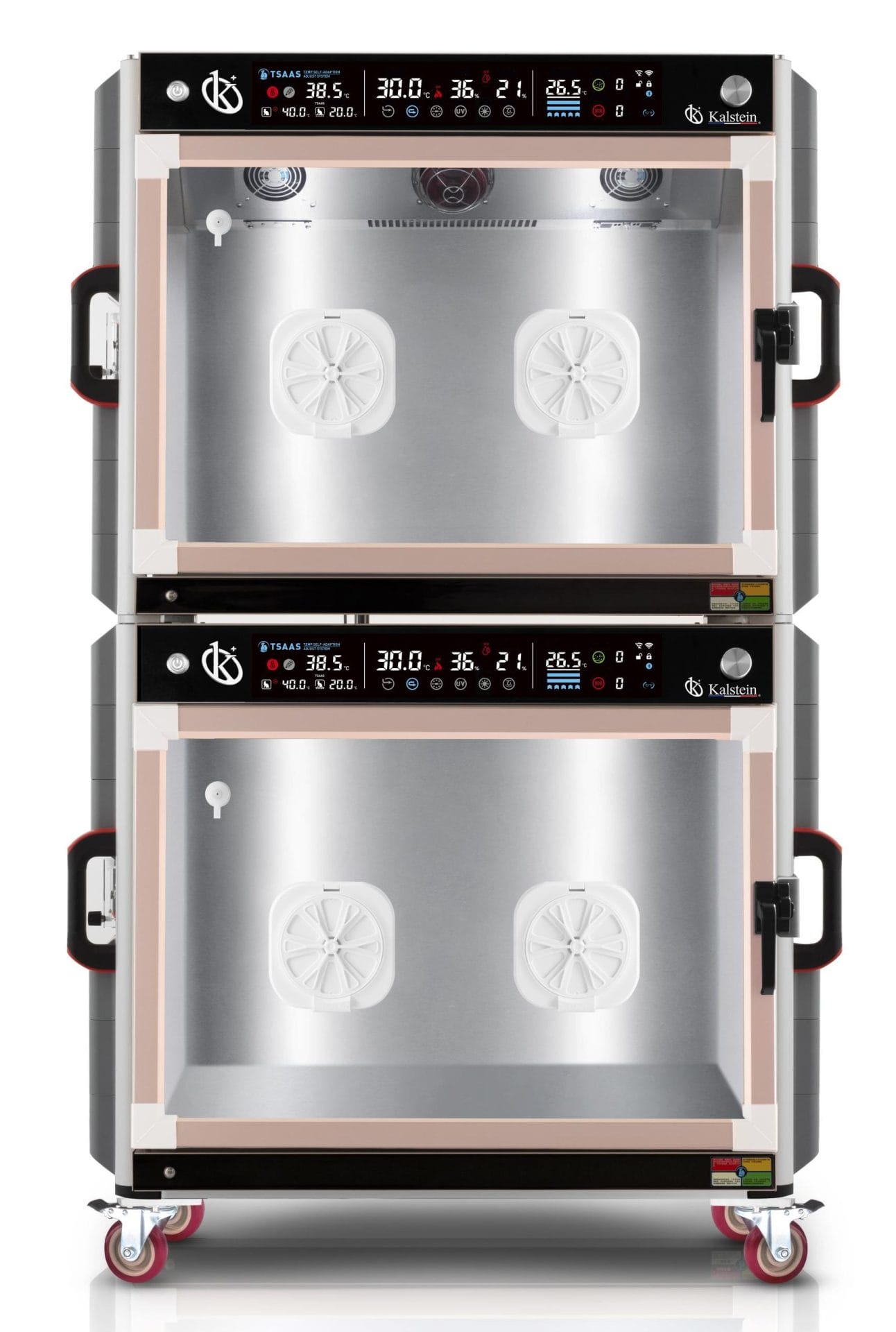

Model | YR06179 |
Number of space | 2 rooms |
Dimensions | 980mm*723mm*1508mm |
Chamber size | 784mm*570mm*620mm (single compartment) |
Cabin temperature control | 18℃~43℃, accuracy ±0.5℃ |
Bilge temperature control | 17℃~43℃, accuracy ±0.5℃ |
Humidity control | 30%~90% |
Oxygen concentration | 21%~80% |
Negative oxygen ion medical purification | 7.2*106 PCS/CM3 |
Ultraviolet disinfection | Wavelength 200 ~ 280 nm UVC ultraviolet efficient sterilization |
External circulation system | Fresh air system |
Medical atomizer | Maximum atomization volume ≥ 0.2ml/min, fog particle 0.5-2um, noise ≤ 40 dB(A), atomization time set 1-10min |
Medical care indicator | Level 4 intelligent control, red light (critical care – special care), yellow light (postoperative care – primary care), white light (hospital observation – secondary care), green light (mild care – tertiary care) |
Infrared therapy lamp | Wavelength range 0.76-5um, peak wavelength 4um |
Animal temperature measurement | Refresh rate 5 seconds -1 minute, error ±0.2℃ |
Safety system | Power failure safety protection |
Maximum power consumption | 1600W |
Power supply | AC 220V, 60Hz |
Operating conditions | Ambient humidity -10℃~40℃ (indoor) |
