Description

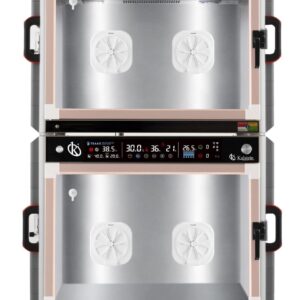

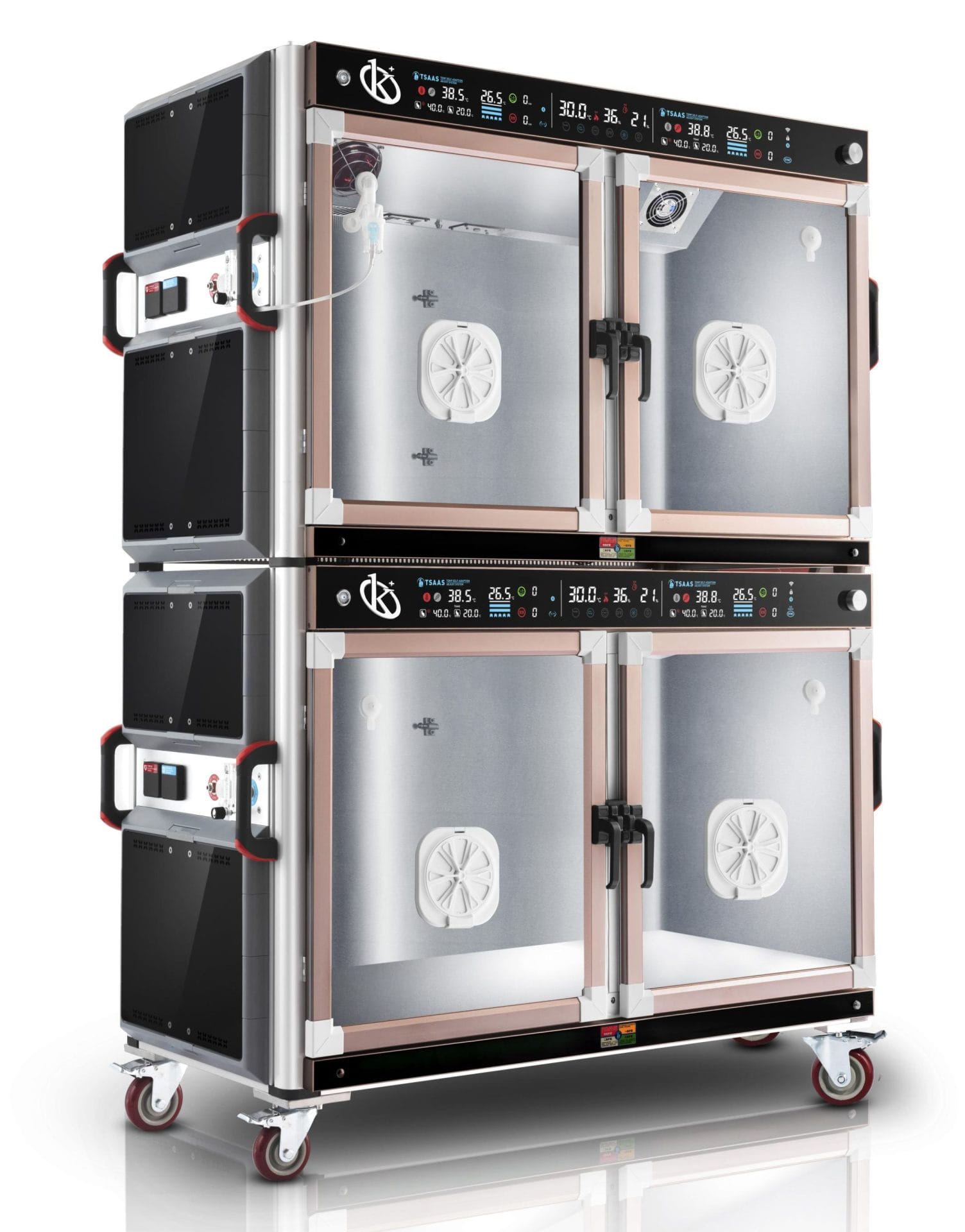

The Veterinary ICU Unit YR06178 offers state-of-the-art technology designed for critical care management of animals. With its intelligent central control system accessible via a large touch screen, this unit is equipped to track and adapt to the patient’s needs by adjusting temperature settings according to the animal’s body temperature changes. Notably, it features remote monitoring capabilities, allowing veterinarians to access real-time data through smartphones, tablets, and PCs. The unit is designed with medical-grade cold light and warm lighting options, and it offers alarm warnings for anomalies in temperature, humidity, and oxygen concentration, ensuring maximum safety and efficacy.
Market Price
The Veterinary ICU Unit YR06178 is competitively priced within the market range for advanced veterinary ICU equipment. Typical prices for similar units range from approximately $25,500 to $26,400, reflecting the sophisticated technology and comprehensive features offered. For a precise quote tailored to your needs, we invite you to request an estimate through our Kalstein Plus platform.
Frequently Asked Questions
- Can the ICU unit be used for all types of animals? Yes, the unit is versatile and suitable for a wide range of animal patients, depending on their specific medical needs.
- What is the response time for the remote monitoring feature? The real-time monitoring has a delay that does not exceed one minute.
- Is there a backup system in case of power failure? Yes, the unit includes a safety system with power failure protection.
Advantages and Disadvantages
Key advantages of the Veterinary ICU Unit YR06178 include its fully integrated intelligent control system, remote accessibility, and precise environmental controls, alongside features like medical atomization and UV sterilization. Potential disadvantages may include the initial investment cost and the space required to house the unit.
Product Usage in the Field
In practical scenarios, the Veterinary ICU Unit YR06178 is deployed in various veterinary clinics and hospitals, providing critical care for post-operative recovery and emergency cases. Its multi-room design can accommodate different patient types simultaneously, allowing for efficient space use and resource management.
Recommendations
To ensure the best performance of the Veterinary ICU Unit YR06178, regular maintenance checks are recommended. Keep the unit in a controlled environment to avoid temperature and humidity fluctuations. Utilize the remote monitoring system for continuous observation, thus enabling prompt responses to patient needs.
Features
- Intelligent central control through a large touch screen
- Remote monitoring and control via smartphones, tablets, and PCs
- Automatic temperature adjustment based on patient body temperature
- Medical-grade lighting for examination and care
- Sophisticated alarm warnings for various anomalies
Technical Specifications
| Model | YR06178 |
| Number of space | 4 rooms (can be combined into 2 rooms) |
| Dimensions | 1380mm*723mm*1708mm |
| Chamber size | 1184mm*570mm*720mm (single large cabin) |
| Cabin temperature control | 18℃~43℃, accuracy ±0.5℃ |
| Bilge temperature control | 17℃~43℃, accuracy ±0.5℃ |
| Humidity control | 30%~90% |
| Oxygen concentration | 21%~80% |
| Negative oxygen ion medical purification | 7.2*106 PCS/CM3 |
| Ultraviolet disinfection | Wavelength 200 ~ 280 nm UVC ultraviolet efficient sterilization |
| External circulation system | Fresh air system |
| Medical atomizer | Maximum atomization volume ≥0.2ml/min, fog particle 0.5-2um, noise ≤40dB(A), atomization time set 1-10min |
| Medical care indicator | Level 4 intelligent control, red light (critical care – special care), yellow light (postoperative care – primary care), white light (hospital observation – secondary care), green light (mild care – tertiary care) |
| Infrared therapy lamp | Wavelength range 0.76-5um, peak wavelength 4um |
| Animal temperature measurement | Refresh rate 5 seconds -1 minute, error ±0.2℃ |
| Safety system | Power failure safety protection |
| Maximum power consumption | 1600W |
| Power supply | AC 220V, 60Hz |
| Operating conditions | Ambient humidity -10℃~40℃ (indoor) |
