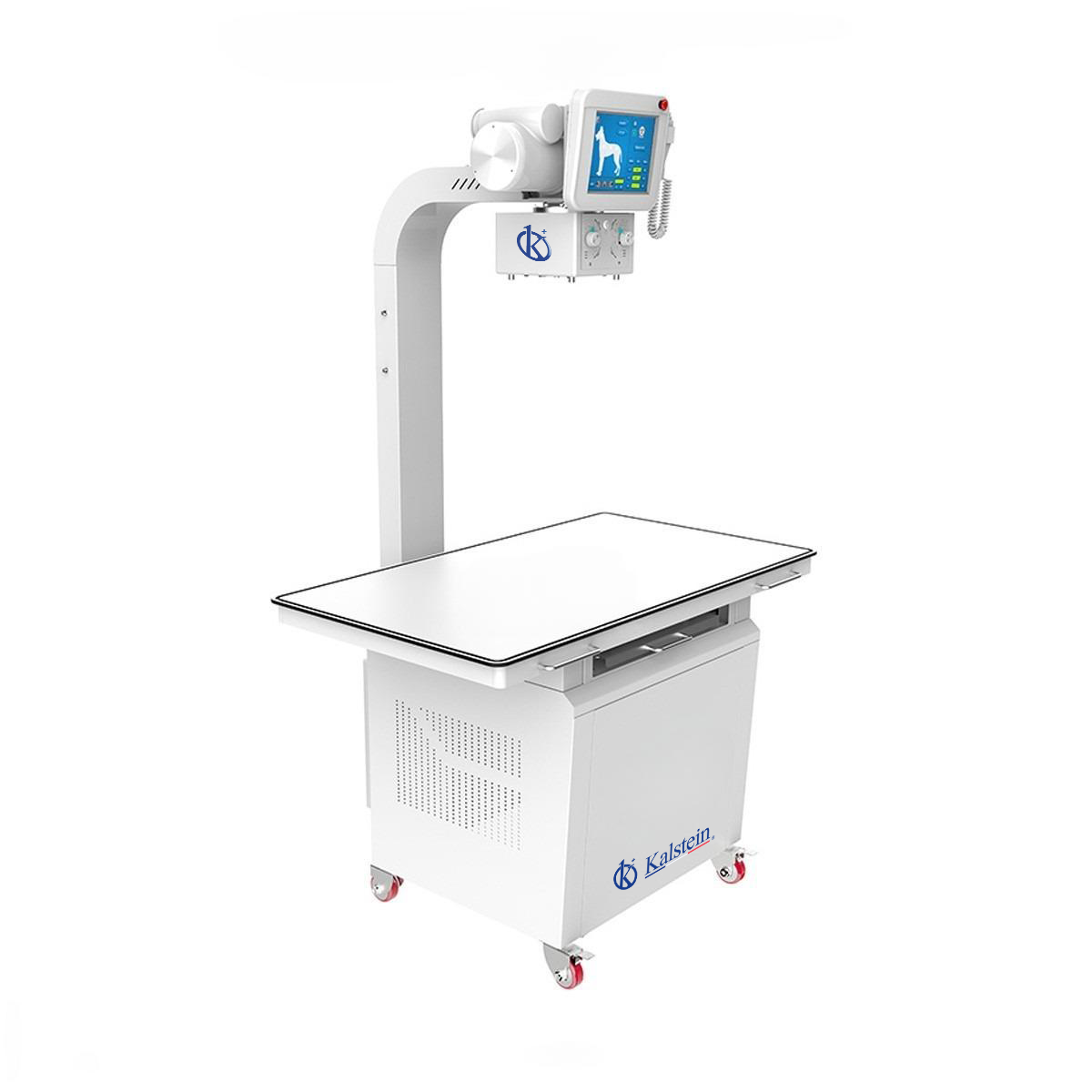

Veterinary Digital X-Ray (DR) YR06162

ManufacturerKalstein

Description

200mA HF generator and Console

Collimator

X-ray tube (Toshiba 7239)

Pet table

JPI Grid

Flat panel detector

Computer and LCD

Technical Specifications
Model YR06162
Maximum output power 16kW
Input voltage range AC 220V±22V
Applicable support Radiography
Inverter frequency ≥30kHz
Tube voltage range of radiography 40kv~125kv
Range of tube current 16~200mA
Range of exposure time 0.0025s~6.4s
mAs range 0.5mAs~320mAs
Communication interface RS-232
Other Capacity lock automatically, fault diagnosis automatically, self-protection
Max. Tube voltage 125kV
Focus Small focus:1.0mm Large focus:2.0mm
Anode input power Small focus:20KW Large focus:40KW
Anode speed 2800 R/M
Target angle 17.5°
Anode heat content 100kJ(140kHU)

Additional information

Weight 105 kg
Dimensions 55 × 48 × 80 cm
