Description
10.4-inch touch screen display
Failure self-protection, self-diagnosis
High precision control of tube voltage, tube current
48 kinds of presupposed anatomy memory pattern choice
Accuracy control method of simulation and double digital loops
X-ray tube complete surrender by lead for protect X-ray leaking
Exposure by touch screen, hand switch or remote control
Technical Specifications

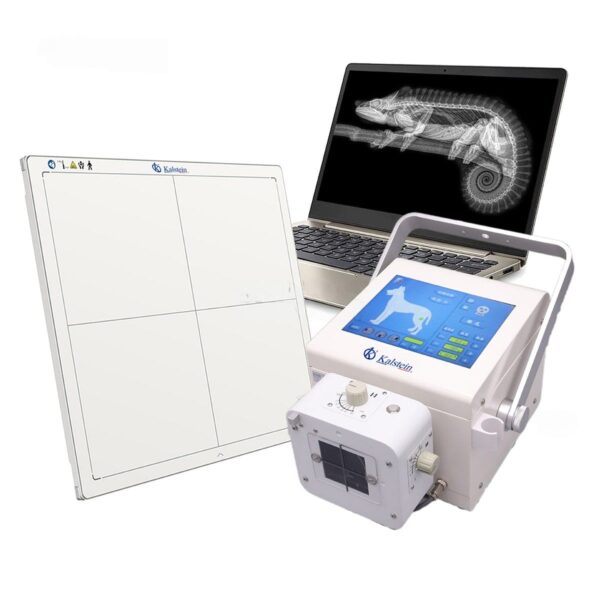

Model | YR06160 | |
Generator
|
Power | 5kW |
kV Range | 40~110kV | |
mA Range | 20~100mA | |
mAs Range | 0.8-200mAs | |
Working Frequency | ≥40kHz | |
Exposure time | 40ms~4000ms | |
X-ray tube
|
Anode heat storage | 56KHU |
Focus | 1.8mm | |
Inherent filtration | 1mm Al/75Kv | |
Light source | LED | |
Wireless flat panel detector
|
Scintillator | CSI |
Active Area | 10*13 inch | |
Pixel Matrix | 2528*3318 | |
Data Interface | WiFi / Tethered | |
Trigger Mode | AED (optional) / Software | |
Dimensions | 269mm*362mm*16mm | |
Weight | 2.2kg | |
Touch Screen | Dimension | 10.4-inch |
Main Unit
|
Weight | 19kg |
Dimension | 290mm*265mm *230mm | |
Power Supply | Voltage | AC 220V±10%, 50Hz±1Hz |
