Description

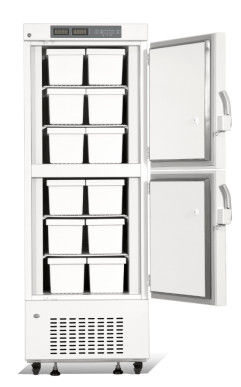

Laboratory Freezer -10℃ ~-25℃ With Two Independent Chambers And 12 Drawers For Lab And Hospital Use
Reliability
- Two temperature control systems with double door construction.
- Flexible and easy storage by height-adjustable shelf trays
- Maintains the quality of the samples during preservation
- 2 completely independent chambers with their own temperature displays
Key Features
- Two- Door freezers are equipped with various specifications that enable flexibility and maintain the quality of the samples during preservation such as height-adjustable shelf trays.
- The separate top and bottom doors suppress cold air leakage and 2 completely independent chambers each has its own temperature control.
Safety Design
- To securely preserve/manage the valuable samples, in addition to a standard-feature door lock, a hole in the latch allows a padlock to be attached.
- Security functions that help protect valuable samples with a temperature control capability that inhibits the change in temperature inside the chamber, and an alarm/security function that prevents errors, the unit maintains the quality of the preserved samples. Temperature recorder (optional)
- Front-mounted display/control panel located at convenient height for easy access
- Insulated door with gasket for sample protection and uniformity
Warranty
1 year free spare parts and remote technical support.
Special
- Top and bottom chambers are equipped with 2 independent refrigeration circuits
- The separate top and bottom doors suppress cold air leakage for easy opening.
Technical Specifications
Model | YR05311 |
Performance | |
Cooling method | Direct cooling |
Defrost | Manual |
Refrigerant | R290 |
Temperature range | -10~-25℃ |
Ambient temperature | 10~32℃ |
Electrical Data | |
Voltage frequency( V/Hz) | 220/50Hz |
Power (W) | 300W |
Current (A) | 3:00 a. m. |
Alarms | |
High/low temperature | Y |
Power failure | Y |
Sensor error | Y |
Temperature controller failure | Y |
Refrigeration System | |
Compressor brand/QTY | CUBIGEL/2 |
Condenser | Copper tube |
Temperature controller | Microprocessor |
Sensor | NTC |
Display | Digital display |
Dimensions | |
Capacity(L/cu.ft) | 358/12.64 |
Exterior size(W*D*H)(mm) | 720*830*1870 |
Interior size(W*D*H)(mm) | (466*636*625)×2 |
Other | |
Inside door | 6 Drawer×2 |
Test hole QTY/diameter | 2/25MM |
Remote alarm port | Y |
Castor | Y |
