Description

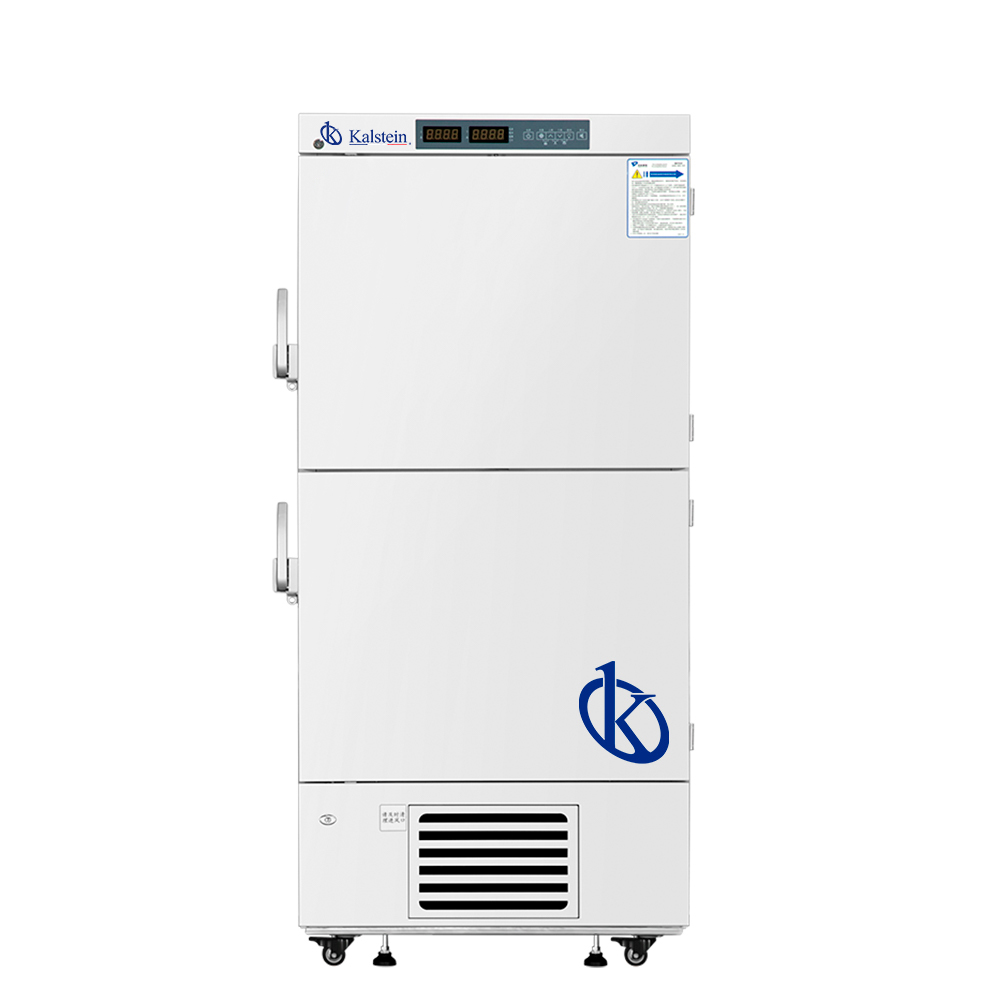

Covid Vaccine Refrigerators / Standing Deep Freezer 528 Liters with separated double door.
Safety
- Multiple malfunction alarms :high and low temperature , sensor error, power off, temperature controller malfunction, door ajar alarms.
- Alarm indications: audible buzzing alarm and visual flashing light alarm
- Corrosion proof cabinet interior design
- Power failure protect: the device would be attack by the high current when all devices restart simultaneously, the start-delay function would protect
- device from the damage
Reliability
- Chemically stable, CFC -free, commercially available and environmentally safe refrigerant.
- Optimized refrigeration system designed to maximize cooling effect and temperature uniformity
- Microprocessor control, digital display, adjustable temperature range: – 20ºC–40ºC
- LED digital display for clear observation,
- Wide voltage tolerance design with applicable voltage range of 187-242V/AC
Ergonomic Design
- USB data logging and temperature recorder (optional).
- Build-in lock with safety and beauty
- Lockable caster design for customer to move as needed
Main Features
- Microprocessor control, adjustable temperature range: -20CºC to -40ºC
- LED digital display and increment at 0.1ºC
- Permanently lubricated cooling fan for safety and longevity .
- Independent inner door to avoid more cooling leaking out, and provide more stable inside temperature performance
- High density CFC-Free urethane foam insulation.
Power & Material | Accessories | ||
Voltage/frequency(V/Hz) | 220/50Hz | Foot | Y |
Power(W) | 340W | Castor | Y |
Current(A) | 3.4A | Inside door | 9 Drawer×2 |
Inside material | Color sprayed steel | Test hole QTY/diameter | 2/25MM |
Outside material | Color sprayed steel |
Remote alarm port
|
Y
|
Insulation | PURF | ||
Dimension | Alarm Systerm | ||
Capacity(L/cu.ft) | 528/18.64 | High/low temperature | Y |
NT./GT.(kg) | 151/184 | Power failure | Y |
Exterior size(W*D*H)(mm) | 910*845*1875 | Sensor error | Y |
Interior size(W*D*H)(mm) | (651*631.5*635)*2 | Temperature controller failure | Y |
Package size(W*D*H)(mm) | 930*970*2000 | Power failure backup system(alarm) | 8h |
CBM | 1.80 | Certification | |
20GP/40GP/40HQ | 12/ 24/24 | ISO9001,ISO13485,ISO14001,CE |
