Description

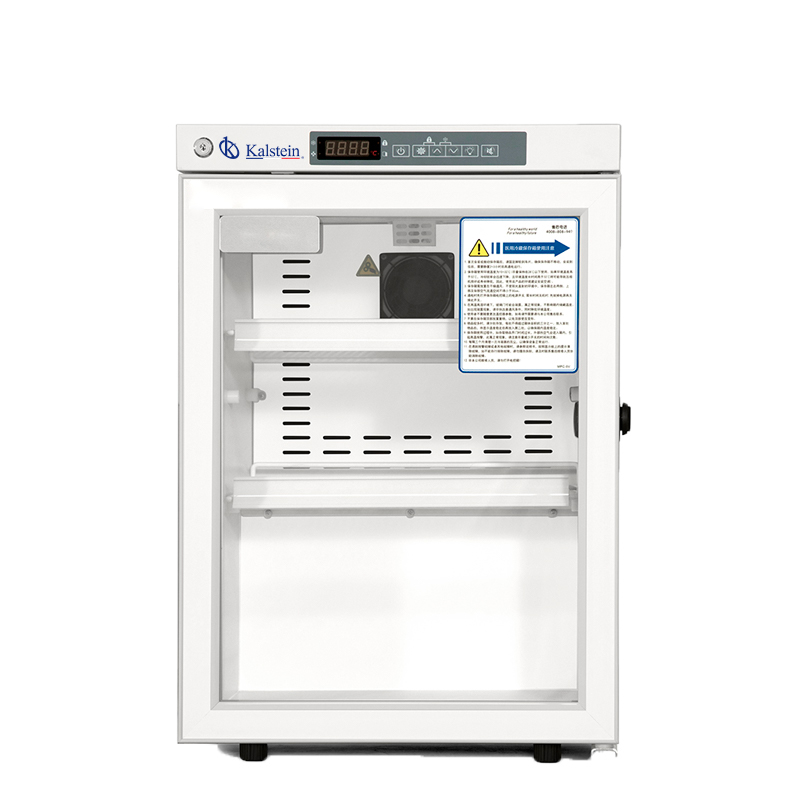

The pharmacy refrigerators are suitable for installation in drug and vaccine stores, pharmaceutical companies, hospitals, epidemic prevention centers and clinics.
Hot tips
- Reliable control system
- Inside temperature 2~8°C
- Forced-air cooling system, Frost-free
- Service-free drainage system
- Wide voltage range, 187V~242V available
Features
- Adjustable temperature range 2-8ºC
- Microprocessor control, adjustable temperature
- LED digital display and increment at 0.1 °C.
- Temperature variation within ±3ºC
- Permanently lubricated cooling fan for safety and longevity
- High efficiency specialty compressor with known field reliability
- Forced- air cooling with optimized air distribution system designed
- To achieve maximum temperature uniformity and stability
- Optimized refrigeration system design for more effective cooling and speedy recovery
Safety Guarantee
- Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 8 hours without AC power
- Visual and audible alarm system:High/low temperature, thermostat failure alarm,power failure alarm, door ajar.
- Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.
- Keyboard lock, password protection to avoid set parameter randomly.
- Wide available voltage range: 187V~242V.
Humanized design
- Optimized space utilization design with multi – level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds
- Standard with LED Interior light
- Safety lock to prevent unauthorized access requirement of pharmaceutical products of various kinds
Regrigeration System
- Imported brand compressor work with CFC-Free environmental refrigerant.
- High density insulation foam layer with better heat preservation effect.
Model | YR05083 | |
Specificaitons
|
Shelf/drawer | Shelves/2 |
Cooling method | Forced Air Cooling System | |
Defrost | Auto | |
Refrigerant | R600a | |
Power consumption(kWh/24h) | 0.84 | |
Noise(db) | 50 | |
Ambient temperature(ºC) | 10~32ºC | |
Temperature range(ºC) | 2~8ºC | |
Cooling system
|
Compressor brand/QTY | China Brand/1 |
Sensor Type | NTC | |
Temperature controller | Microprocessor | |
Display | Digital display | |
Power
|
Voltage/frequency(V/Hz) | 220/50Hz |
Power(W) | 72W | |
Current(A) | 0.59A | |
Material
|
Inside material | Color sprayed steel |
Outside material | Color sprayed steel | |
Insulation | PURF | |
Size
|
Capacity(L/cu.ft) | 60/2.11 |
NT./GT.(kg) | 33/37 | |
Exterior size(W*D*H)(mm) | 495*450*710 | |
Interior size(W*D*H)(mm) | 410*315*560 | |
Package size(W*D*H)(mm) | 558*510*760 | |
CBM | 0.22 | |
20GP/40GP/40HQ | 132/276/276 | |
Alarm
|
High/low temperature | Y |
Power failure | Y | |
Thermostat failure | Y | |
Backup battery failure alarm | / | |
Condenser fault alarm | / | |
Ambient Temperatures | / | |
Voltage abnormality alarm | / | |
Door ajar | Y | |
System abnormal alarm | / | |
Power failure backup system(alarm) | 8h | |
Accessories
|
Foot | Y |
Castor | / | |
Outer door/Type | 1/Glass/Low-E | |
Door Lock | 1 | |
Test hole QTY/diameter | 1/25mm | |
Lamp | LED | |
USB port | / | |
Temperature recorder | Optional | |
Remote alarm port | Y | |
RS232/485 port | / | |
Other | Certification | ISO9001/13485/14 001;CE |
