Description

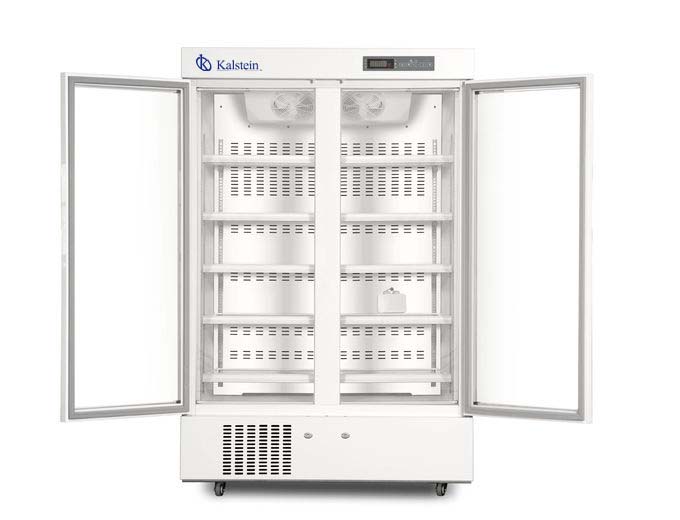

656L Double Door Pharmacy and Lab Refrigerator with Glass Door and LED Interior Ligh
Reliability and Key Features
- High efficiency specialty compressor with known field reliability
- Permanently lubricated cooling fan for safety and longevity
- Forced- air cooling with optimized air distribution system designed
- To achieve maximum temperature uniformity and stability
- Optimized refrigeration system design for more effective cooling and
- Speedy recovery
- Temperature variation within ±3ºC
- Adjustable temperature range 2-8ºC
- Microprocessor control, digital display, and temperature adjustment with an increment of 0.1ºC
- Large digital display screen
Ergonomic Design
- Optimized space utilization design with multi – level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds.
- Safety lock to prevent unauthorized access
- Caster design and leveling legs
- LED Interior light
Safety
Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light
Capable of alerting failures due to high and low temperature sensor error, door ajar, , power failure and low battery
Technical Specification
Performance | ||
Temperature Range | 2~8°C | |
Ambient Temperature | +10~+32°C | |
Controller | Microprocessor | |
Display | Digital Display | |
Refrigeration System | ||
Compressor | 1 | |
Refrigerant | R600a | |
Cooling Type | Forced air cooling | |
Defrost Type | Automatic | |
Alarm | ||
High/Low Temperature | Y | |
Sensor Error | Y | |
Power Failure | Y | |
Door ajar | Y | |
Accessories | ||
Caster | 4 | |
Light | LED | |
Shelf | 10 | |
Temp. Recorder | Optional | |
Chart recorder | ||
Test hole | 1/25mm | |
Electrical Data | ||
Power Supply(V/Hz) | 220/50~60; 115/60 | |
Rated Power(W) | 385 | |
Electrical Current(A) | 2.3 | |
Power Consumption | 5.75 kWh/24h | |
Dimensions | ||
Capacity | 656L | |
Interior Size(W*D*H) | 1100*454*1325mm | |
Exterior Size(W*D*H) | 1240*630*1895mm | |
Package Size(W*D*H) | 1335*710*2000mm | |
N.t./G.t.(approx) | 166/184kg | |
Loading Qty(20’/40’/40’H) | 13/27/27 |
