Description

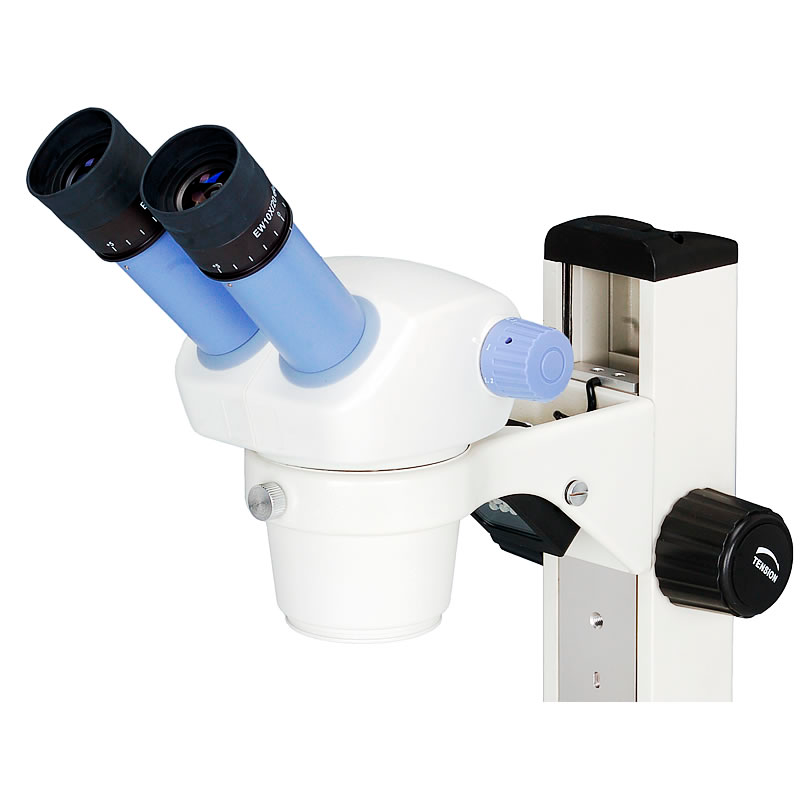

- Binocular Head with diopter Adjustable tube

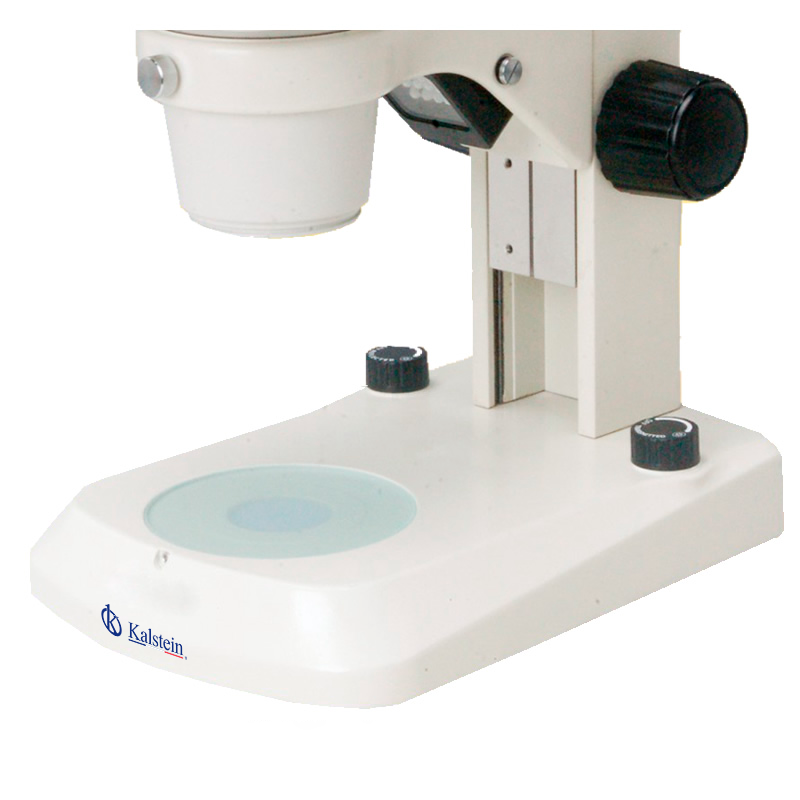

- Stand with LED Light,, Large Glass Stage
Technical Specifications
| Model | YR0253 | |
| Head | Binocular, Inclined 45°, Interpupillary Distance 55~75mm | o |
| Trinocular, Inclined 45°, Interpupillary Distance 55~75mm | ||
| Eyepiece | WF10x/20mm, High Eyepoint | |
| Zoom Objective | 1x~4.5x | |
| Zoom Ratio | 01:04.5 | |

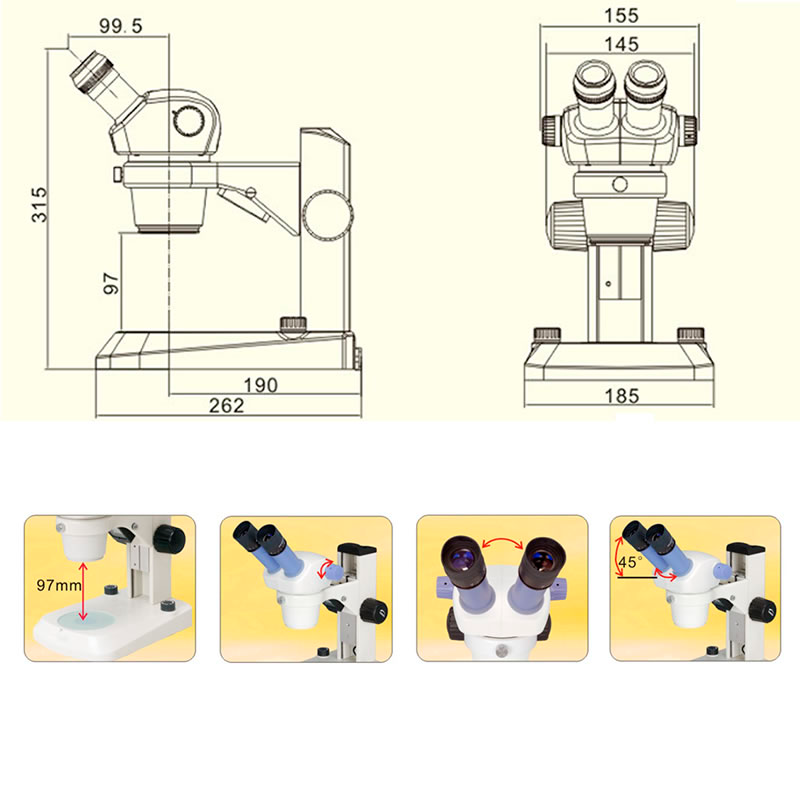

| Working Distance | 97mm | |
| Stand | Track Stand, With Glass Plate | |
| Illumination | Up & Down LED Light, Brightness Adjustable | |
| Optional Accessories | ||
| Eyepiece | WF15x/16mm | YR0253-op1 |
| WF20x/12mm | YR0253-op2 | |
| WF30x/ | YR0253-op3 | |
| EW10x/20 Retical Eyepiece, With Cross Hair | YR0253-op4 | |
| Auxiliary Lens | 0.5x, W.D.180mm | YR0253-op5 |
| 0.63x, W.D.137mm | YR0253-op6 | |
| 0.75x, W.D.120mm | YR0253-op7 | |
| 2x, W.D.30mm | YR0253-op8 | |
| Adapter | Photo Adapter | YR0253-op9 |
| 0.5x C-Mount | YR0253-op10 | |
| 1.0x C-Mount | YR0253-op11 | |
