Description

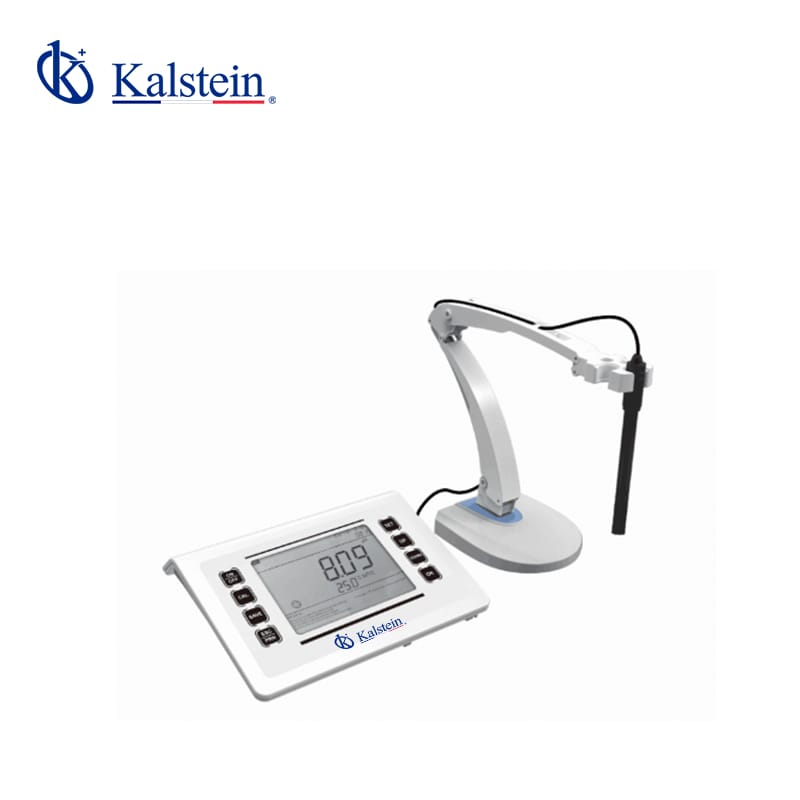

The YR01828 Benchtop Conductivity / TDS / Salinity / Resistivity Meter is an advanced analytical tool, designed to deliver precise measurements with user-friendly features. Equipped with a 7-inch colored capacitive touch screen, it offers a high resolution (1024*600) and exceptional sensitivity for enhanced user interaction. This smart device incorporates a built-in microprocessor chip, enabling intelligent functions like automatic calibration, automatic temperature compensation, data storage, clock display, and multiple connectivity options including USB and Bluetooth. With the capability to display smart electrode status, the YR01828 ensures accurate and reliable usage. Whether for laboratory or field applications, this instrument supports wireless printing and real-time data transfer, making it an essential tool for precise analytical tasks.
Market Price
The YR01828 Benchtop Meter falls within a competitive price range in the market, which typically extends from $500 to $800 USD. This range reflects the sophisticated features and accuracy levels that the meter offers. While the price may vary depending on the supplier, users can expect an investment that matches the tool’s value and functionality.
Frequently Asked Questions
Q1: Can the YR01828 connect to a PC?
A1: Yes, it can connect to a PC via USB and transfer data in real time.
Q2: How many data sets can the meter store?
A2: It can store up to 1000 sets of test data, which can be exported to a USB drive for easy access.
Advantages and Disadvantages
Advantages: The YR01828 offers high accuracy, a large storage capacity, and versatile connectivity options. Its smart display enhances usability and minimizes errors.
Disadvantages: Due to its advanced features, the meter may have a steeper learning curve for beginners or require user training.
Product Usage in the Field
The YR01828 is well-suited for diverse applications, including water quality testing in laboratories and industrial environments. Its automatic calibration and temperature compensation ensure accurate results in varying conditions. The meter’s portability and robust design make it ideal for fieldwork, allowing real-time data collection and analysis on-site.
Recommendations
To maximize the YR01828’s performance, regular calibration and maintenance of the electrodes are recommended. Cleaning the touch screen and connectors will also ensure consistent functionality. Additionally, take advantage of the wireless features and explore connectivity with mobile devices for enhanced mobility.
Features
- 7-inch colored capacitive touch screen with high resolution and sensitivity
- Intelligent functions: automatic calibration, ATC, data storage, USB output
- Wireless Bluetooth printing and PC connection with real-time data transfer
- Storage capacity for 1000 sets of test data, compatible with Excel export
- Conductivity mode with auto-recognition of 25 buffers and multi-point calibration
Technical Specifications
Model | YR01828 |
Cond. Measuring Range | Conductivity: (0.00~20.00)μS/cm, (20.0~200.0)μS/cm, (200~2000)μS/cm, (2.00~20.00)mS/cm, (20.0~200.0)mS/cm, (200~2000)mS/cm (K=10) |
Resolution | 0.01/0.1/1μS/cm; 0.01/0.1mS/cm |
Accuracy | Electrode: ±0.5% FS, Meter: ±0.8% FS |
Temp. Compensation Range | (0 ~ 50)ºC, auto |
Electrode Constant | 0.1/0.5/1/5/10/50/100 cm-1 |
Reference Temp. | 25ºC, 20ºC, 18ºC |
Temp. Range | (-10 ~ 110)ºC |
Resolution | 0.1ºC |
Accuracy | 5 ~ 60ºC:±0.4ºC Others: ±0.8ºC |
Other Specifications | |
Display | 7-inch colored capacitive touch screen |
Data Storage | 1000 sets |
Power | 12V/1A |
Output | USB, RS232, Bluetooth |
Ambient Temp. | 15 ~ 30 ºC |
Ambient Humidity | ≤85% |
IP Grade | IP54 |
Dimensions/N.W. | 240×170×70mm/600g |
Shipping Size/G.W. | 470x430x85mm/2.6kg |
