Description
Compact and save the space
Light and easy to move
Automatically calculation by weight to the other parameters
With breathing mode PCV mode, achieve the breathing automatically
Features
- Assure the animal more comfortable
- With big animal bellow and small animal bellow
- Gas source pipeline take the high precious gas source, no leakage forever
- HD TFT Touch screen to make operation easy and simple
- Built-in battery to support more than two hours in case of power failure
- Matching with different brands of veterinary anesthesia machine
Technical Specifications

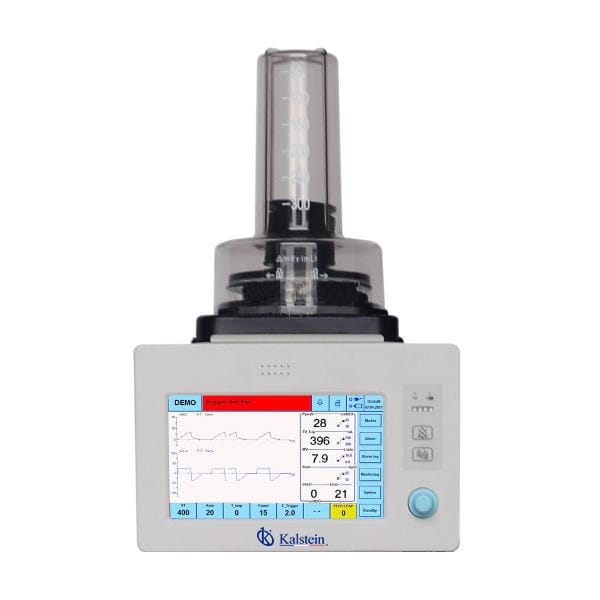

Model | YR06103 |
Display | 9-inch TFT touch screen |
Gas type | O2 or Air |
Inlet pressure | 280-600 kPa |
Max flow | ≤ 120 L / min |
Operating Mode | VCV, PCV, SPONT, Manual, Demo |
Waveform | Pressure, Flow-rate, Volume |
Loop | PV loop, PF loop, FV loop |
Safety Pressure | System pressure does not exceed 6 KPa |
Battery Type | Li-ion, work time more than 2 hours |
Tidal volume Range | 20 – 1500ml |
Respiratory rate Range | 1 ~ 150 bpm |
Inspiratory time Range | 0.1 ~ 12s |
Breathing ratio Range | 9.9:1 to 1:9.9 |
Percentage of inspiratory pause Range | 0 to 50% |
PEEP Range | OFF, 3 ~ 20 cmH2O |
Support Pressure Range | 0 ~ 60 cmH2O |
Inspiratory Pressure Range | 2 ~ 60 cmH2O |
Flow trigger Range | 0.5 ~ 20L/min |
Pressure Trigger Range | -1 ~ -20 cmH2O |
PSV Insp Termination Level | 25% |
Monitoring parameters | Inspiratory/Expiratory tidal volume Range:0 ~ 2500 mL |
Minute ventilation | Display Range: 0 ~ 99L/min, Using Range: 0 ~ 25L/min |
Spontaneous minute ventilation | Display Range: 0 ~ 99L/min, Using Range: 0 ~ 25L/min |
Pea/Mean airway pressure Range | 0 ~ 80 cmH2O |
FiO2(optional) Range | 15 to 100% |
