Description

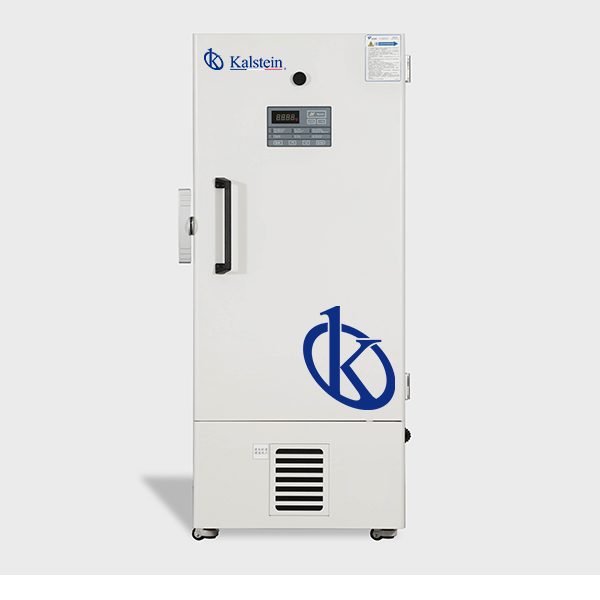

Ultra low temperature upright freezer -86℃ Digital display for Lab/Hospital 408L
Key Features
- Microprocessor-controlled system designed for controlled rage of -40ºC to -86ºC for cabinet space with 1ºC increment.
- Settable high temperature and low temperature alarms.
- Automatic clean-filter alarm and sensor error alert.
- Adjustable storage shelf height.
- Optional temperature recorder. storage racks and storage box
- Installation and Application
- Wide rage operating voltage system from 187V to 242V designed to allow units installed in areas with poor voltage condition.
- Suitable for 10ºC to 32ºCambient temperature
Reliability
- Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber.
- Specialized control system design for a well-balanced operation of cascade refrigeration system.
- Positive filed proven reliability record.
Safety
- Malfunction alarms including high and low temperature, power failure, sensor error, clean-filter, and extremely high ambient.
- Capable of producing two types of alarm outputs: audible buzzer and visible flashing light.
- Door open feature standard and USB port for temperature date downloading standard on upright models.
- Remote alarm contacts.
Energy saving
- Unique door seal design for the minimum loss of cold temperature during a door opening.
- High performance VIP insulation panels to minimize cabinet heat gain and to improve temperature stability.
Model | YR05108 | |
Specificaitons
|
Shelf/drawer QTY | Stainless steel shelf/3 |
Cooling | Direct cooling | |
Defrost | Manual | |
Refrigerant | Mixed-gas | |
Power Consumption(kWh/24h) | 12 | |
Noise(db) | 50 | |
Ambient temperature(℃) | 10~32℃ | |
Temperature range(℃) | -40~-86℃ | |
Cooling system
|
Compressor brand/QTY | SECOP/1 |
Sensor | PTC | |
Temperature controller | Microprocessor | |
Display | Digital display | |
Power
|
Voltage/frequency(V/Hz) | 220/50Hz |
Power(W) | 890W | |
Current(A) | 4.6A | |
Material
|
Inside material | Stainless steel |
Outside material | Color sprayed steel | |
Insulation | PURF | |
Size
|
Capacity(L/cu.ft) | 408/14.40 |
NT./GT.(kg) | 234/291 | |
Exterior size(W*D*H)(mm) | 890*930*1945 | |
Interior size(W*D*H)(mm) | 606*575*1180 | |
Package size(W*D*H)(mm) | 955*955*2100 | |
CBM | 1.92 | |
20GP/40GP/40HQ | 12/24/24 | |
Frozen Racks
|
Racks | 16(5X4,4X4) |
Boxes (2 Inches) | 288 | |
Samples(2ml) | 28800 | |
Alarm
|
High/low temperature | Y |
Power failure | Y | |
Abnormal voltage | Y | |
Sensor error | Y | |
Filter screen check | Y | |
Thermostat failure | Y | |
Low battery | Y | |
Condenser clean | Y | |
High ambient temperature | Y | |
Door ajar | Y | |
Power failure backup system(alarm) | 72h | |
Accessories
|
Castor | Y |
Inside door | 2 | |
Test hole QTY/diameter | 1/25MM | |
USB port | Y | |
Chart recorder | / | |
Data logger | Optional | |
Remote alarm port | Y | |
Optional
|
CO2 back up system | Optional |
LN2 back up system | Optional | |
Other | Certification | ISO.CE |
