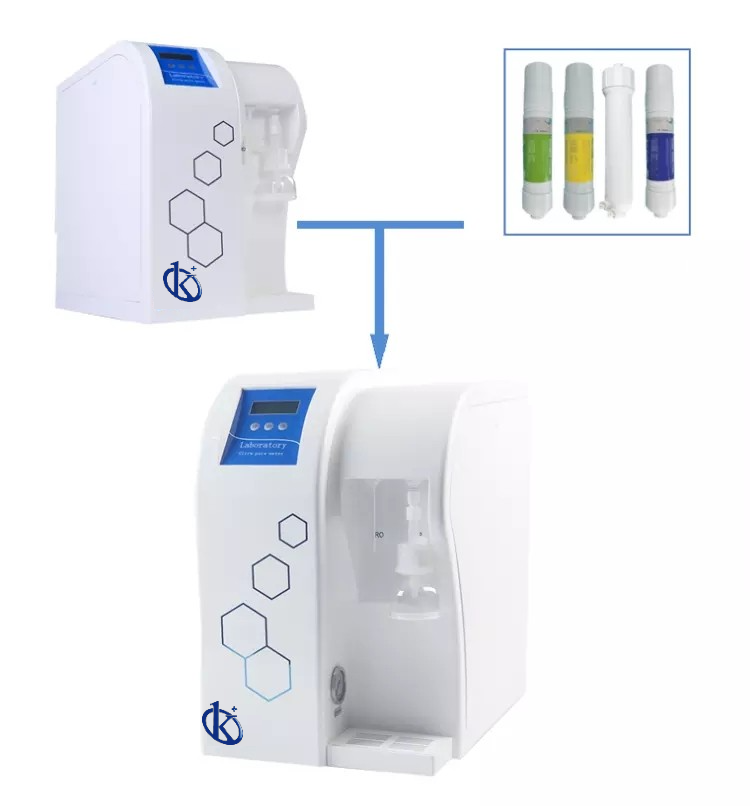

Ultrapure water System YR53/YR53-1

ManufacturerKalstein

Description

The Ultrapure Water System YR53/YR53-1 is a cutting-edge solution for producing high-quality ultrapure water suitable for various laboratory needs. Designed with an elegant and functional ABS plastic casing, this system ensures not only aesthetic appeal but also durability. It features an integrated water quality online monitoring system that provides instant readings of the produced water’s quality. With user-friendly operations, including a touch-key interface, replacing filter elements is a hassle-free, tool-free process. The model supports the integration of a mobile app for remote monitoring, enhancing the user experience significantly.

Market Price

The Ultrapure Water System YR53/YR53-1 is positioned competitively in the market. For similar high-performance products that offer the same level of water purification and technological integration, the price range typically falls between $3200 and $4000. This ensures that customers receive exceptional value for advanced water purification capabilities.

Frequently Asked Questions

What is the source water requirement for the system? The system requires urban tap water with an inlet pressure of 0.15-0.5 MPa and a water temperature between 5-40°C.

Can I monitor the water quality remotely? Yes, the system supports a WiFi expansion interface for mobile app remote monitoring (optional feature).

What types of water can the system produce? It provides both RO (Reverse Osmosis) and ultrapure water outputs.

Advantages and Disadvantages

Advantages: This system offers high desalination rates (95-99%), excellent resistivity, and comprehensive real-time monitoring. It’s ideal for labs requiring Type 1 water. The tool-less filter replacement and digital interface enhance user experience.

Disadvantages: Initial installation and setup may require technical assistance for optimal performance. Some features are optional, potentially increasing the cost.

Product Usage in the Field

The Ultrapure Water System YR53/YR53-1 is invaluable in laboratories conducting atomic absorption/emission spectroscopy, mass spectrometry, and TOC detection. Its outstanding ultrapure water ensures precise and reliable analytical results. Moreover, its intuitive design supports seamless integration into any lab workflow.

Recommendations

To maximize performance, ensure regular maintenance and timely consumable replacements using genuine parts. Utilize the remote monitoring app to keep track of water quality and system status, thus preventing unexpected issues.

Features

  • ABS plastic with a sleek curve design and removable drain tank
  • Korean-style quick-inserted filter columns for easy maintenance
  • Online water quality monitoring system
  • Portable TDS pen included
  • Two types of water quality at your fingertips
  • Tool-free filter element replacement
  • Optional WiFi and mobile app integration
  • User-friendly Chinese LCD display
  • Four user passwords and factory password protection
  • Complete RO and ultrapure water systems
  • Comprehensive fault alarm functions
  • Power-efficient 24VDC power supply

Technical Specifications

Model YR53 YR53-1
Inlet water source Urban tap water, inlet water pressure: 0.15-0.5MPa, water temperature 5-40°C
Water flow speed 1.5-2L/min
Water making speed 15 L/H
2 water outlets RO water and UP water
RO water quality Desalination rate as high as 95-99% (with new RO membrane)
UP water quality Resistivity 18.25MΩ.cm@25°C(ASTM type I water), TOC: <3ppb, particles (>0.22um)<1/ml, microorganism<1cfu/ml Resistivity 18.25MΩ.cm@25°C, TOC: <3ppb, particles (>0.22um)<1/ml, microorganism<1cfu/ml,pyrogen<0.001EU/ml, RNases≤0.01ng/ml, DNases≤3Pg/ul
Power Source 220V/50Hz; 48-72W
Dimensions(mm) L x W x H:31.2 x 47.5 x 47.5cm
Standard configuration: Main unit (including 1 set of consumable filters) +12L pressure tank + accessory package

Additional information

Weight 45 kg
Dimensions 55 × 63 × 68 cm
Model

YR53, YR53-1
